Aluminium Window & Door Hardware Systems

Systems, components and model references

Browse aluminium window fittings and door hardware systems for tilt & turn, casement, top-hung, parallel-opening, lift-slide and casement door applications. Confirm the profile, opening type and load reference before comparing models.

Window systemsDoor systemsComponents
Browse product familiesSend profile information
Not sure which route to start with? Choose by system
ALUMINIUM SYSTEMStart with the opening type
Aluminium tilt and turn window hardware system
01

System firstChoose the system before comparing individual components.

01 · QUICK SELECTION

Narrow the product direction in four steps

Start with the application and opening type, then use profile and technical information to confirm the model direction.

01

Window or door

Window or door

02

Opening type

Opening type

03

Profile & load

Profile & load

04

Model or drawing

Model or drawing

02 · PRODUCT CATALOGUE

Browse product families, then compare models

Review window, door and component models in one place before opening the relevant detail page.

WINDOW SYSTEM

Tilt and turn window hardware

JNPX800, JNPX700 and JNPX400 are available in long- and short-rod configurations. Compare the operating angle and load reference before opening a model page.

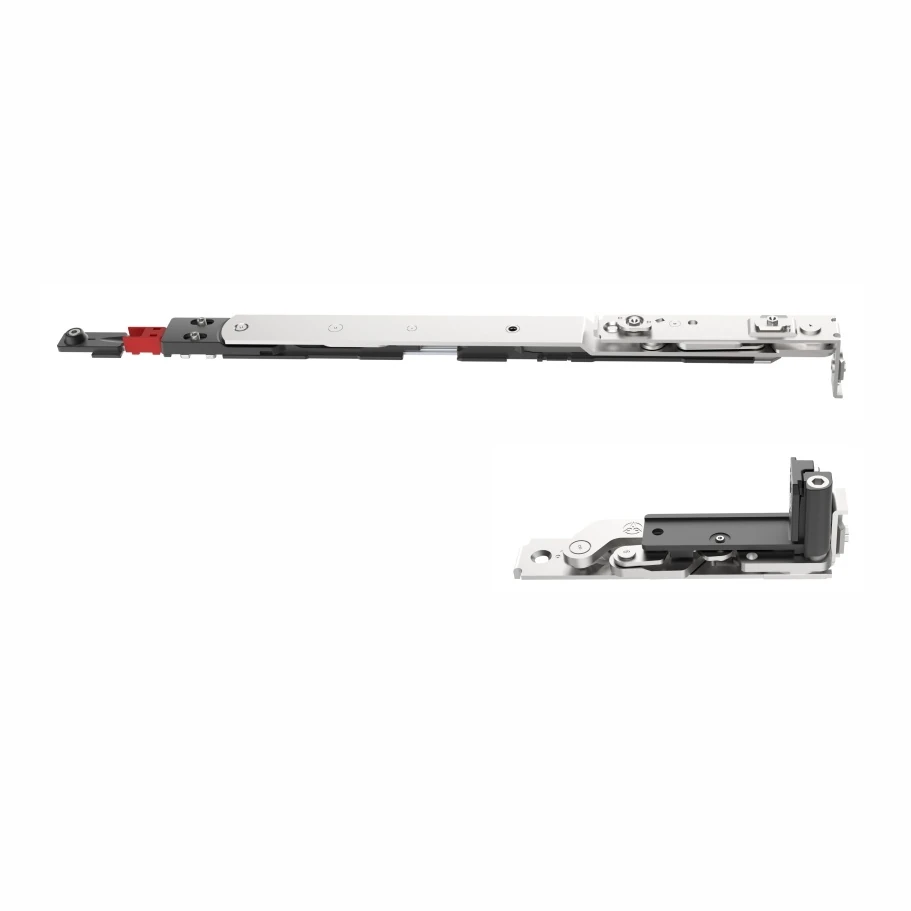

JNPX800 Long connecting rod tilt and turn window hardware

MODEL

JNPX800
  • Connecting rod: Long
  • Opening angle: 180°
View model details

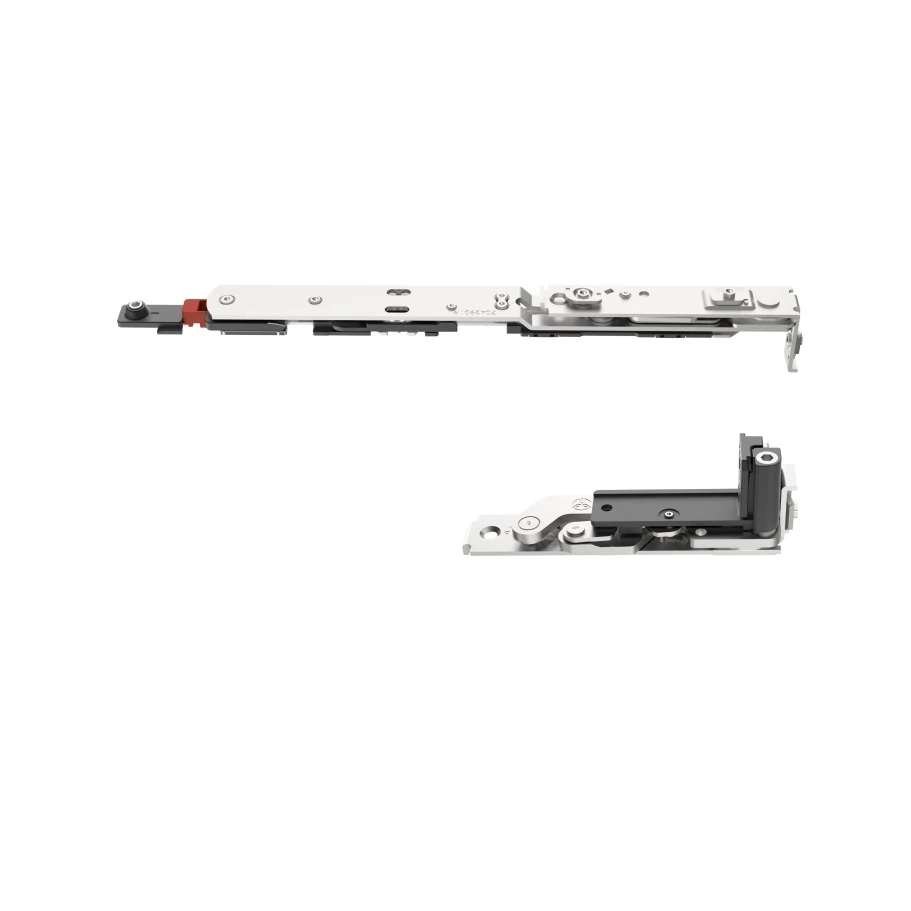

JNPX800 Short connecting rod tilt and turn window hardware

MODEL

JNPX800
  • Connecting rod: Short
  • Opening angle: 180°
View model details

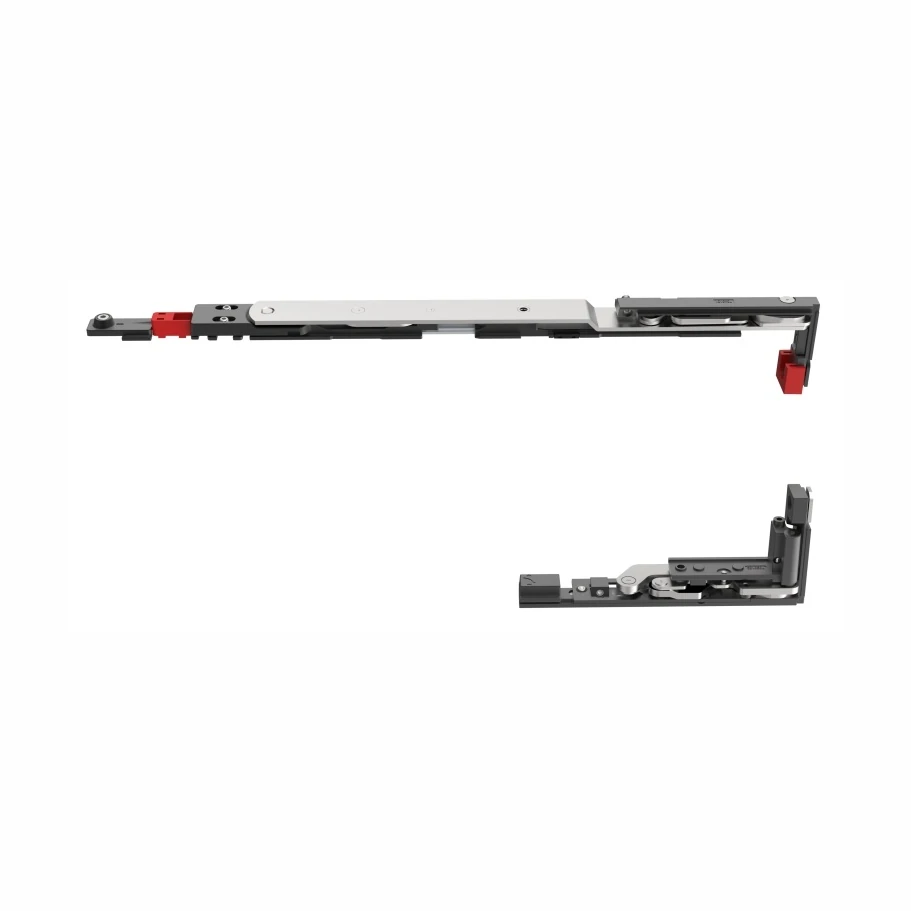

JNPX700 Long connecting rod tilt and turn window hardware

MODEL

JNPX700
  • Connecting rod: Long
  • Opening / load: 90° · 110 kg; 180° · 80 kg
View model details

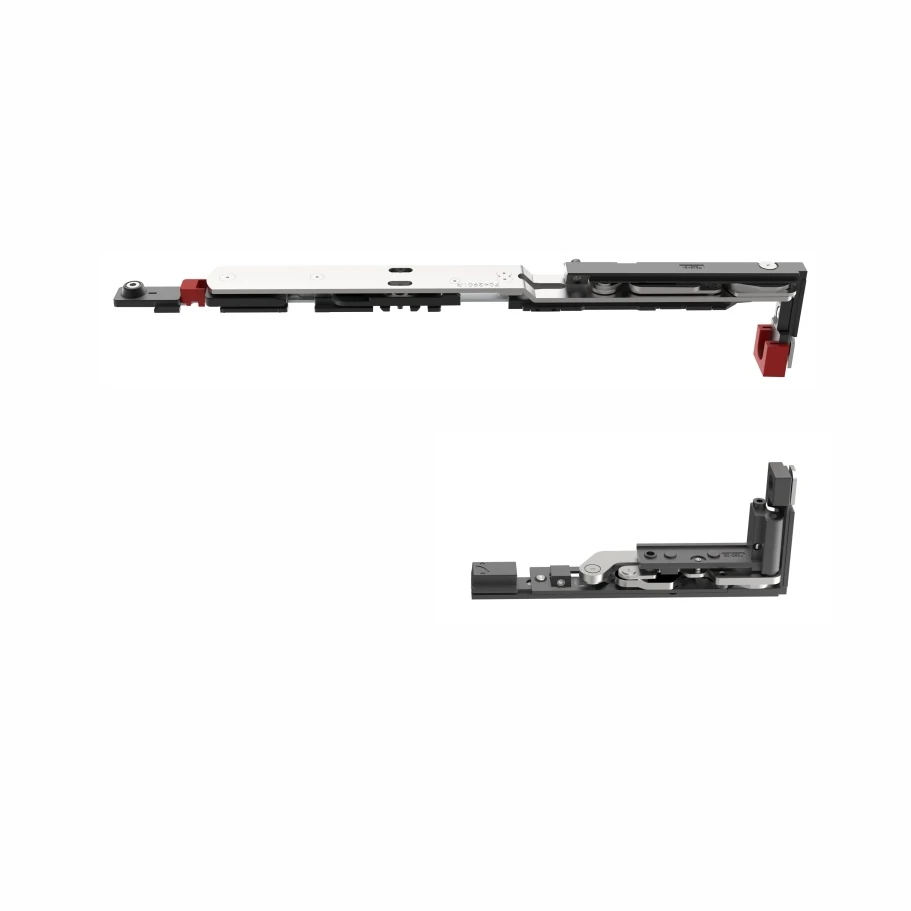

JNPX700 Short connecting rod tilt and turn window hardware

MODEL

JNPX700
  • Connecting rod: Short
  • Opening / load: 90° · 110 kg; 180° · 100 kg
View model details

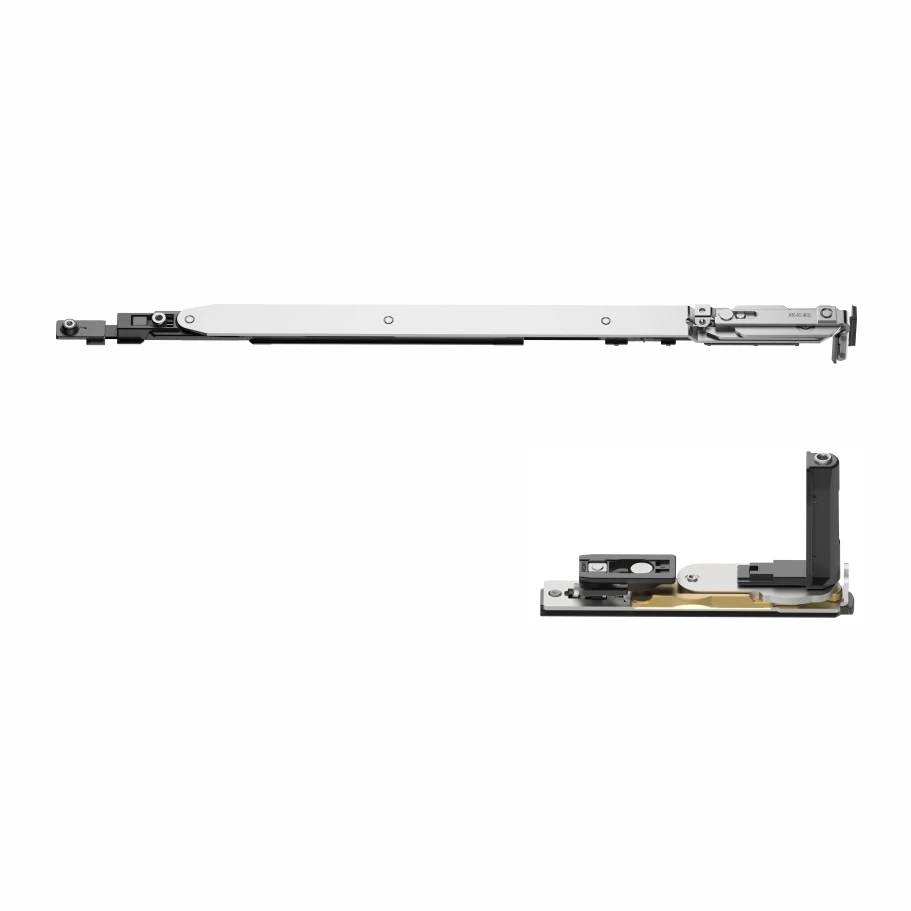

JNPX400 Long connecting rod tilt and turn window hardware

MODEL

JNPX400
  • Connecting rod: Long
  • Opening / load: 90° · 170 kg
View model details

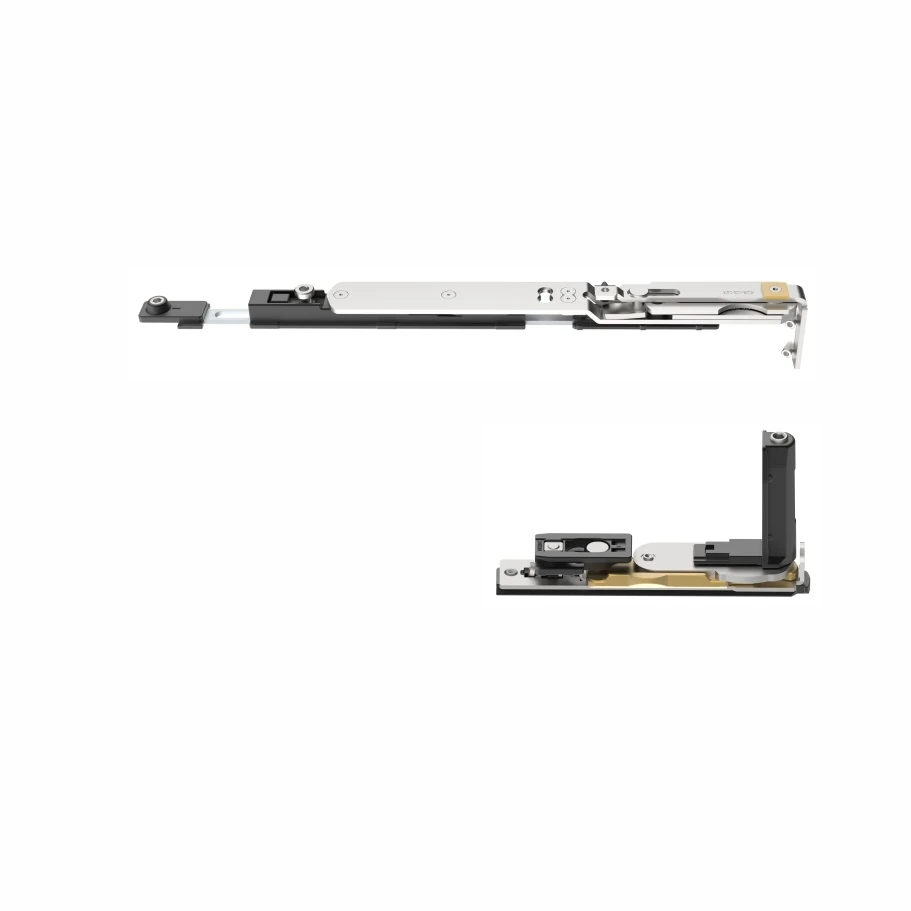

JNPX400 Short connecting rod tilt and turn window hardware

MODEL

JNPX400
  • Connecting rod: Short
  • Opening / load: 90° · 170 kg
View model details

03 · COMPATIBILITY CHECK

Information for a hardware matching review

Share these five details to review product configuration, technical information and quotation scope.

01

Profile & groove

Share a section drawing, groove dimensions or clear reference photo.
02

Opening type

Confirm inward, outward, tilt, top-hung or sliding operation.
03

Sash / door weight

Include width, height and estimated operating weight.
04

Handing & finish

Confirm left or right handing, colour and finish requirements.
05

Quantity & destination

Use these details to review the configuration and quotation scope.

Have a profile drawing but no model?Send the profile drawing or existing hardware photo to start with the relevant product direction.

Send project information

04 · TECHNICAL RESOURCES

Technical information for selection

Open product specifications, catalogue references and matching support from the relevant product direction.

SPEC

MODEL SPECIFICATIONS

Technical specifications

Open the technical drawing route for model dimensions, configuration and installation information.
PDF

CATALOGUE REQUEST

Product catalogue

Review the catalogue route for aluminium window and door hardware references.
BOX

SAMPLE REQUEST

Sample service

Send the model, quantity and destination to discuss samples.

05 · SELECTION FAQ

Compatibility and selection questions

Window and door hardware is selected as a system. These questions cover models, drawings and project information.

Still unsure? Send your profile drawing.
01How can I check compatibility with an aluminium profile?

Share the profile section or groove, opening type, sash or door dimensions and operating weight. Product appearance alone is not enough to confirm compatibility.

02Can I enquire about one component from a system?

Yes. The spindle, hole pattern, locking points, groove and transmission relationship still need to be checked against the existing system.

03What information is useful before quotation?

Provide the profile or groove reference, opening type, sash or door size and weight, handing, finish, quantity and destination. Include a model or drawing when available.

04How do I choose between JNPX800, JNPX700 and JNPX400?

Compare the operating angle and load reference first, then select the long- or short-rod configuration for the sash size and connection arrangement.

06 · REQUEST PRODUCT MATCHING

Request product matching

Tell us about the window or door system, profile and available dimensions or drawings. We will review the product direction, model references and quotation scope.

  • Profile section or groove
  • Opening type and sash or door weight
  • Quantity and destination

PROJECT INFORMATION

Start a matching request

Aluminium window and door hardware
