SHJ80 concealed-hinge single-leaf swing door system for 120 kg casement doors
The SHJ80 concealed-hinge door system is shown for European 20 groove profiles, with a 120 kg load reference, 105° opening angle and 1200 × 2500 mm sash groove reference.
AT A GLANCE
SHJ80 at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
System
Single-leaf swing doorLoad capacity
120 kgConfiguration
Concealed hinge and door closerTECHNICAL DRAWING
Complete technical drawing

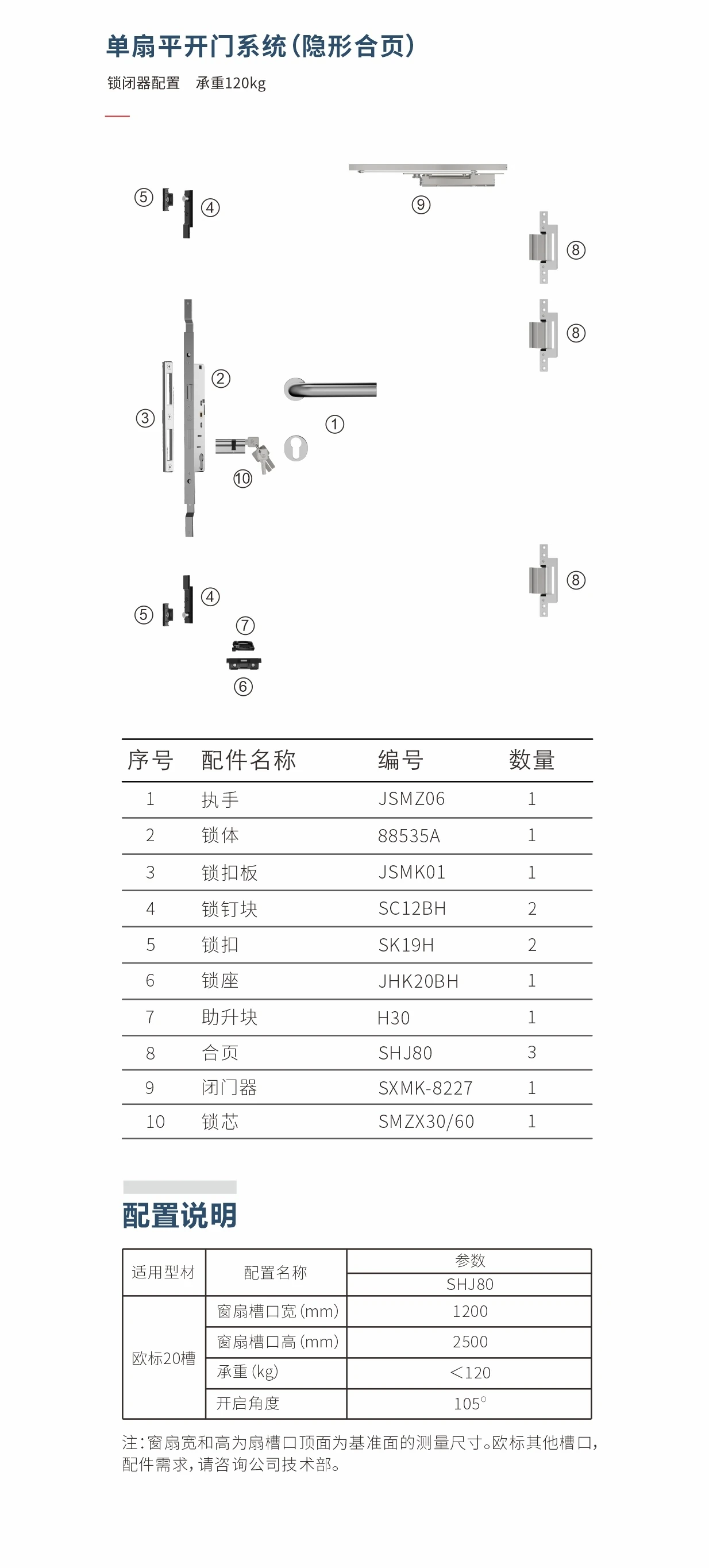

The complete factory drawing shows the SHJ80 component set, European 20 groove reference, sash groove dimensions, load capacity and opening angle.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for SHJ80.
Model
SHJ80
System type
Single-leaf swing door system with concealed hinge
Configuration
Door closer configuration
Profile reference
European 20 groove
Sash groove size
Width 1200 mm; height 2500 mm
Load capacity
Less than 120 kg
Opening angle
105°
CONFIGURATION
What to confirm
Use these references to select a compatible SHJ80 hardware set.
Door profile
Confirm European 20 groove or provide the profile section
Door size & weight
Confirm sash groove size and door leaf weight
Door closer layout
Confirm the required concealed hinge and door closer arrangement
Quantity & destination
Required quantity and delivery country
REQUEST MATCHING
Match SHJ80 to your window system
Send a SHJ80 reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
