JNC810INWARD CASEMENT
MODEL

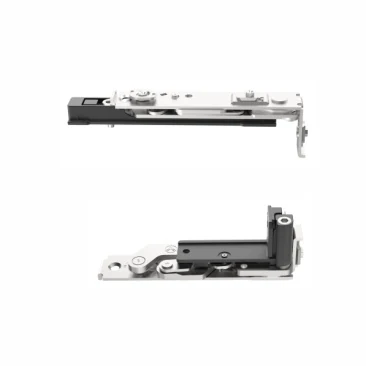

JNC810 inward-opening casement system for inward casement windows
A concealed inward-opening casement window configuration with a square steel handle and anti-theft I-shaped locking point, shown with an 180° opening and 80 kg load reference.
AT A GLANCE
JNC810 at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
System
Inward-opening casementConfiguration
Square steel handle · I-shaped locking pointOpening
180°Load capacity
80 kgTECHNICAL DRAWING

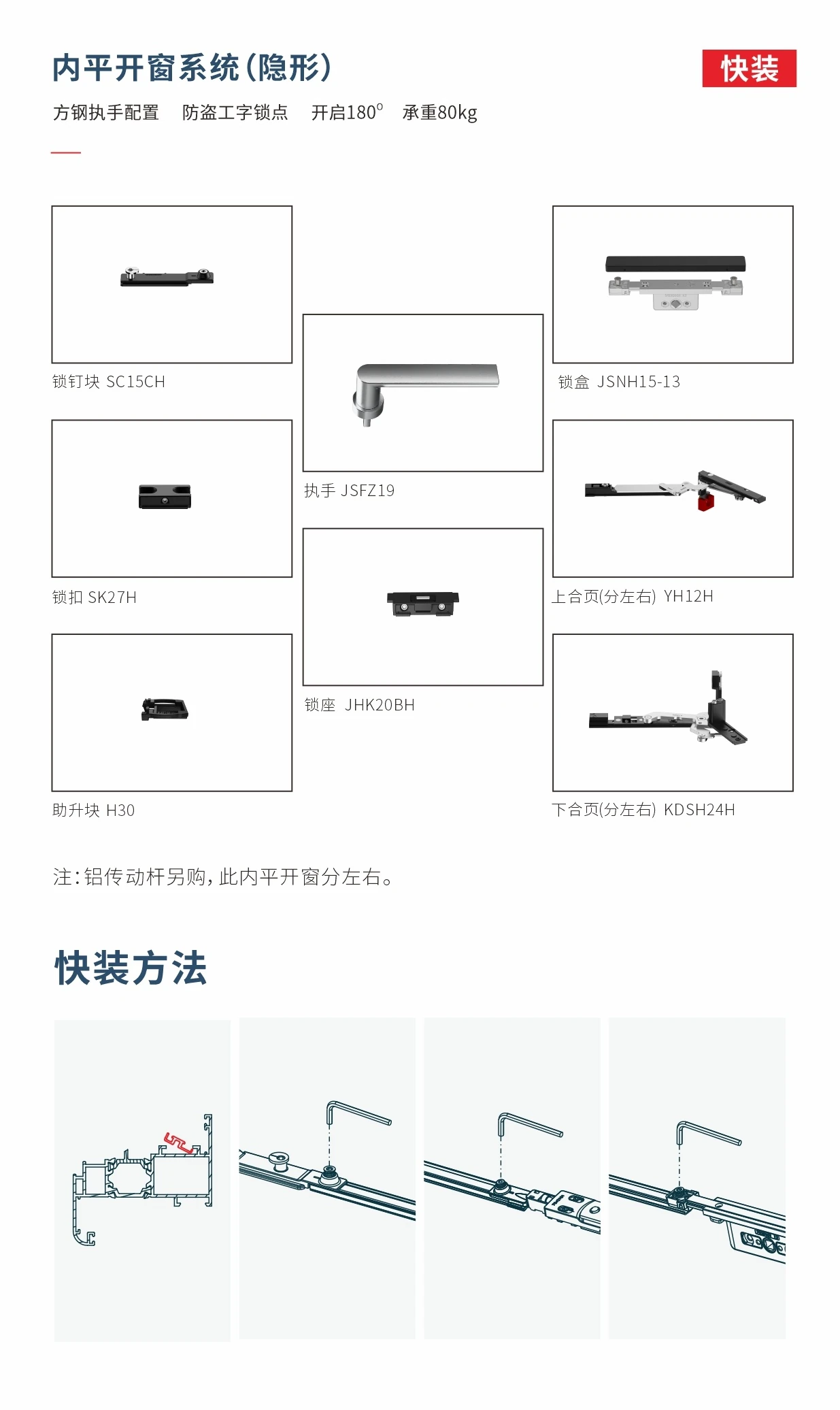

Complete technical drawing
The complete factory drawing shows the JNC810 system configuration, component list and installation steps.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for JNC810.
Model
JNC810
System type
Inward-opening casement window system (concealed)）
Handle configuration
Square steel handle
Locking point
Anti-theft I-shaped locking point
Opening reference
180° opening
Load capacity
80 kg
Drawing reference
Factory system and installation drawing
CONFIGURATION
What to confirm
Use these references to select a compatible JNC810 hardware set.
Window hand
Confirm left- or right-handed configuration
Profile & groove
Profile section or groove drawing
Existing hardware
Handle, lock parts and related components
Quantity & destination
Required quantity and delivery country
REQUEST MATCHING
Match JNC810 to your window system
Send a JNC810 reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
