Model
JNPX400TILT & TURN
MODEL
JNPX400 short tie rod for tilt & turn windows
A short tie rod configuration for aluminium tilt & turn windows, with the 170 kg opening reference shown in the original factory drawing and selected according to the profile, sash size and sash weight.
AT A GLANCE
JNPX400 at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Component
Short tie rodApplication
Tilt & turn windowOpening reference
90° drawing referenceTilt dimension
125 mm drawing referenceLoad capacity
170 kg at 90°TECHNICAL DRAWING

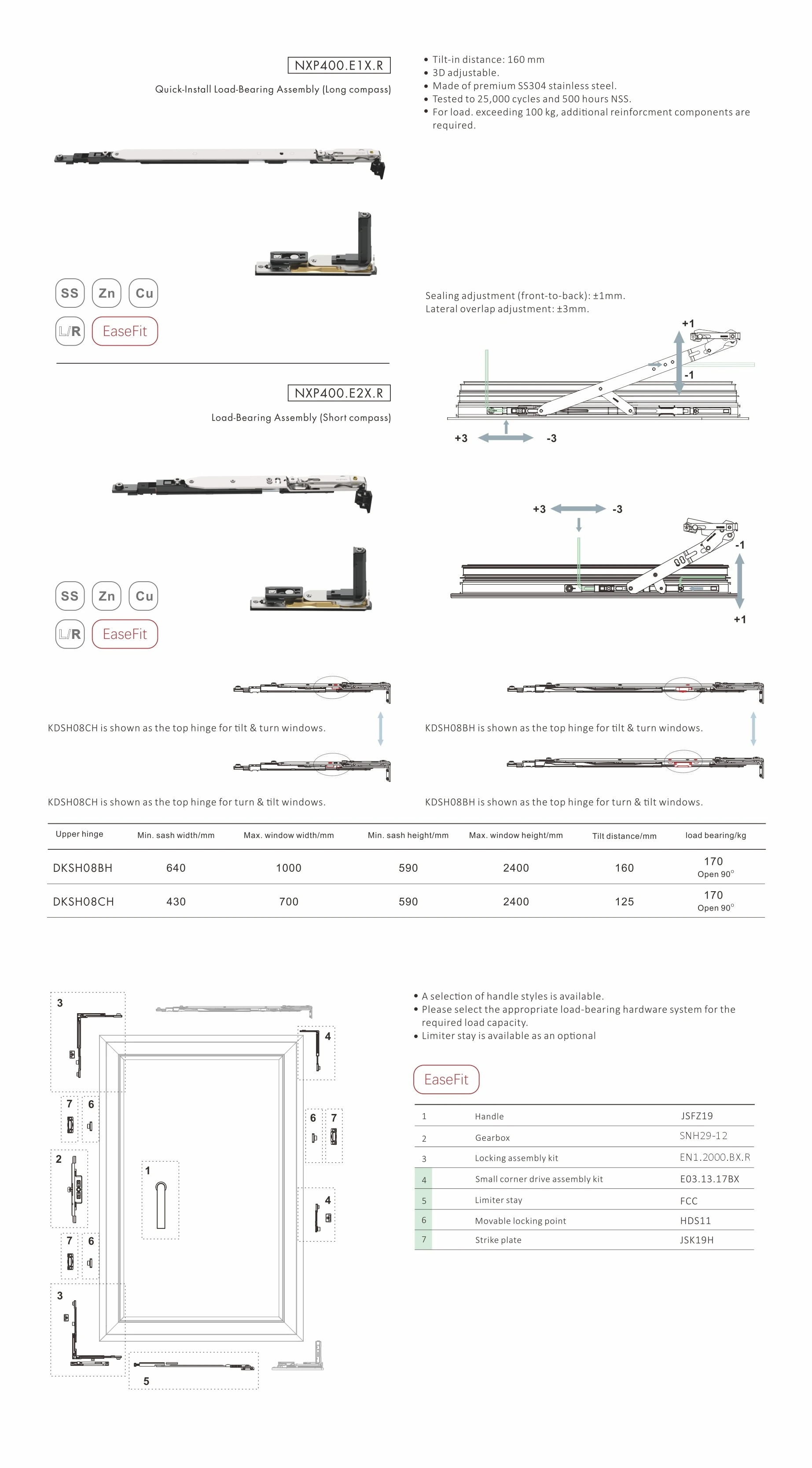

Complete technical drawing
The complete factory drawing shows the JNPX400 short tie rod, adjustment references, sash size range and load references.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for JNPX400.
Model
JNPX400
Product type
Short tie rod
Application
Aluminium tilt & turn windows
Drawing model references
NXP400.E1X.R / NXP400.E2X.R
Opening reference
90° opening reference
Adjustment reference
Front/rear ±1 mm; left/right ±3 mm
Tilt dimension
125 mm for the short-compass reference
Sash size
Min. width 640 mm or 430 mm; max. width 1000 mm or 700 mm; min. height 590 mm; max. height 2400 mm
Load capacity
170 kg at 90°
CONFIGURATION
What to confirm
Use these references to select a compatible JNPX400 hardware set.
Profile & groove
Profile section or groove drawing
Sash dimensions & weight
Sash width, height and estimated weight
Existing hardware
Handle, gearbox and related parts
Quantity & destination
Required quantity and delivery country
REQUEST MATCHING
Match JNPX400 to your window system
Send a JNPX400 reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
