Official configuration 225INTEGRATED SCREEN
MODEL
I-shaped locking point · 25 kg integrated screen configuration for integrated window-screen systems
Official configuration 225 combines an anti-theft I-shaped locking point with a 25 kg drawing reference for an integrated window-screen system.
AT A GLANCE
I-shaped locking point · 25 kg at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Locking point
Anti-theft I-shaped locking pointLoad reference
25 kgApplication
Integrated window-screen hardwareTECHNICAL DRAWING

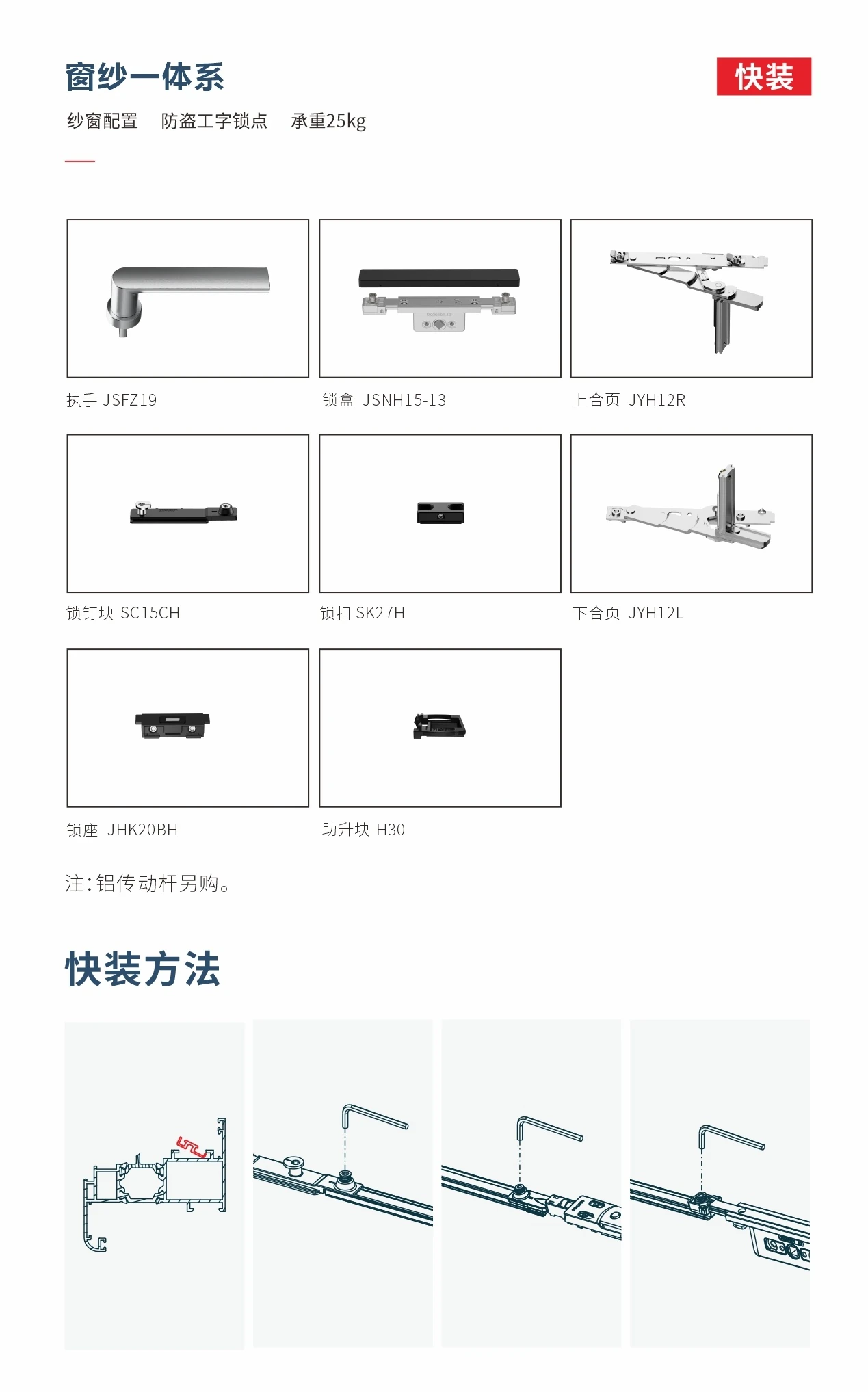

Complete technical drawing
The original factory drawing shows the component set and quick-install reference for configuration 225.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for I-shaped locking point · 25 kg.
Configuration
Official screen configuration 225
Locking point
Anti-theft I-shaped locking point
Load reference
25 kg drawing reference
System type
Integrated window-screen hardware for aluminium windows
Drawing reference
Original factory component and installation drawing
CONFIGURATION
What to confirm
Use these references to select a compatible I-shaped locking point · 25 kg hardware set.
Profile & groove
Confirm the profile section and groove against the original drawing
Sash size & load
Confirm sash dimensions and the 25 kg load reference
Screen arrangement
Confirm the integrated screen layout and operating direction
Quantity & destination
Required quantity and delivery country
REQUEST MATCHING
Match I-shaped locking point · 25 kg to your window system
Send a I-shaped locking point · 25 kg reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
