LOCK BOX
MODEL
SMZC07 lock box with 206 mm cover
Drawing dimension L: 15 / 20 / 25 / 30 mm
- Cover length
- 206 mm
- Model size (L)
- 15 / 20 / 25 / 30 mm

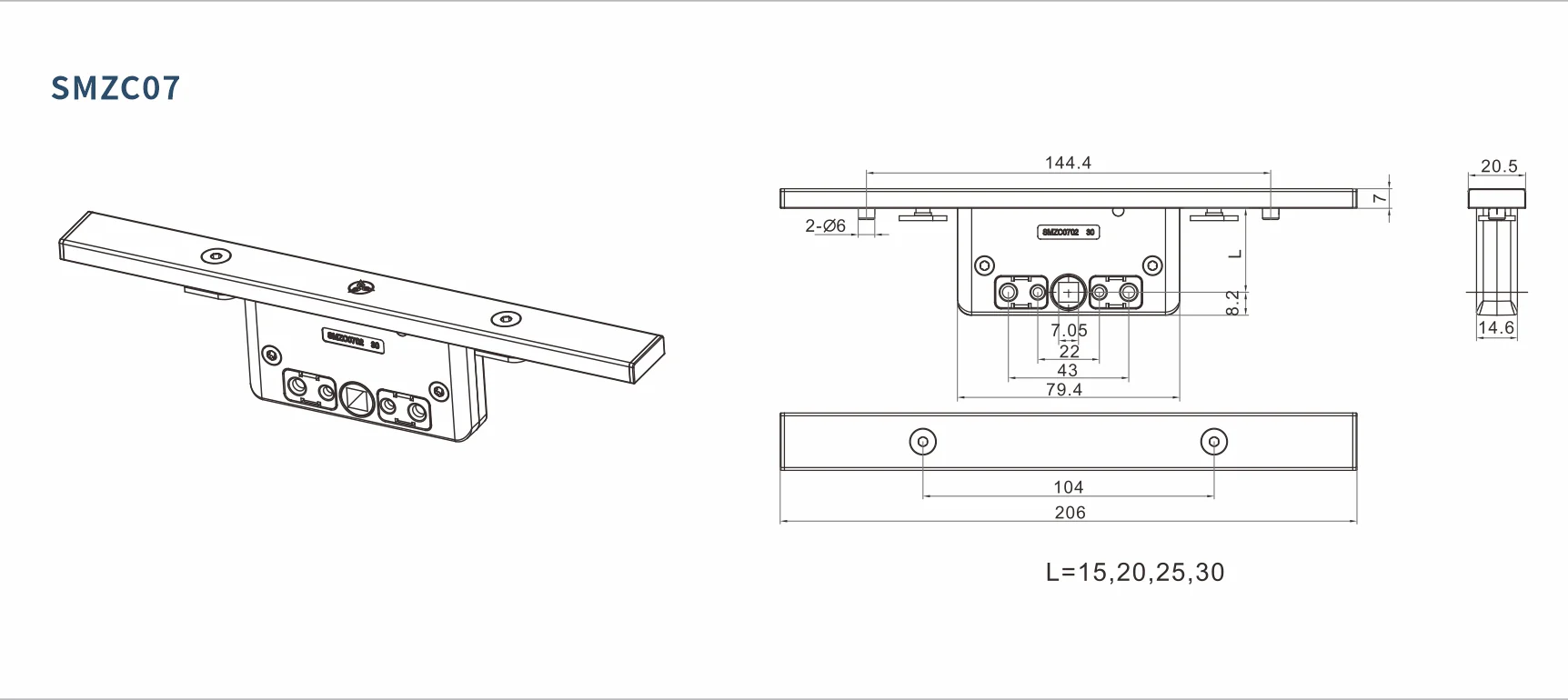

TECHNICAL DRAWING
Complete technical drawing
Dimensions, installation hole positions and model options are shown in the original drawing.
SPECIFICATIONS
Model specifications
Dimensions follow the original technical drawing.
- Model dimension (L)
- 15 / 20 / 25 / 30 mm
- Cover length
- 206 mm
- Cover profile
- 20.5 × 7 mm
- Lock box body
- 79.4 mm
- Lock box depth
- 14.6 mm
SPECIFICATION REQUEST
Request SMZC07 specifications
Share the profile drawing, required model size and quantity for a technical specification request.
