120 Lift-slide door systemLIFT-SLIDE
MODEL
120 Lift-slide door system for 250 kg lift-slide doors
The 120 lift-slide system is specified for aluminium doors up to the 250 kg load class, with profile dimensions, door layouts and middle roller references shown in the factory drawing.
AT A GLANCE
120 at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Load capacity
250 kgDoor layout
Single, double or multi-panel optionsMiddle roller
For doors over 200 kgTECHNICAL DRAWING
Complete technical drawing

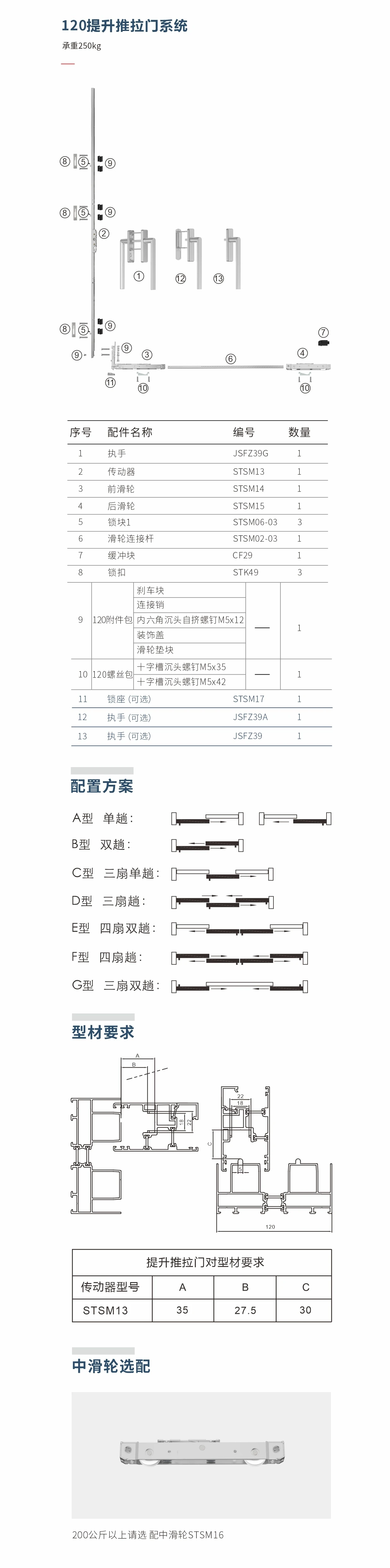

The complete factory drawing shows the 120 component set, door layout options, profile requirements and middle roller reference.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for 120.
System
120 Lift-slide door system
Load capacity
250 kg
Transmission profile
STSM13
Profile dimensions
A 35; B 27.5; C 30
Door layout
Single-leaf, double-leaf and multi-panel layouts shown in the factory drawing
Middle roller
Select STSM16 for doors over 200 kg
CONFIGURATION
What to confirm
Use these references to select a compatible 120 hardware set.
Profile & section
Confirm the aluminium profile dimensions A, B and C
Door weight
Confirm the door leaf weight before selecting the 250 kg system
Door layout
Select the required single, double or multi-panel configuration
Door weight & roller
For doors over 200 kg, confirm the middle roller option
REQUEST MATCHING
Match 120 to your window system
Send a 120 reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
