Model
STD06ASTRIP LOCKS
MODEL
STD06A strip lock for aluminium doors and windows
STD06A is a strip lock with a double-sided, keyed configuration for aluminium door and window systems. The catalogue profile range is K 14–17.5 and H 18–30 mm.
AT A GLANCE
STD06A at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Handle configuration
Double-sided, keyedProfile range

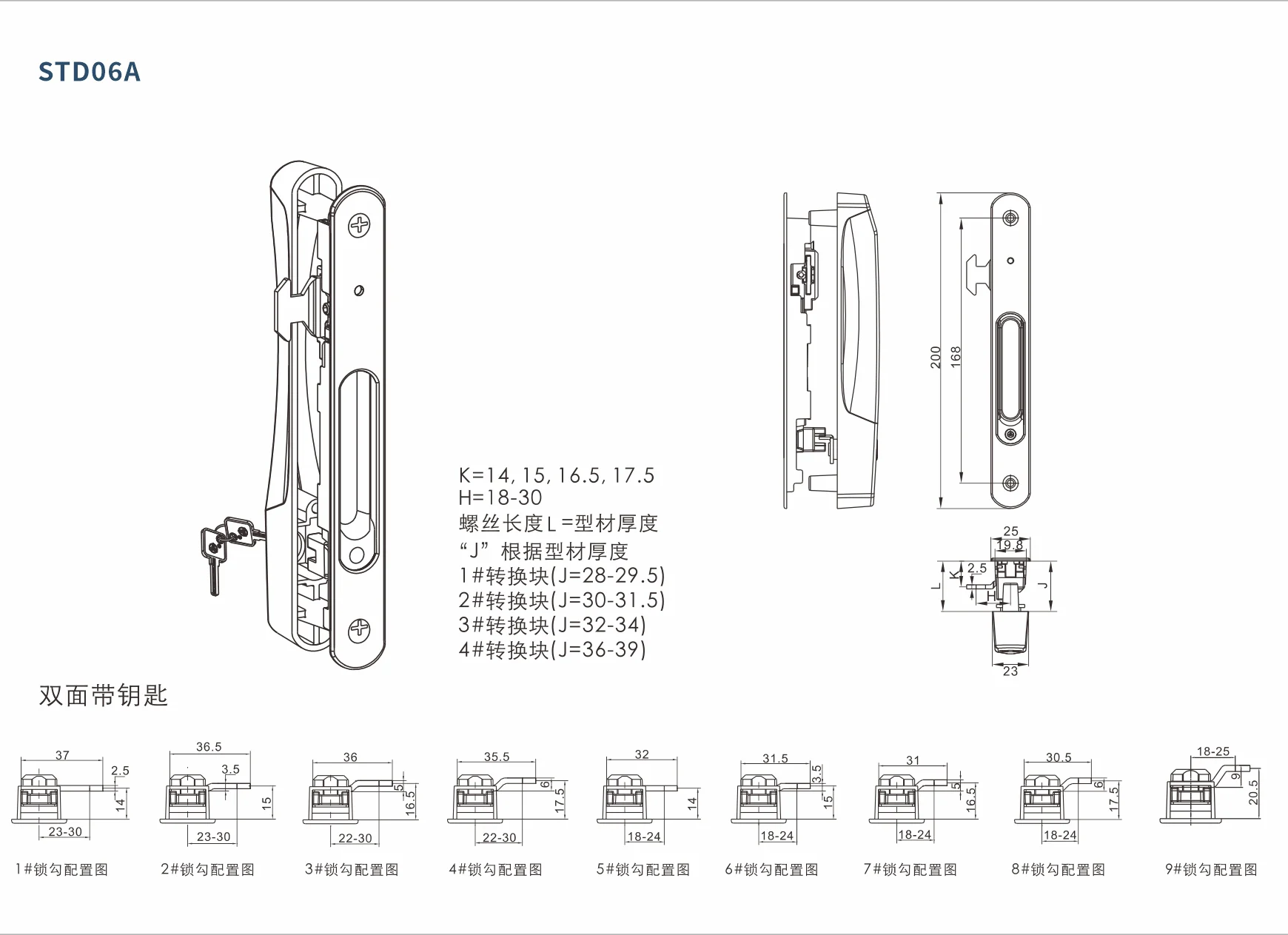

K 14–17.5; H 18–30 mmTECHNICAL DRAWING
Complete technical drawing
The catalogue image identifies the strip-lock model and its visible configuration. Complete installation dimensions and locking-point details can be supplied with the matched door or window system.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for STD06A.
Model
STD06A
Component
strip lock
Handle configuration
Double-sided, keyed
Profile range
K 14–17.5; H 18–30 mm
CONFIGURATION
What to confirm
Use these references to select a compatible STD06A hardware set.
Profile & groove
Provide the profile section and groove dimensions for the strip-lock interface
Handle or plate
Double-sided, keyed
Locking layout
Confirm the required locking points and transmission layout
Finish & quantity
State finish, required quantity and destination country
REQUEST MATCHING
Match STD06A to your window system
Send a STD06A reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
