Configuration
Fork handle · I-shaped locking pointOUTWARD CASEMENT
MODEL
Fork handle + I-shaped locking point outward casement system for outward casement windows
The official configuration combines a fork handle with an anti-theft I-shaped locking point and a 60 kg drawing reference.
AT A GLANCE
Fork handle + I-shaped locking point at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
System
Outward-opening casementLoad reference
60 kgSource configuration
27TECHNICAL DRAWING
Complete technical drawing

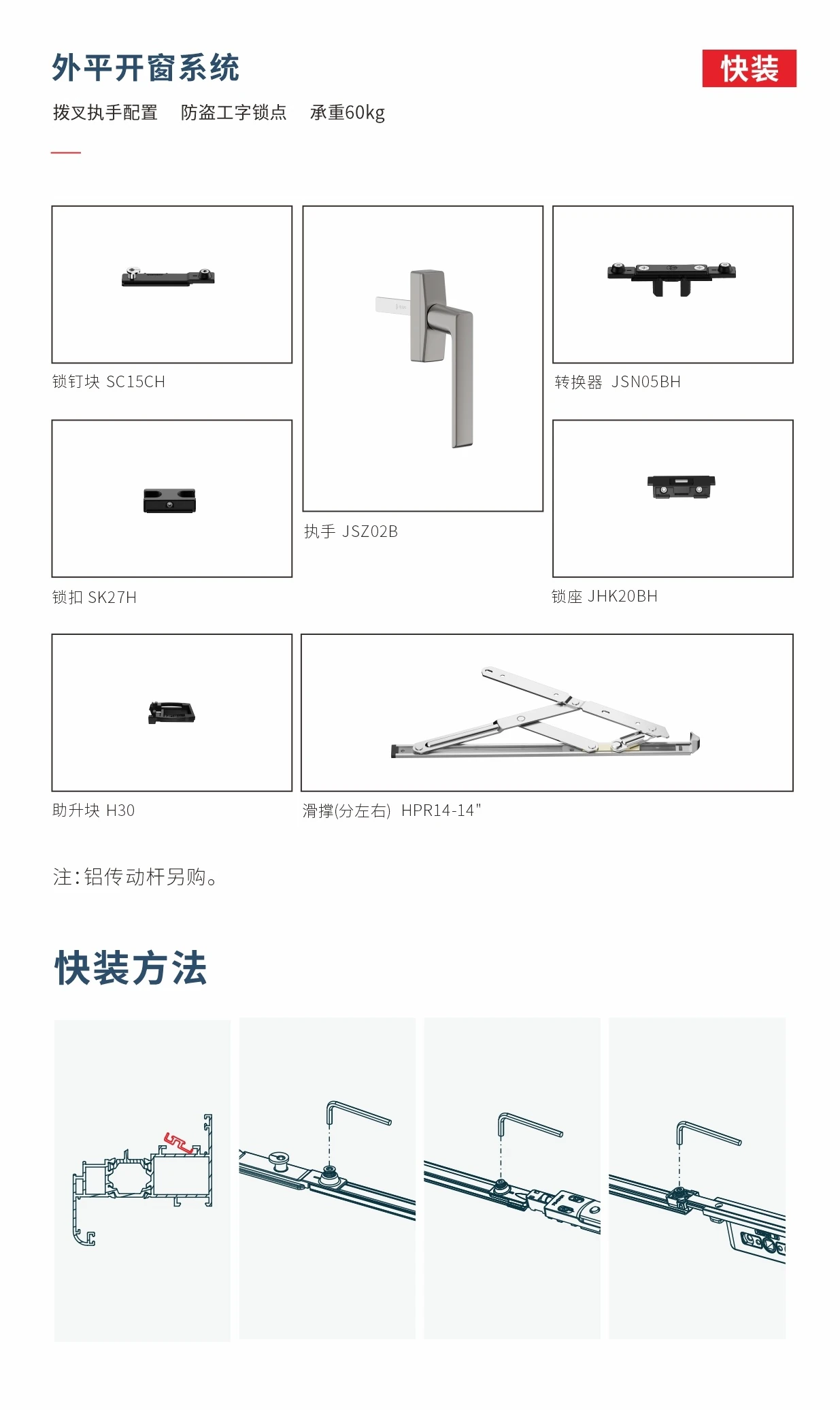

The original factory drawing shows the components and quick-install reference for official configuration 27.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for Fork handle + I-shaped locking point.
Configuration
Official outward casement configuration 27
Handle configuration
Fork handle
Locking point
Anti-theft I-shaped locking point
Load reference
60 kg drawing reference
Drawing reference
Original factory system and installation drawing
CONFIGURATION
What to confirm
Use these references to select a compatible Fork handle + I-shaped locking point hardware set.
Profile & groove
Confirm the profile section and groove against the original drawing
Sash size & load
Confirm sash dimensions and the 60 kg load reference
Opening direction
Confirm left- or right-handed outward opening
Quantity & destination
Required quantity and delivery country
REQUEST MATCHING
Match Fork handle + I-shaped locking point to your window system
Send a Fork handle + I-shaped locking point reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
