Square steel handle · ball locking pointINWARD CASEMENT
MODEL
Square steel handle + ball locking point inward-opening casement system for inward casement windows
An official inward casement configuration with a square steel handle, ball locking point, 180° opening reference and 80 kg load reference.
AT A GLANCE
Square steel handle + ball locking point at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
System
Inward-opening casementOpening
180°Load reference
80 kgTECHNICAL DRAWING
Complete technical drawing

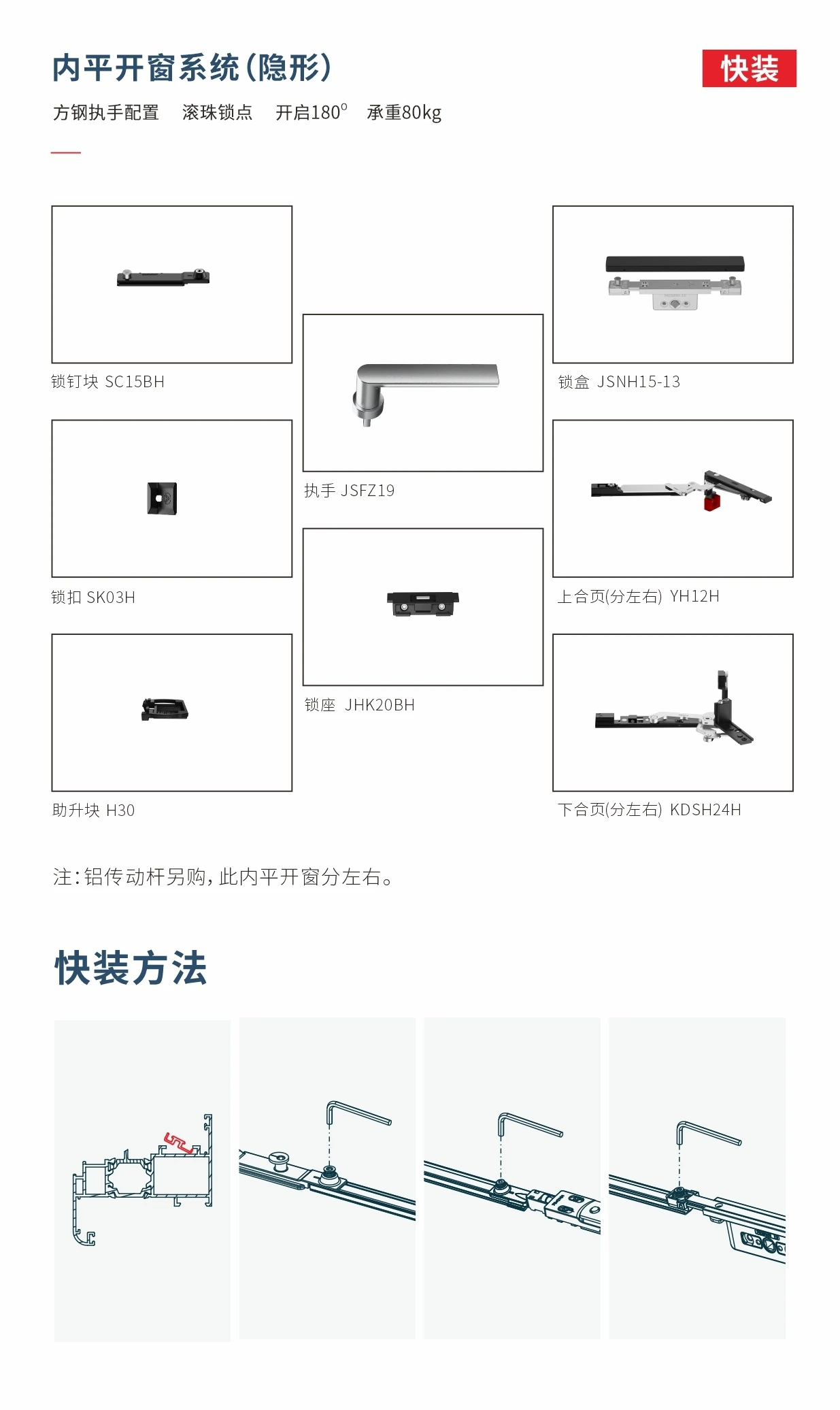

The original factory drawing shows the component configuration and installation reference for official configuration 37.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for Square steel handle + ball locking point.
Configuration
Official inward casement configuration 37
Handle configuration
Square steel handle
Locking point
Ball locking point
Opening reference
180° opening
Load reference
80 kg drawing reference
Drawing reference
Original factory system and installation drawing
CONFIGURATION
What to confirm
Use these references to select a compatible Square steel handle + ball locking point hardware set.
Window hand
Confirm left- or right-handed configuration
Profile & groove
Confirm the profile section and groove against the original drawing
Existing hardware
Confirm the handle, locking point and related components
Quantity & destination
Required quantity and delivery country
REQUEST MATCHING
Match Square steel handle + ball locking point to your window system
Send a Square steel handle + ball locking point reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
