LOCK BOXSMZC08 90° transmission lock box

MODEL

SMZC08 90° transmission lock box

90° transmission

Transmission angle
90°
Cover length
204 mm

Handle pairing: JSFZ19–JSFZ26 without base

View technical drawingRequest specifications

TECHNICAL DRAWING

Complete technical drawing

Dimensions, installation hole positions and model options are shown in the original drawing.

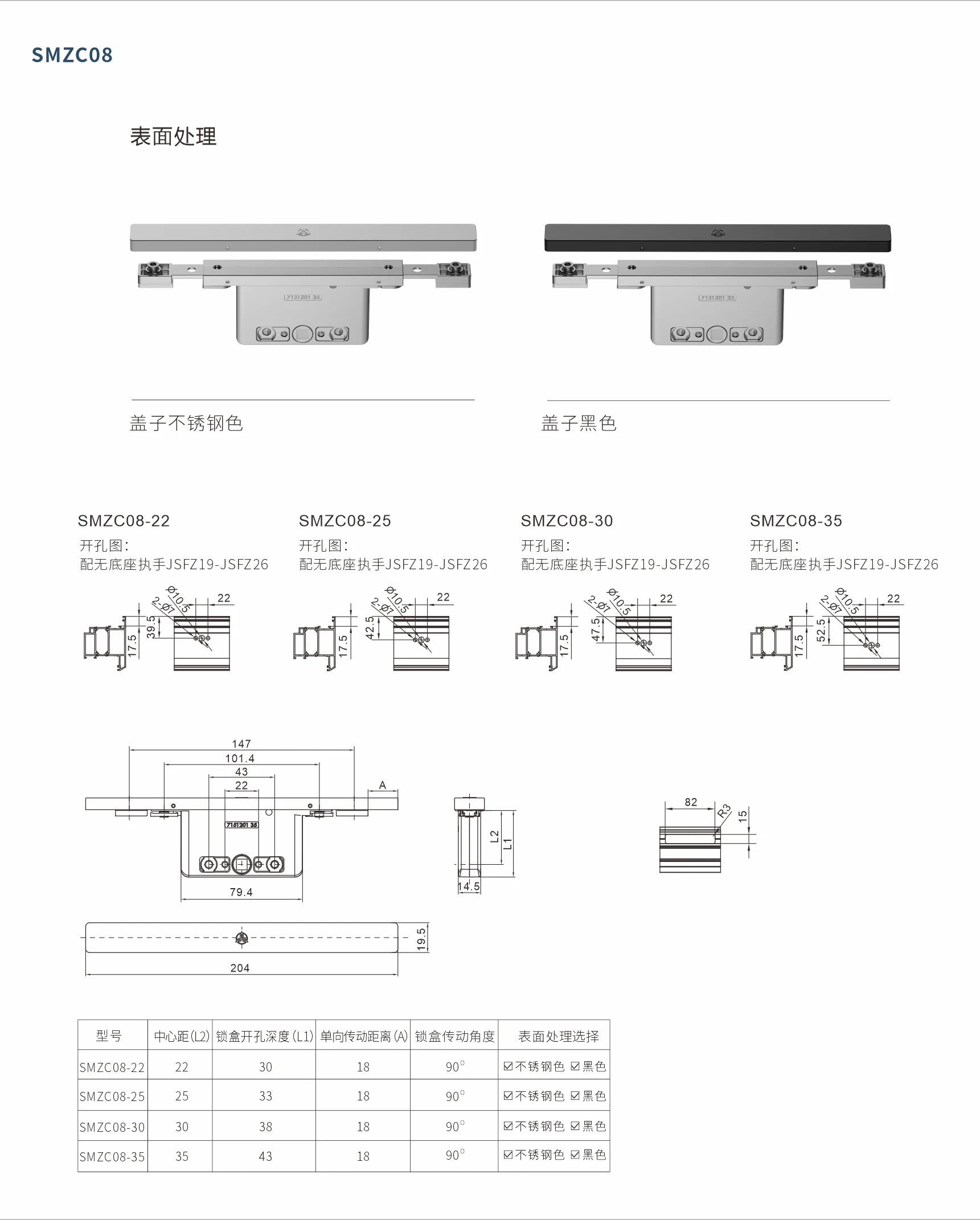

SMZC08 original factory technical drawing with 90 degree transmission and L1 L2 dimensions
SMZC08 complete technical drawing

SPECIFICATIONS

Model specifications

Dimensions follow the original technical drawing.

Model
SMZC08-22 / -25 / -30 / -35
Transmission angle
90°
Centre distance (L2)
22 / 25 / 30 / 35 mm
Bore depth (L1)
30 / 33 / 38 / 43 mm
Transmission travel (A)
18 mm
Cap finish
Stainless steel colour / black
Handle pairing
JSFZ19–JSFZ26 without base

SPECIFICATION REQUEST

Request SMZC08 specifications

Share the profile drawing, required model size and quantity for a technical specification request.
