Configuration
Official configuration 224INTEGRATED SCREEN
MODEL
Ball locking point · 20 kg integrated screen configuration for integrated window-screen systems
Official configuration 224 combines a ball locking point with a 20 kg drawing reference for an integrated window-screen system.
AT A GLANCE
Ball locking point · 20 kg at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Locking point
Ball locking pointLoad reference
20 kgApplication
Integrated window-screen hardwareTECHNICAL DRAWING

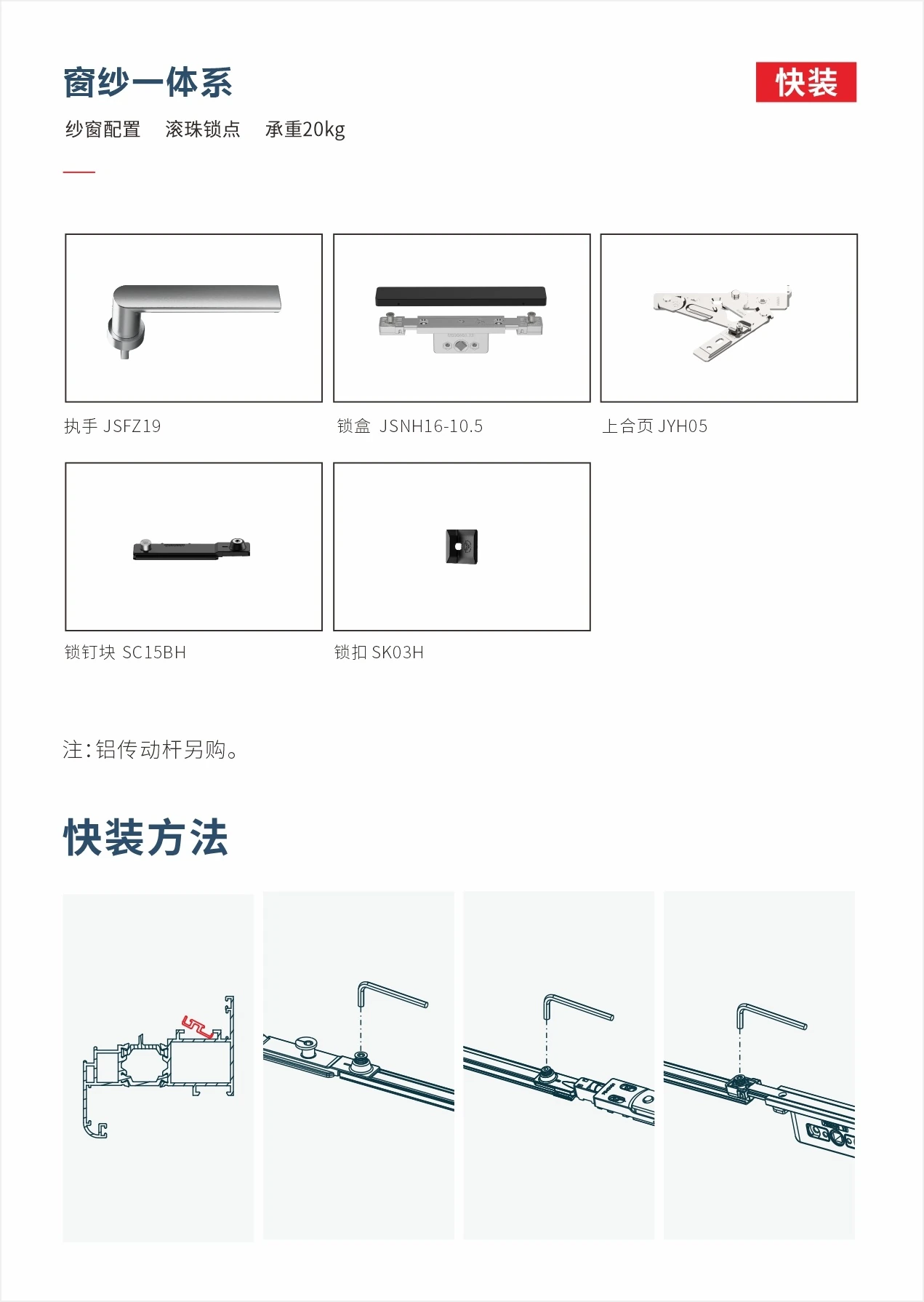

Complete technical drawing
The original factory drawing shows the component set and quick-install reference for configuration 224.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for Ball locking point · 20 kg.
Configuration
Official screen configuration 224
Locking point
Ball locking point
Load reference
20 kg drawing reference
System type
Integrated window-screen hardware for aluminium windows
Drawing reference
Original factory component and installation drawing
CONFIGURATION
What to confirm
Use these references to select a compatible Ball locking point · 20 kg hardware set.
Profile & groove
Profile section or groove drawing
Sash size & load
Sash dimensions and required load class
Screen arrangement
Integrated screen layout and operating direction
Quantity & destination
Required quantity and delivery country
REQUEST MATCHING
Match Ball locking point · 20 kg to your window system
Send a Ball locking point · 20 kg reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
