LOCK BOXSNH14 180° transmission lock box

MODEL

SNH14 180° transmission lock box

180° transmission

Transmission angle
180°
Cover length
204 mm

Handle pairing: JSFZ19–JSFZ26 without base

View technical drawingRequest specifications

TECHNICAL DRAWING

Complete technical drawing

Dimensions, installation hole positions and model options are shown in the original drawing.

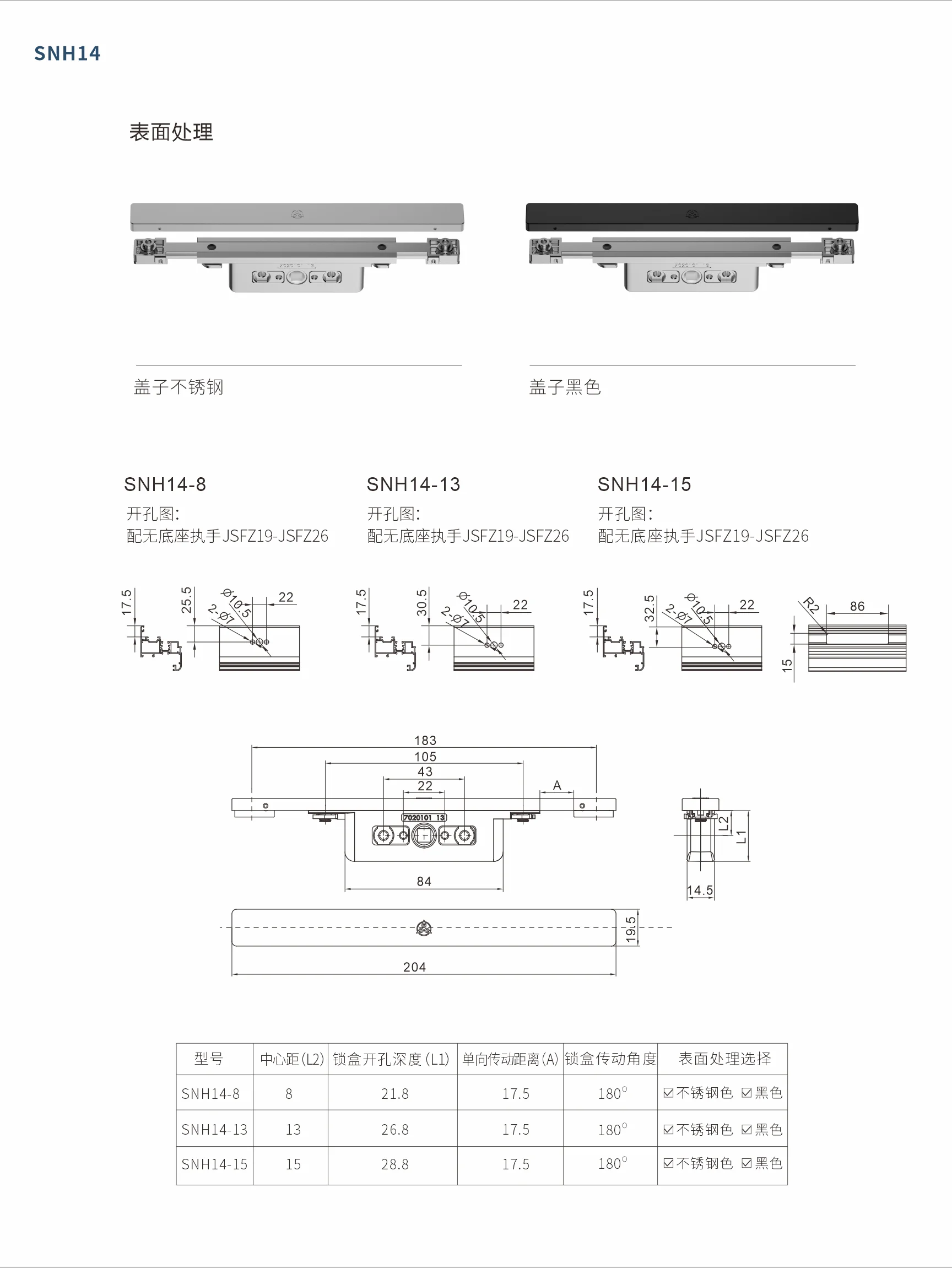

SNH14 original factory technical drawing with 180 degree transmission and L1 L2 dimensions
SNH14 complete technical drawing

SPECIFICATIONS

Model specifications

Dimensions follow the original technical drawing.

Model
SNH14-8 / -13 / -15
Transmission angle
180°
Centre distance (L2)
8 / 13 / 15 mm
Bore depth (L1)
21.8 / 26.8 / 28.8 mm
Transmission travel (A)
17.5 mm
Cap finish
Stainless steel colour / black
Handle pairing
JSFZ19–JSFZ26 without base

SPECIFICATION REQUEST

Request SNH14 specifications

Share the profile drawing, required model size and quantity for a technical specification request.
