SHJ68HINGES
MODEL
SHJ68 door hinge for aluminium doors
SHJ68 is a door hinge with a pre-installed clamp-block configuration, with a catalogue maximum leaf-weight reference of 80 kg.
AT A GLANCE
SHJ68 at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Configuration
Pre-installed clamp blockMax. leaf weight

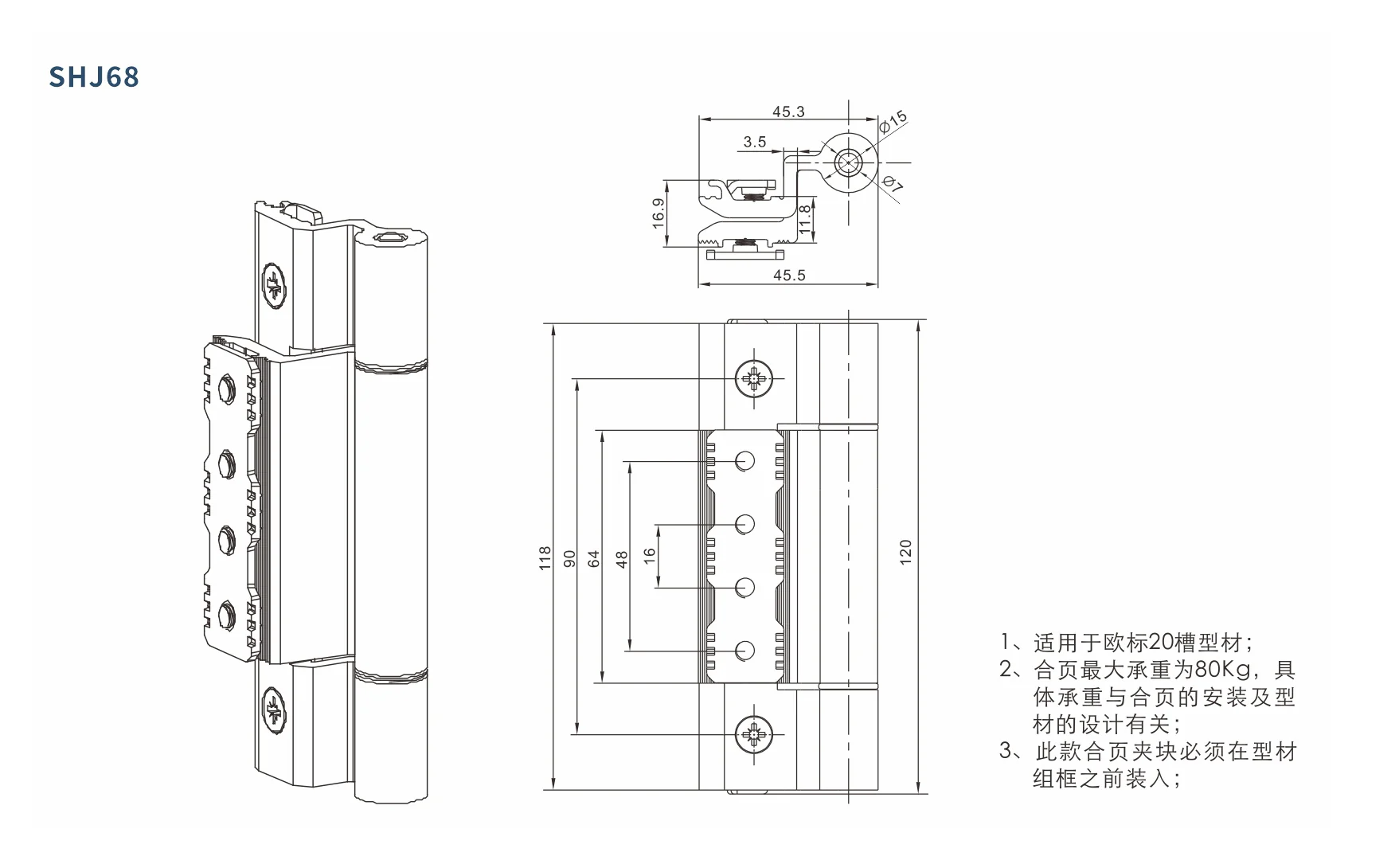

80 kgTECHNICAL DRAWING
Complete technical drawing
The catalogue image and selection data identify this hinge model. Complete installation dimensions can be supplied with the matched door system after the profile, handing and leaf weight are confirmed.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for SHJ68.
Model
SHJ68
Component
door hinge
Application
Pre-installed clamp block
Selection reference
Profile or door type, leaf weight and handing
CONFIGURATION
What to confirm
Use these references to select a compatible SHJ68 hardware set.
Profile or door type
Confirm European groove 20 or flush casement door construction
Leaf weight
Select within the 80 kg catalogue reference
Handing & adjustment
Confirm left/right arrangement and the available adjustment direction
Finish & quantity
State finish, required quantity and destination country
REQUEST MATCHING
Match SHJ68 to your window system
Send a SHJ68 reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
