Model
SH32HINGES
MODEL
SH32 door hinge for aluminium doors
SH32 is a European groove 20 door hinge with a catalogue maximum leaf-weight reference of 90 kg.
AT A GLANCE
SH32 at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Profile
European groove 20Max. leaf weight

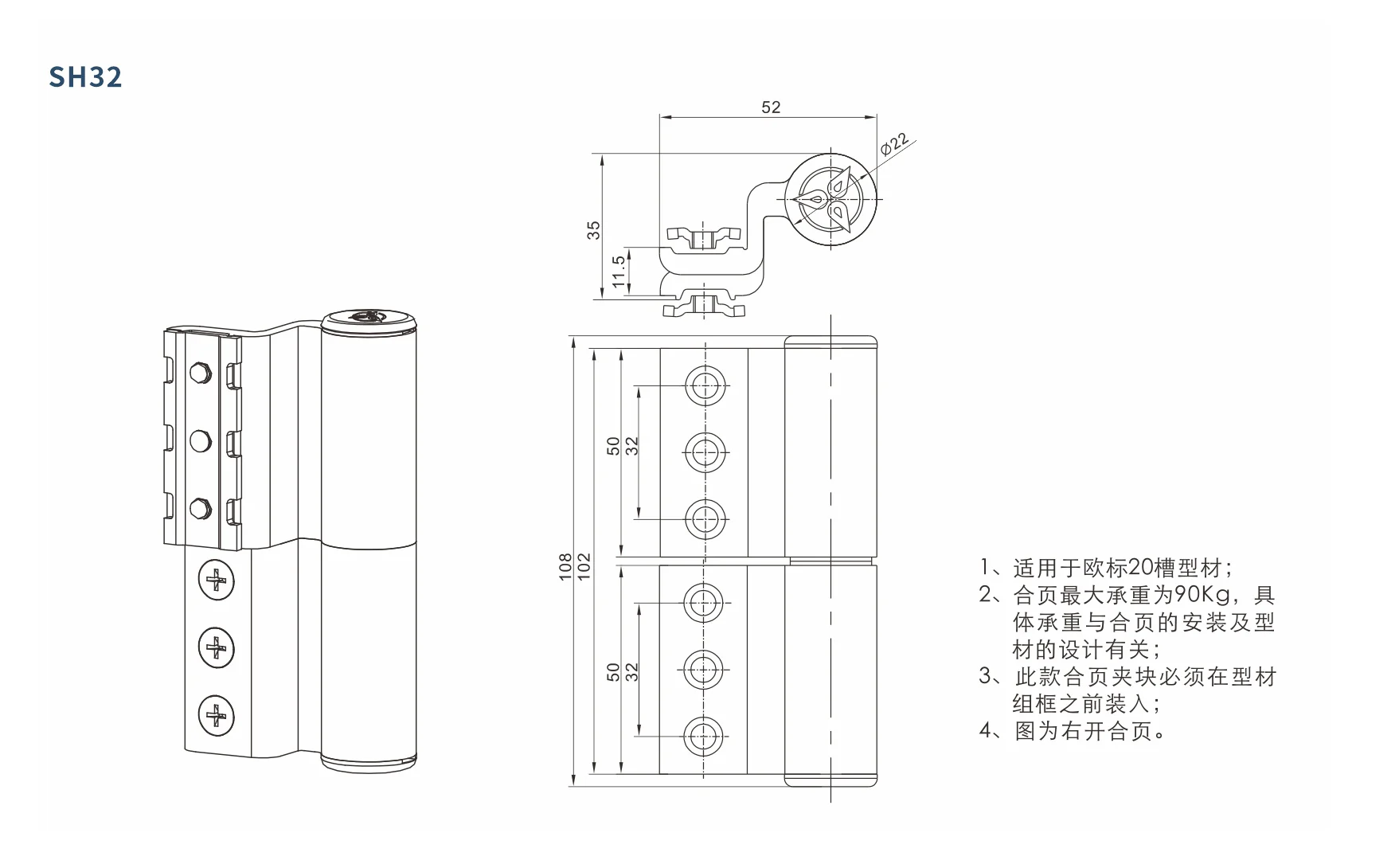

90 kgTECHNICAL DRAWING
Complete technical drawing
The catalogue image and selection data identify this hinge model. Complete installation dimensions can be supplied with the matched door system after the profile, handing and leaf weight are confirmed.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for SH32.
Model
SH32
Component
door hinge
Application
European groove 20
Selection reference
Profile or door type, leaf weight and handing
CONFIGURATION
What to confirm
Use these references to select a compatible SH32 hardware set.
Profile or door type
Confirm European groove 20 or flush casement door construction
Leaf weight
Select within the 90 kg catalogue reference
Handing & adjustment
Confirm left/right arrangement and the available adjustment direction
Finish & quantity
State finish, required quantity and destination country
REQUEST MATCHING
Match SH32 to your window system
Send a SH32 reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
