Configuration
Square steel handle · ball locking pointOUTWARD CASEMENT
MODEL
Square steel handle + ball locking point outward casement system for outward casement windows
The official configuration combines a square steel handle with a ball locking point and a 60 kg drawing reference.
AT A GLANCE
Square steel handle + ball locking point at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
System
Outward-opening casementLoad reference
60 kgSource configuration
28TECHNICAL DRAWING
Complete technical drawing

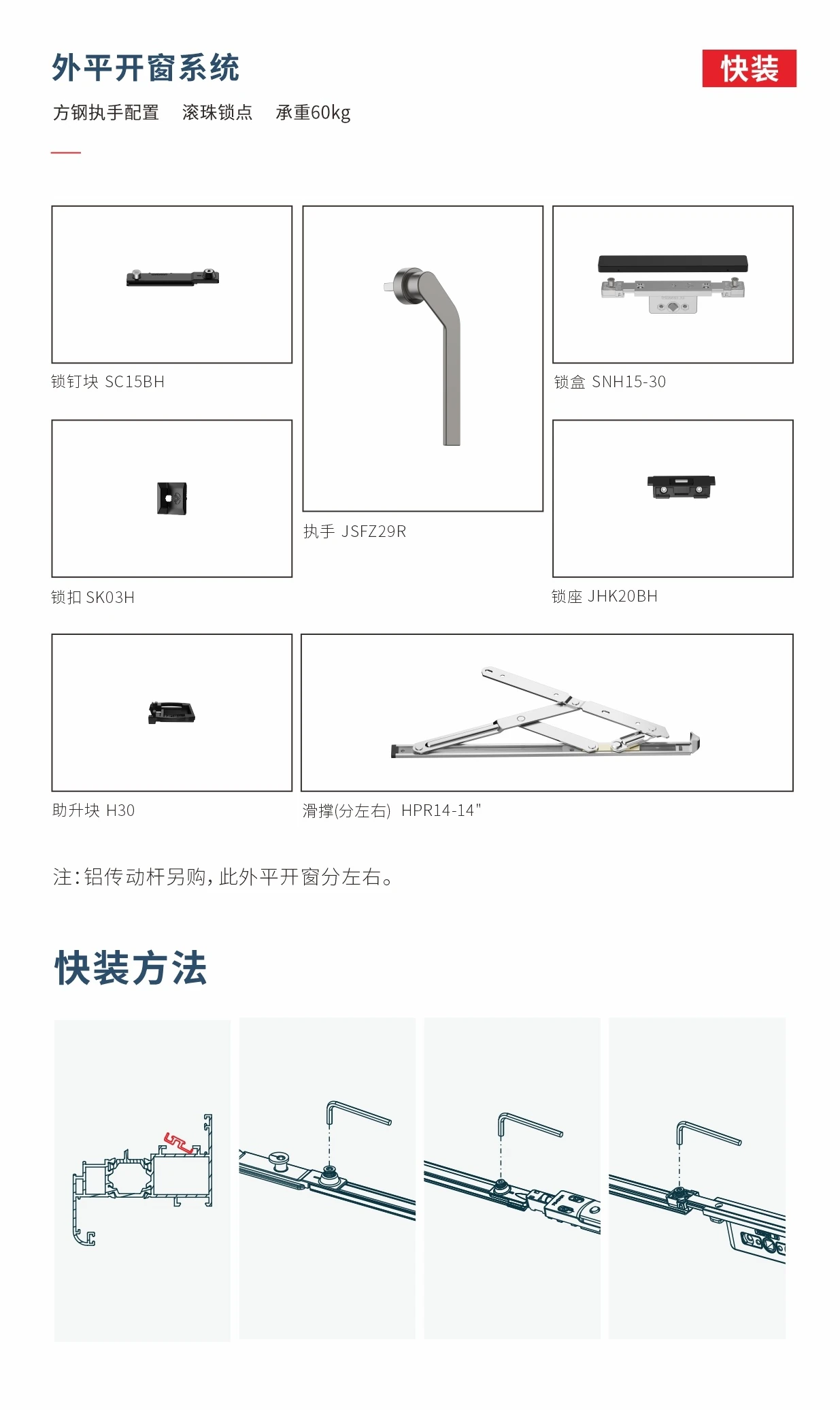

The original factory drawing shows the components and quick-install reference for official configuration 28.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for Square steel handle + ball locking point.
Configuration
Official outward casement configuration 28
Handle configuration
Square steel handle
Locking point
Ball locking point
Load reference
60 kg drawing reference
Drawing reference
Original factory system and installation drawing
CONFIGURATION
What to confirm
Use these references to select a compatible Square steel handle + ball locking point hardware set.
Profile & groove
Confirm the profile section and groove against the original drawing
Sash size & load
Confirm sash dimensions and the 60 kg load reference
Opening direction
Confirm left- or right-handed outward opening
Quantity & destination
Required quantity and delivery country
REQUEST MATCHING
Match Square steel handle + ball locking point to your window system
Send a Square steel handle + ball locking point reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
