LOCK BOXSNH13 lock box with 229.6 mm cover

MODEL

SNH13 lock box with 229.6 mm cover

Drawing dimension L: 12 / 15 / 18 mm

Cover length
229.6 mm
Model size (L)
12 / 15 / 18 mm
View technical drawingRequest specifications

TECHNICAL DRAWING

Complete technical drawing

Dimensions, installation hole positions and model options are shown in the original drawing.

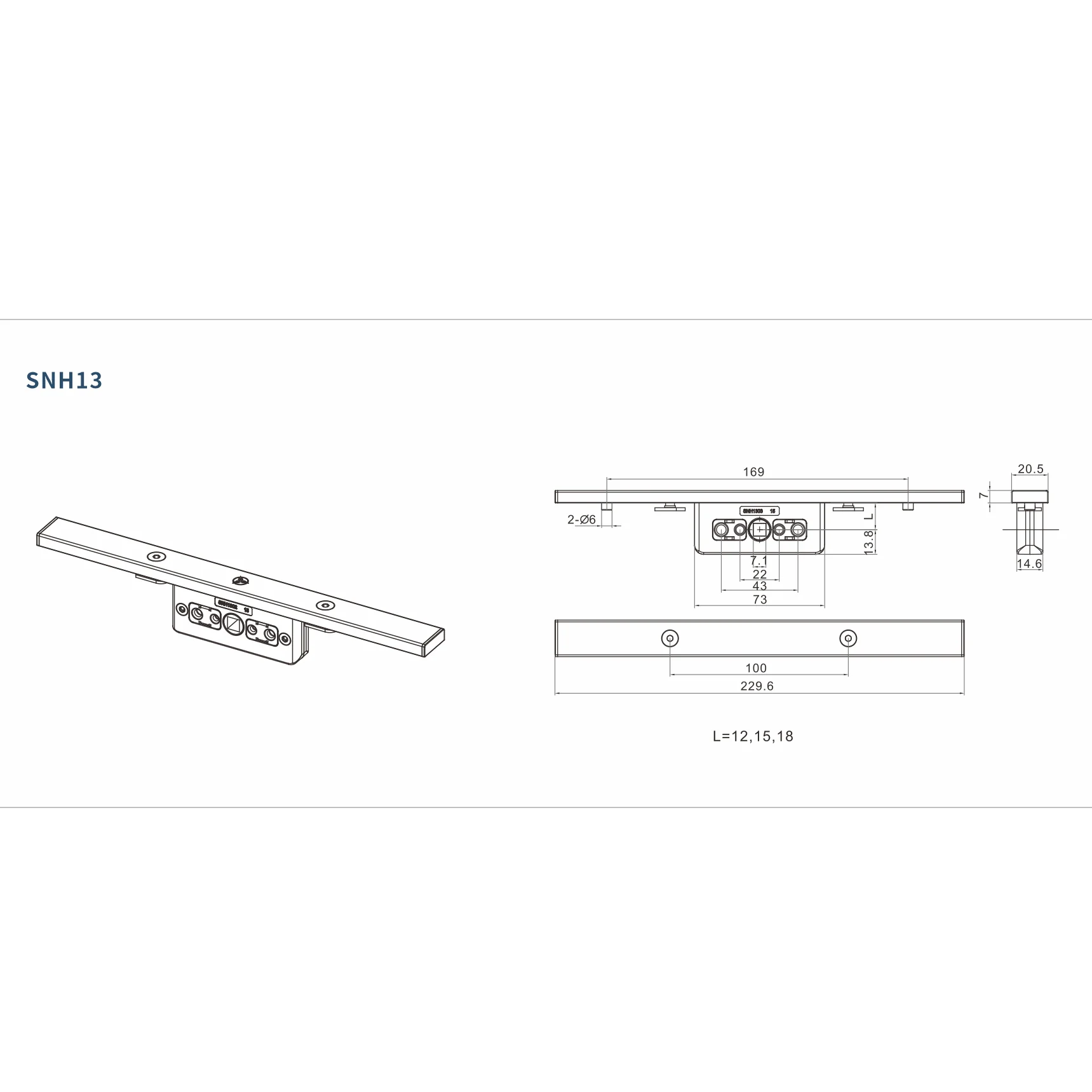

SNH13 original factory technical drawing with L dimensions and 229.6 millimetre cover
SNH13 complete technical drawing

SPECIFICATIONS

Model specifications

Dimensions follow the original technical drawing.

Model dimension (L)
12 / 15 / 18 mm
Cover length
229.6 mm
Cover profile
20.5 × 7 mm
Lock box body
73 mm
Lock box depth
14.6 mm

SPECIFICATION REQUEST

Request SNH13 specifications

Share the profile drawing, required model size and quantity for a technical specification request.
