STD06STRIP LOCKS
MODEL
STD06 strip lock for aluminium doors and windows
STD06 is a standard flush-plate strip lock with hook configurations numbered 1–9 in the catalogue reference.
AT A GLANCE
STD06 at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Plate configuration
Standard flush plateHook configurations

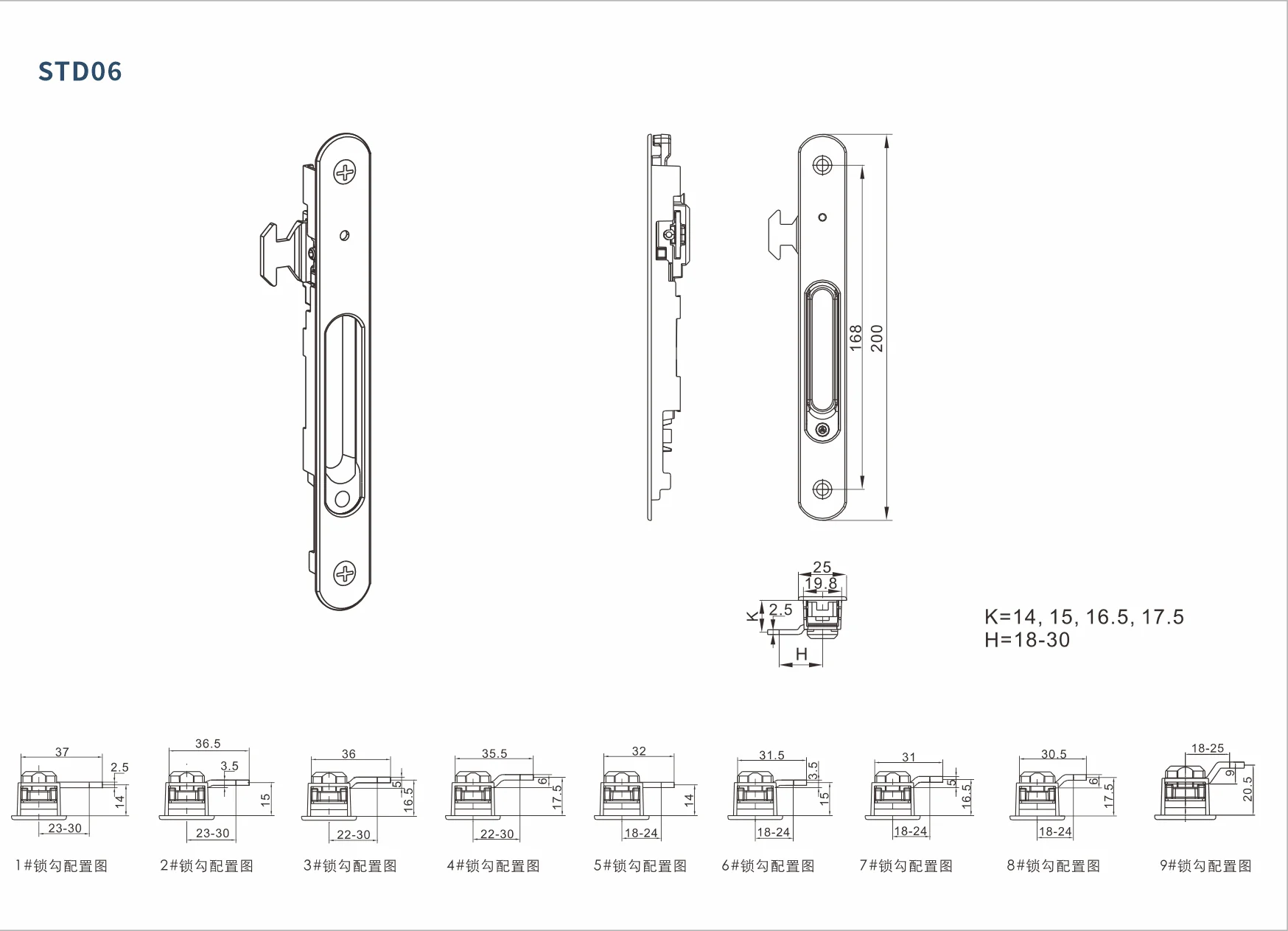

No. 1–9TECHNICAL DRAWING
Complete technical drawing
The catalogue image identifies the strip-lock model and its visible configuration. Complete installation dimensions and locking-point details can be supplied with the matched door or window system.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for STD06.
Model
STD06
Component
strip lock
Plate configuration
Standard flush plate
Hook configurations
No. 1–9
CONFIGURATION
What to confirm
Use these references to select a compatible STD06 hardware set.
Profile & groove
Provide the profile section and groove dimensions for the strip-lock interface
Handle or plate
Standard flush plate
Locking layout
Confirm the required hook configuration No. 1–9
Finish & quantity
State finish, required quantity and destination country
REQUEST MATCHING
Match STD06 to your window system
Send a STD06 reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
