Model
JNPX700TILT & TURN
MODEL
JNPX700 short tie rod for tilt & turn windows
A short tie rod configuration for aluminium tilt & turn windows, with 90° and 180° opening references selected according to the profile, sash size and sash weight.
AT A GLANCE
JNPX700 at a glance
Model, opening, tilt dimension and load support initial selection. Confirm the final configuration with the window system and sash information.
Component
Short tie rodApplication
Tilt & turn windowOpening reference
90° / 180° drawing referenceTilt dimension
125 mm drawing referenceLoad capacity
110 kg at 90° / 100 kg at 180°TECHNICAL DRAWING

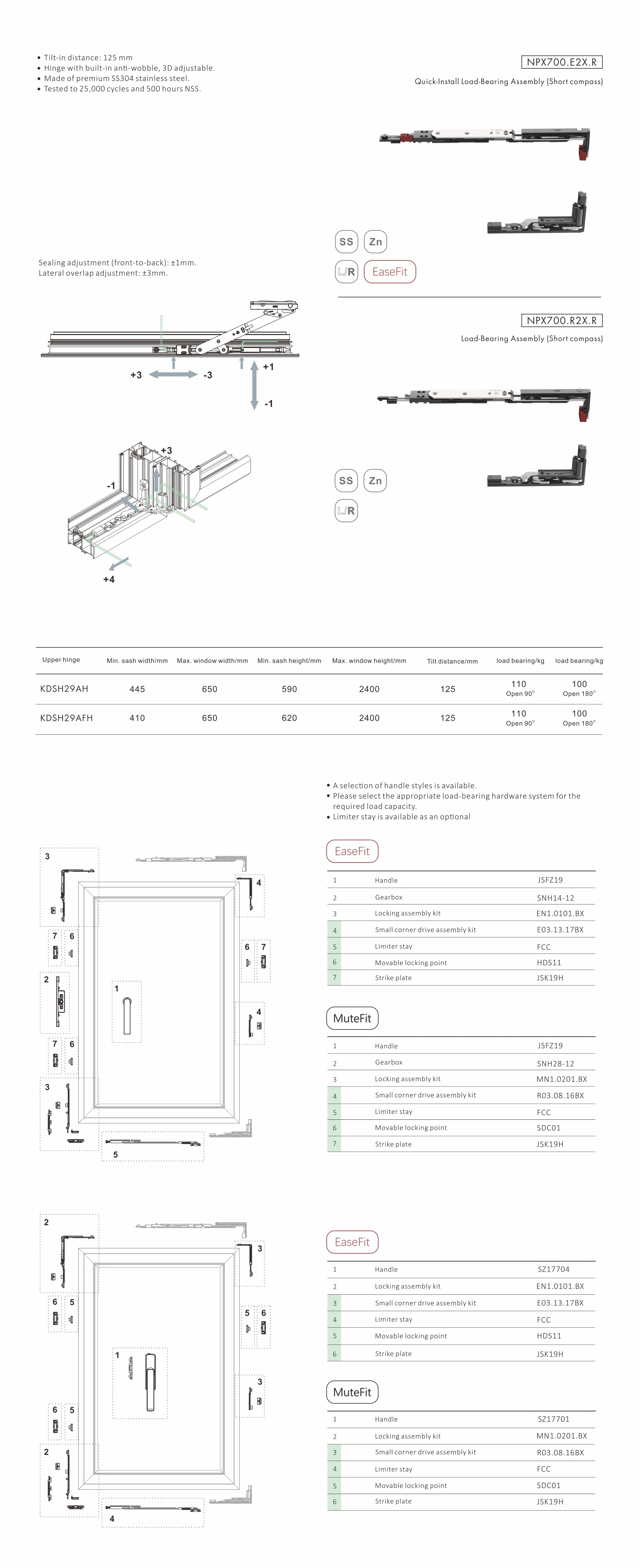

Complete technical drawing
The complete drawing shows the JNPX700 short tie rod, adjustment references, sash size range and load references for 90° and 180° opening.
SPECIFICATIONS
Specifications
Model, opening, size, load and adjustment references for JNPX700.
Model
JNPX700
Product type
Short tie rod
Application
Aluminium tilt & turn windows
Drawing model references
NPX700.E2X.R / NPX700.R2X.R
Opening reference
90° and 180° opening references
Adjustment reference
Front/rear ±1 mm; left/right ±3 mm
Tilt dimension
125 mm drawing reference
Sash size
Min. width 410–445 mm; max. width 650 mm; min. height 590–620 mm; max. height 2400 mm
Load capacity
110 kg at 90°; 100 kg at 180°
CONFIGURATION
What to confirm
Use these four references to select a compatible JNPX700 hardware set.
Profile & groove
Profile section or groove drawing
Sash dimensions & weight
Sash width, height and estimated weight
Existing hardware
Handle, gearbox and related parts
Quantity & destination
Required quantity and delivery country
REQUEST MATCHING
Match JNPX700 to your window system
A JNPX700 model, profile drawing or site photo is enough to begin the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
