Model
STD06CSTRIP LOCKS
MODEL
STD06C strip lock for aluminium doors and windows
STD06C is a strip lock with a single-sided pull-handle configuration for aluminium door and window systems. The catalogue profile range is K 14–17.5 and H 18–30 mm.
AT A GLANCE
STD06C at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Handle configuration
Single-sided pull handleProfile range

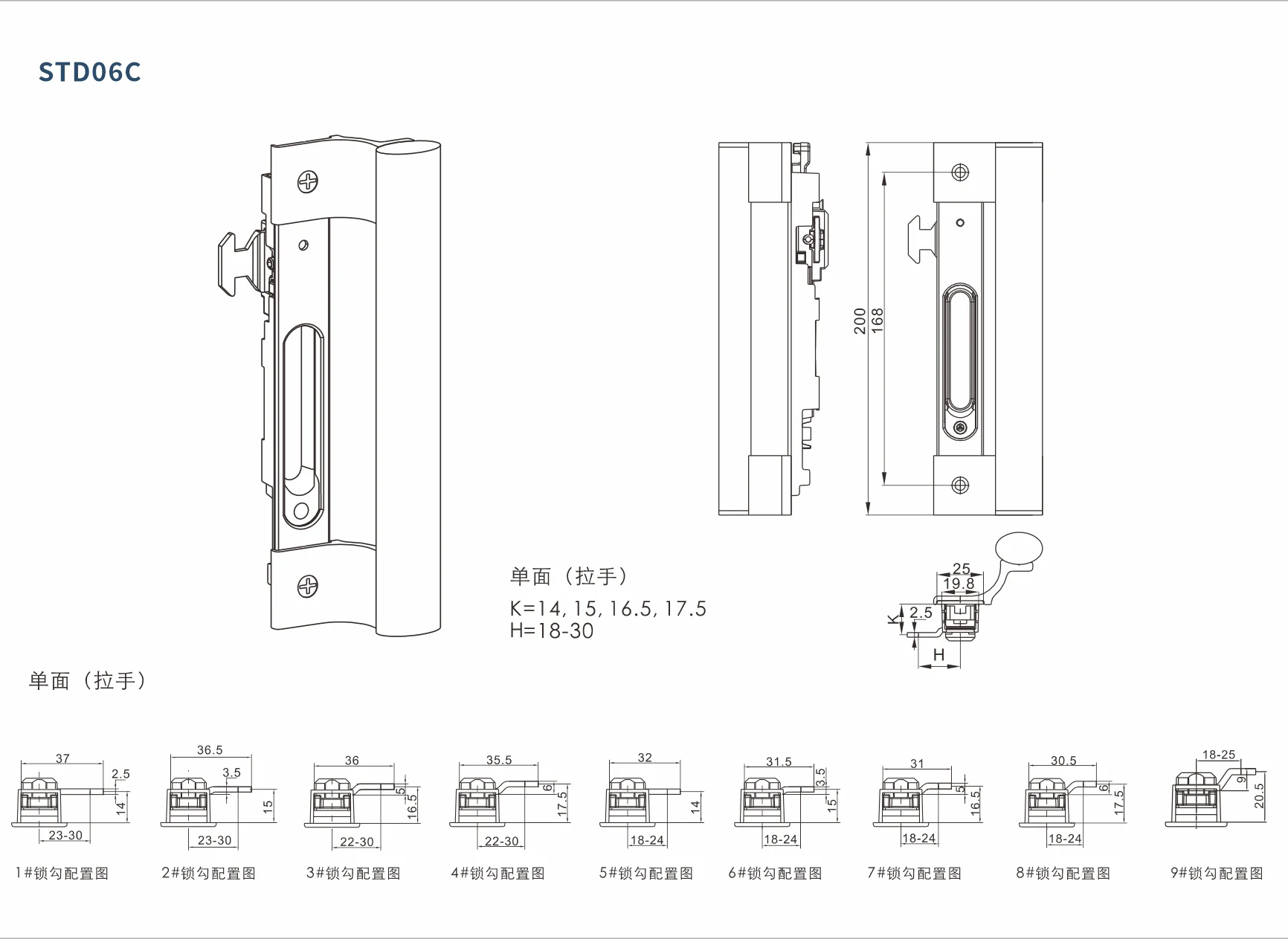

K 14–17.5; H 18–30 mmTECHNICAL DRAWING
Complete technical drawing
The catalogue image identifies the strip-lock model and its visible configuration. Complete installation dimensions and locking-point details can be supplied with the matched door or window system.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for STD06C.
Model
STD06C
Component
strip lock
Handle configuration
Single-sided pull handle
Profile range
K 14–17.5; H 18–30 mm
CONFIGURATION
What to confirm
Use these references to select a compatible STD06C hardware set.
Profile & groove
Provide the profile section and groove dimensions for the strip-lock interface
Handle or plate
Single-sided pull handle
Locking layout
Confirm the required locking points and transmission layout
Finish & quantity
State finish, required quantity and destination country
REQUEST MATCHING
Match STD06C to your window system
Send a STD06C reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
