Model
SH43BCASEMENT DOOR
MODEL
SH43B single-leaf swing door system for 180 kg casement doors
The SH43B single-leaf swing door configuration uses a wind brace arrangement with a 180 kg load reference; final component matching follows the door profile and weight.
AT A GLANCE
SH43B at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
System
Single-leaf swing doorLoad capacity
180 kgConfiguration
Wind brace configurationTECHNICAL DRAWING

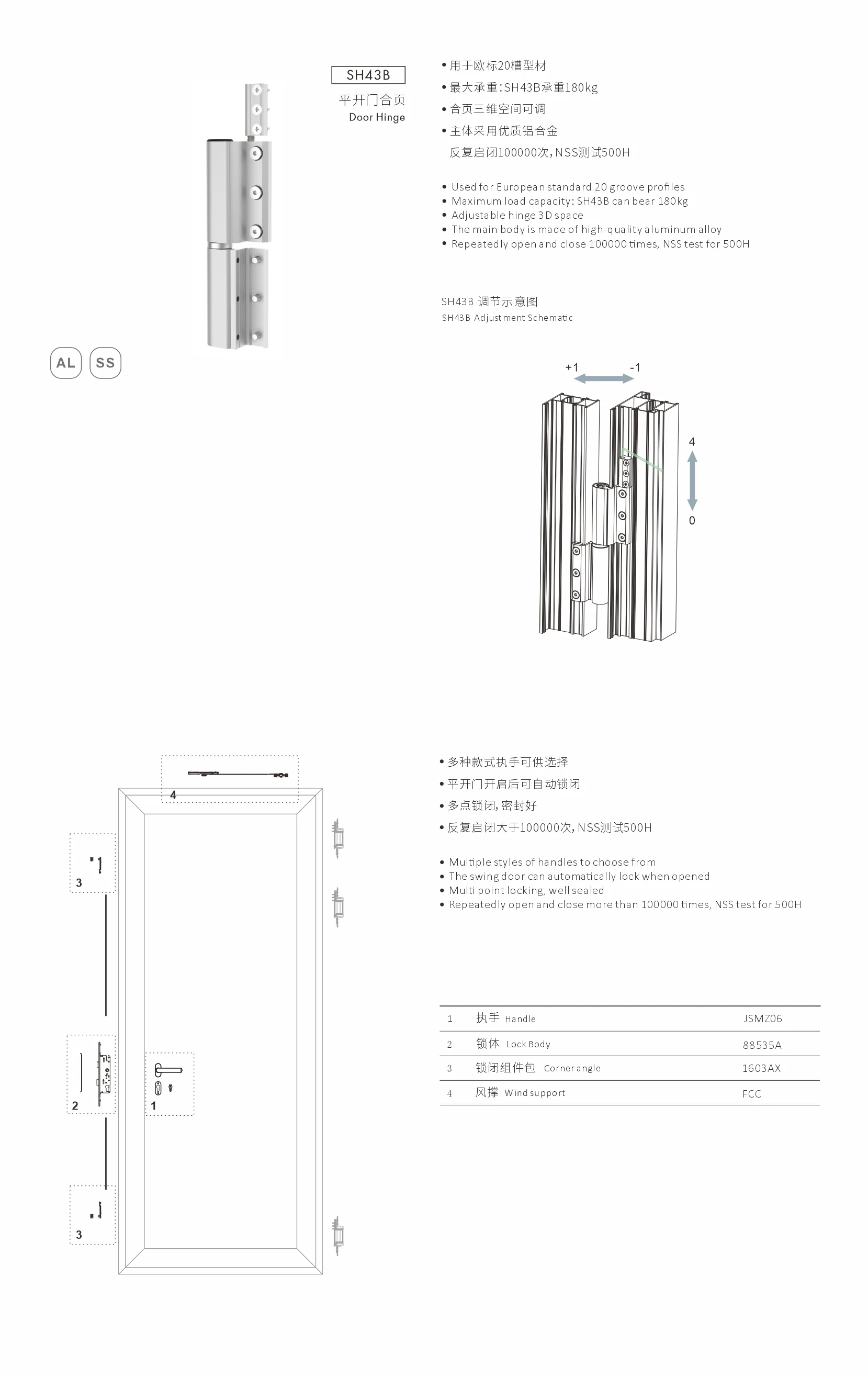

Complete technical drawing
The product reference confirms the SH43B door hinge and the 180 kg wind-brace system direction. The complete factory drawing is matched after the door profile and project configuration are confirmed.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for SH43B.
Model
SH43B
System type
Single-leaf swing door hardware system
Configuration
Wind brace configuration
Load capacity
180 kg reference
Drawing reference
Factory component drawing matched to the confirmed door configuration
CONFIGURATION
What to confirm
Use these references to select a compatible SH43B hardware set.
Door profile
Profile section or groove drawing
Door weight
Confirm the door leaf weight before selecting the complete set
Opening direction
Confirm the handing and opening direction
Quantity & destination
Required quantity and delivery country
REQUEST MATCHING
Match SH43B to your window system
Send a SH43B reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
