Model
SH50AHINGES
MODEL
SH50A door hinge for aluminium doors
SH50A is a flush casement door hinge shown in a right-hand configuration, with eccentric adjustment and a catalogue maximum leaf-weight reference of 140 kg.
AT A GLANCE
SH50A at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Door type
Flush casement doorMax. leaf weight

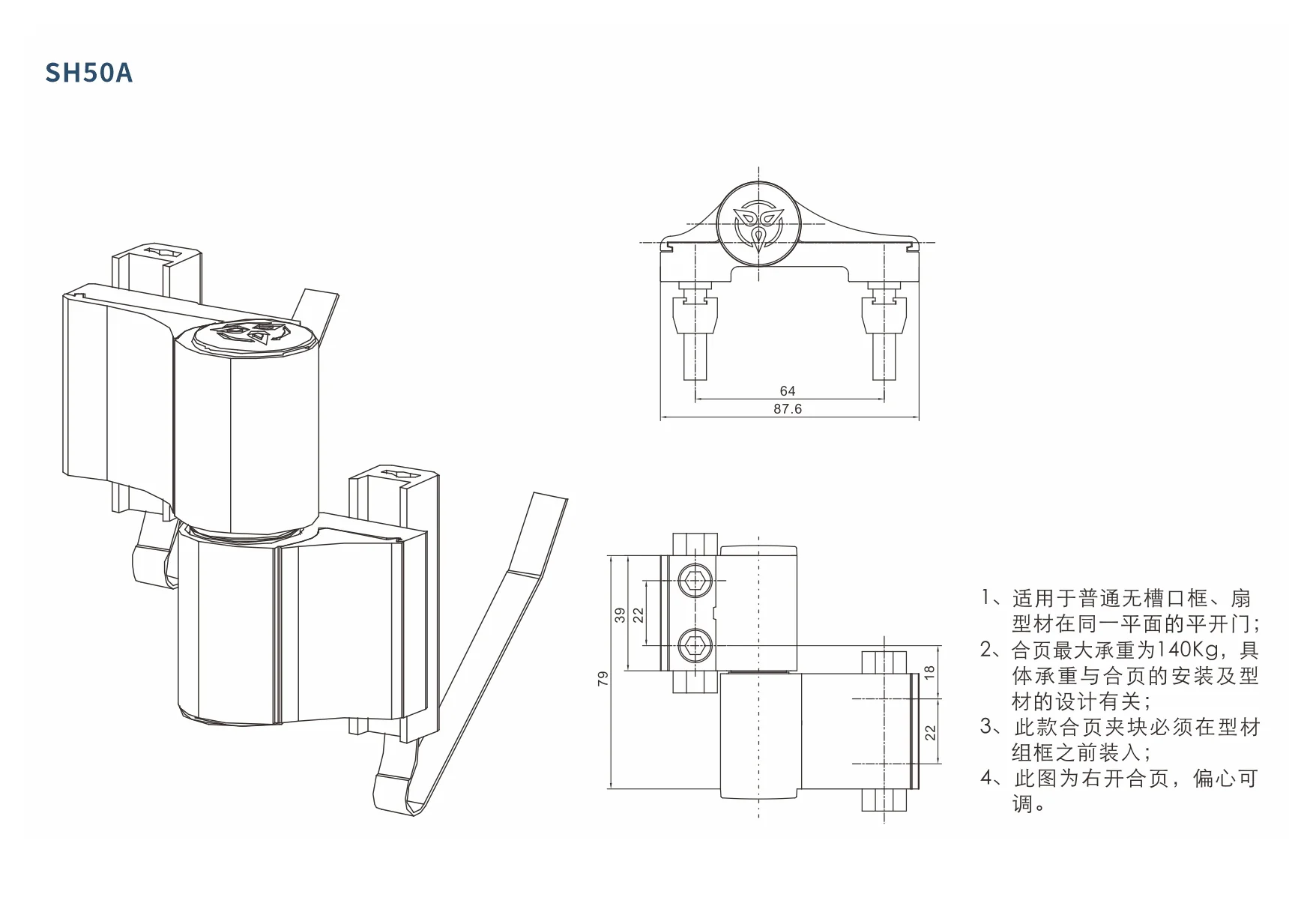

140 kgTECHNICAL DRAWING
Complete technical drawing
The catalogue image and selection data identify this hinge model. Complete installation dimensions can be supplied with the matched door system after the profile, handing and leaf weight are confirmed.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for SH50A.
Model
SH50A
Component
door hinge
Application
Flush casement door
Selection reference
Profile or door type, leaf weight and handing
CONFIGURATION
What to confirm
Use these references to select a compatible SH50A hardware set.
Profile or door type
Confirm European groove 20 or flush casement door construction
Leaf weight
Select within the 140 kg catalogue reference
Handing & adjustment
Confirm left/right arrangement and the available adjustment direction
Finish & quantity
State finish, required quantity and destination country
REQUEST MATCHING
Match SH50A to your window system
Send a SH50A reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
