Model
JNC710INWARD CASEMENT
MODEL

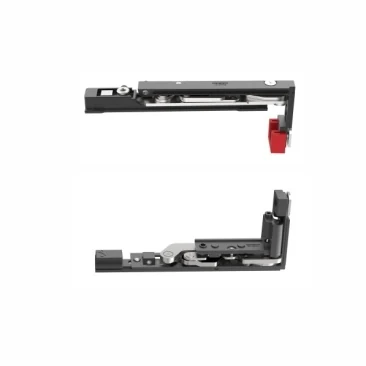

JNC710 inward-opening casement system for inward casement windows
A concealed inward-opening casement window configuration with a fork handle and anti-theft I-shaped locking point, shown with a 90 kg load reference in the factory drawing.
AT A GLANCE
JNC710 at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
System
Inward-opening casementConfiguration
Fork handle · I-shaped locking pointLoad reference
90 kg drawing referenceTECHNICAL DRAWING

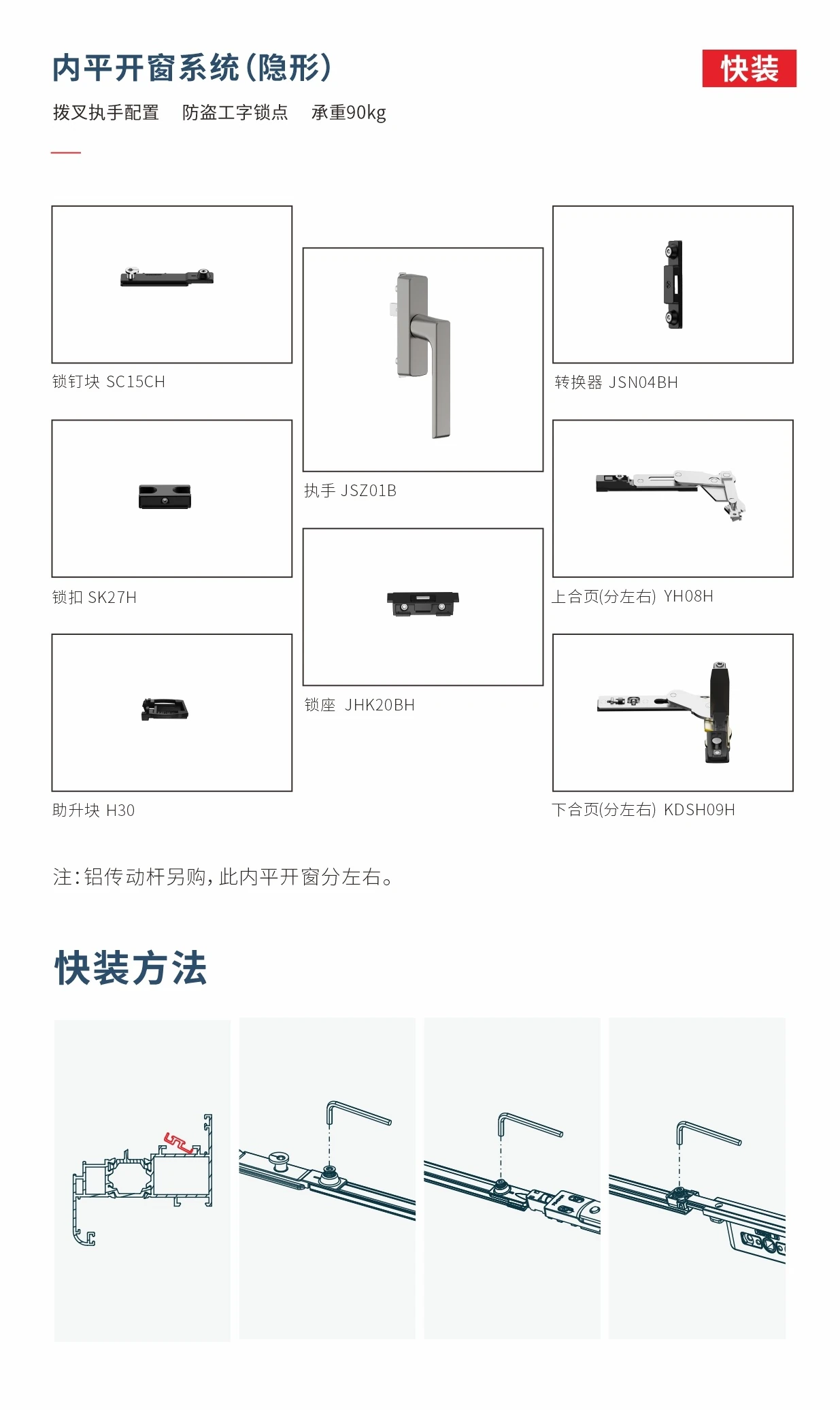

Complete technical drawing
The complete factory drawing shows the JNC710 system configuration, component list and installation steps.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for JNC710.
Model
JNC710
System type
Inward-opening casement window system (concealed)）
Handle configuration
Fork handle
Locking point
Anti-theft I-shaped locking point
Load reference
90 kg drawing reference
Drawing reference
Factory system and installation drawing
CONFIGURATION
What to confirm
Use these references to select a compatible JNC710 hardware set.
Window hand
Confirm left- or right-handed configuration
Profile & groove
Profile section or groove drawing
Existing hardware
Handle, lock parts and related components
Quantity & destination
Required quantity and delivery country
REQUEST MATCHING
Match JNC710 to your window system
Send a JNC710 reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
