JNPX800 short tie rod for tilt & turn windows
A short tie rod configuration for aluminium tilt & turn windows, selected according to the profile, opening reference, sash size and compatible hardware set.
AT A GLANCE
JNPX800 at a glance
Model, component type and drawing references support initial selection. Confirm the final configuration with the window system and sash information.
Component
Short tie rodApplication
Tilt & turn windowOpening reference
180° drawing referenceInverted dimension
120 mm drawing referenceLoad capacity
Confirm by configurationTECHNICAL DRAWING

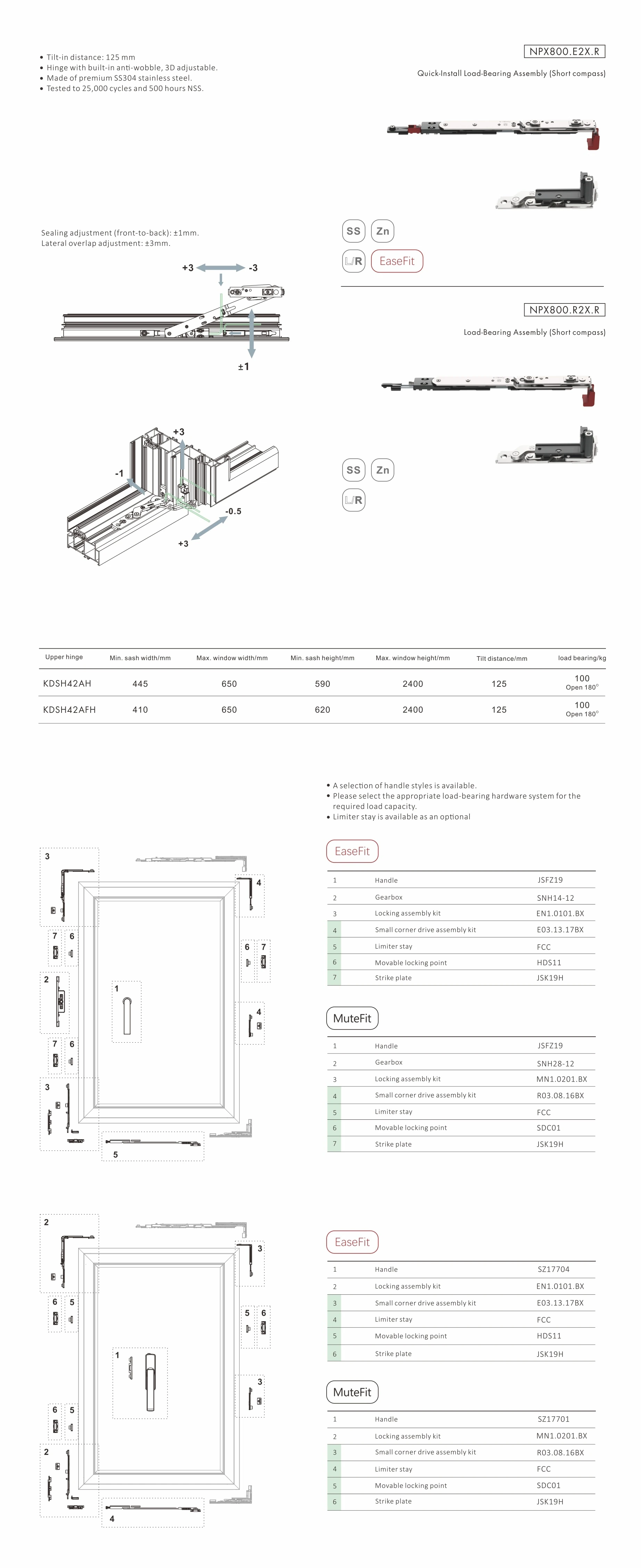

Complete technical drawing
The complete drawing shows the JNPX800 short tie rod, adjustment references, sash size range and related hardware positions.
SPECIFICATIONS
Specifications
Model, adjustment and sash size references for the JNPX800 short tie rod.
Model
JNPX800
Product type
Short tie rod
Application
Aluminium tilt & turn windows
Opening reference
180° drawing reference
Inverted dimension
120 mm drawing reference
Adjustment reference
Front/rear ±1 mm; left/right ±3 mm; vertical reference +0.75 mm
Upper hinge reference
KDSH44H / KDSH44FH
Sash size reference
Min. width 420–445 mm; max. width 1000 mm; min. height 590–620 mm; max. height 2400 mm
Load capacity
Confirm by configuration
CONFIGURATION
What to confirm
Use these four references to select a compatible short tie rod hardware set.
Profile & groove
Provide the profile section or groove drawing for compatibility review
Sash dimensions & weight
Confirm sash width, height and estimated weight before selecting the hardware set
Existing hardware
Handle, lock box, corner parts and related hardware can be checked together
Quantity & destination
Required quantity and delivery country
REQUEST MATCHING
Match the short tie rod to your window system
A JNPX800 short tie rod model, profile drawing or site photo is enough to begin the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
