LOCK BOX
MODEL
SNH15 90° transmission lock box
90° transmission
- Transmission angle
- 90°
- Cover length
- 135 mm
Handle pairing: JSFZ19–JSFZ26 without base

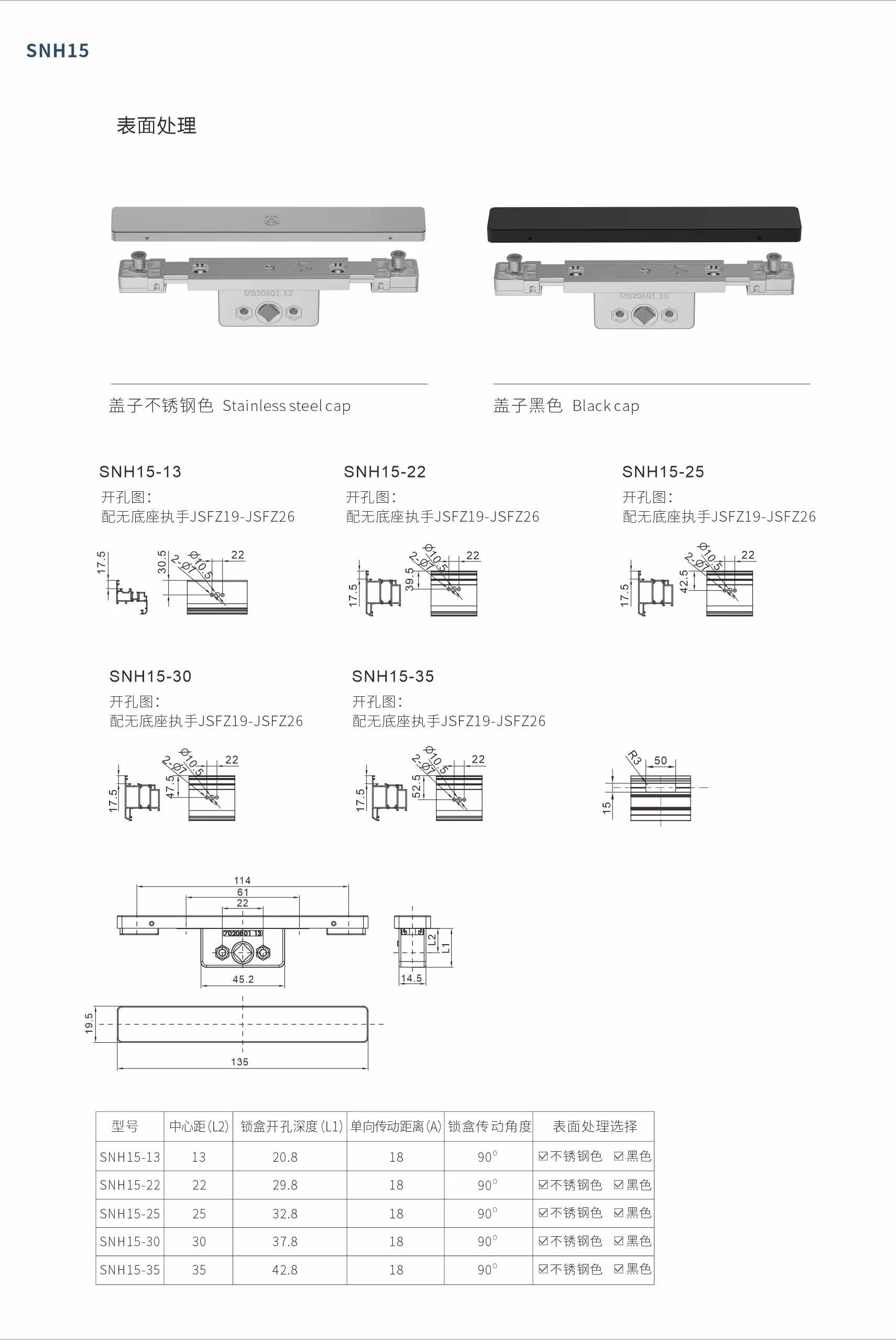

TECHNICAL DRAWING
Complete technical drawing
Dimensions, installation hole positions and model options are shown in the original drawing.
SPECIFICATIONS
Model specifications
Dimensions follow the original technical drawing.
- Model
- SNH15-13 / -22 / -25 / -30 / -35
- Transmission angle
- 90°
- Centre distance (L2)
- 13 / 22 / 25 / 30 / 35 mm
- Bore depth (L1)
- 20.8 / 29.8 / 32.8 / 37.8 / 42.8 mm
- Transmission travel (A)
- 18 mm
- Cap finish
- Stainless steel colour / black
- Handle pairing
- JSFZ19–JSFZ26 without base
SPECIFICATION REQUEST
Request SNH15 specifications
Share the profile drawing, required model size and quantity for a technical specification request.
