Model
JNPX800TILT & TURN
MODEL
JNPX800 long tie rod for tilt & turn windows
A long tie rod configuration for aluminium tilt & turn windows, selected according to the profile, opening type, sash size and sash weight.
AT A GLANCE
JNPX800 at a glance
Model, application and drawing references support initial selection. Confirm the final configuration with the window system and sash information.
Component
Long tie rodApplication
Tilt & turn windowOpening reference
180° drawing referenceTilt dimension
120 mm drawing referenceLoad capacity
Confirm by configurationTECHNICAL DRAWING

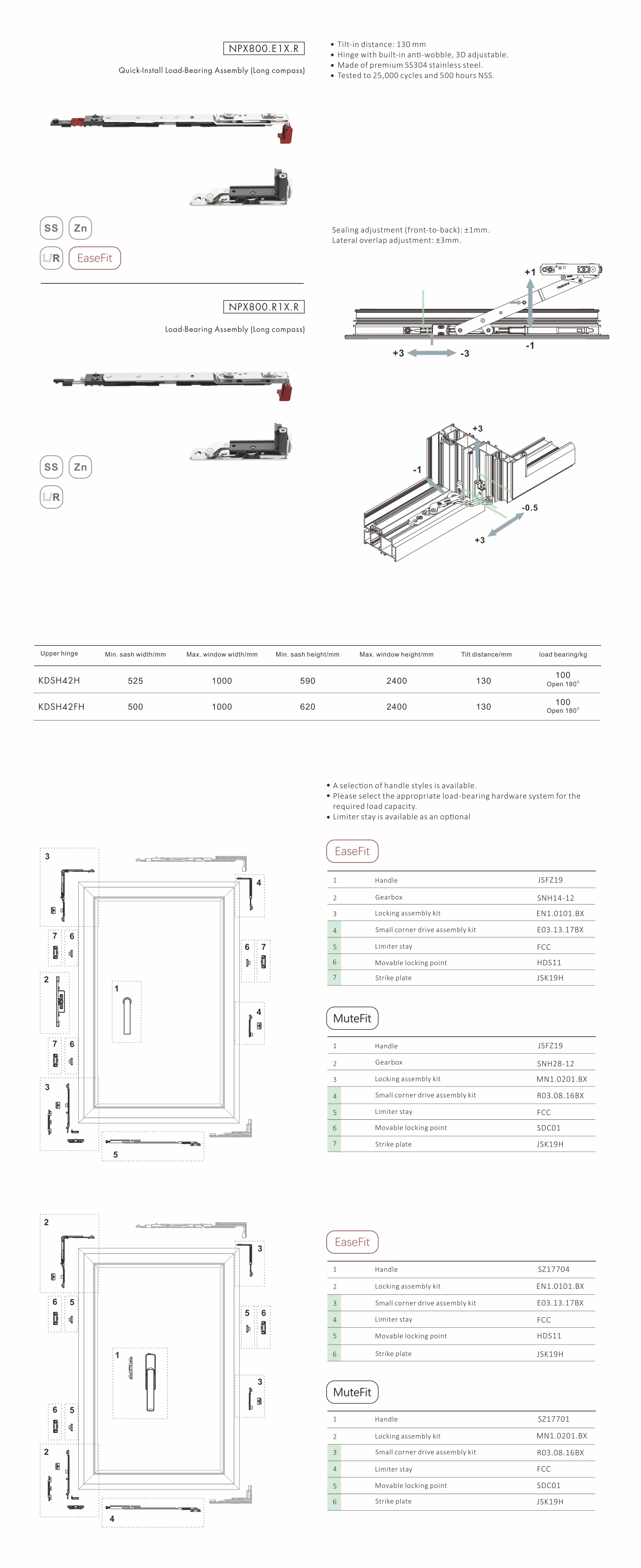

Complete technical drawing
The complete drawing shows the JNPX800 long tie rod in the window system, with adjustment and sash size references.
SPECIFICATIONS
Specifications
Model, application and adjustment references for JNPX800.
Model
JNPX800
Product type
Long tie rod
Application
Aluminium tilt & turn windows
Opening reference
180° drawing reference
Adjustment reference
Front/rear ±1 mm; left/right ±3 mm
Inverted dimension
120 mm drawing reference
Sash size
See the complete technical drawing
Load capacity
Confirm by configuration
CONFIGURATION
What to confirm
Use these four references to select a compatible hardware set.
Profile & groove
Profile section or groove drawing
Sash dimensions & weight
Sash width, height and estimated weight
Existing hardware
Handle, lock box and related parts
Quantity & destination
Required quantity and delivery country
REQUEST MATCHING
Match JNPX800 to your window system
A JNPX800 model, profile drawing or site photo is enough to begin the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
