Parallel opening window systemPARALLEL OPENING
MODEL
180 kg parallel opening window system for parallel opening windows
A 180 kg parallel opening window system with adjustable opening distance, factory component references and profile requirements shown in one continuous drawing.
AT A GLANCE
180 kg at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Max. sash size
3600 × 1800 mmMax. sash weight
180 kgOpening reference
Adjustable opening distanceTECHNICAL DRAWING

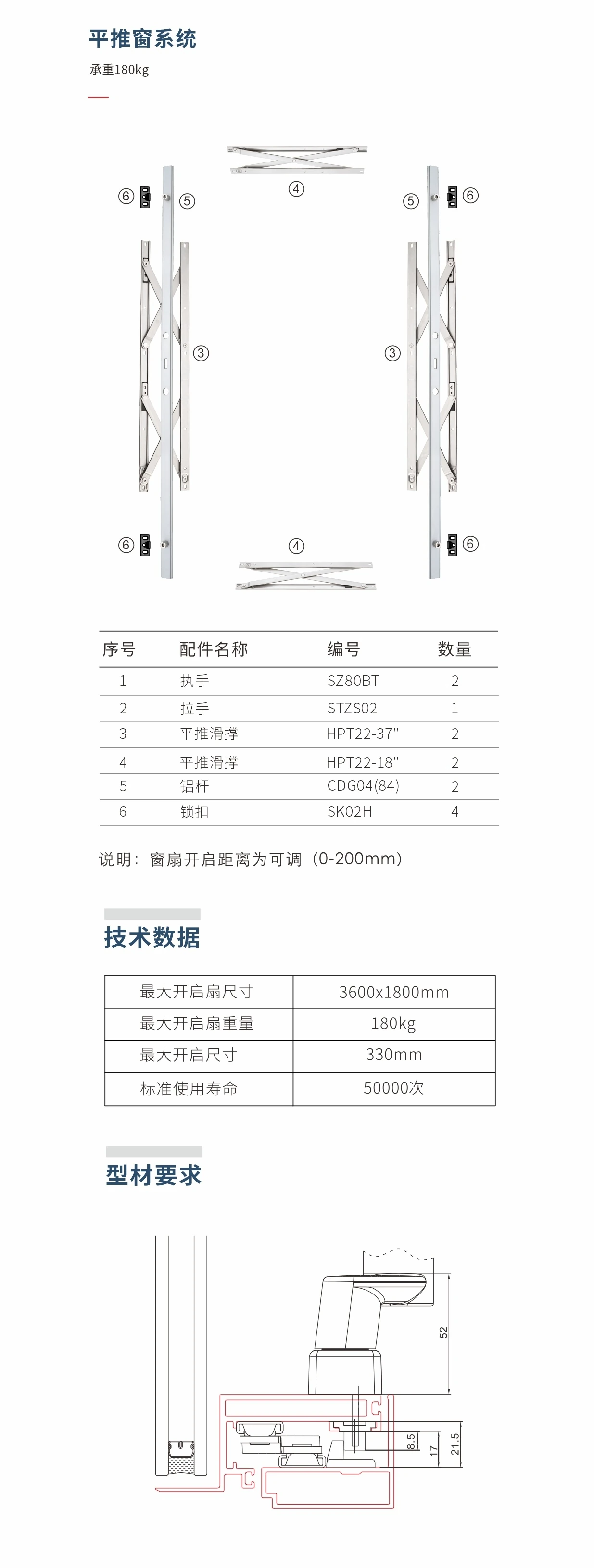

Complete technical drawing
The complete factory drawing shows the component set, adjustable opening reference, sash size, service-life data and profile section requirements.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for 180 kg.
Configuration
180 kg parallel opening window system
Max. sash size
3600 × 1800 mm
Max. sash weight
180 kg
Max. opening distance
330 mm
Adjustable opening
0–200 mm reference
Standard service life
50,000 cycles
Profile reference
Section dimensions shown on the factory drawing
CONFIGURATION
What to confirm
Use these references to select a compatible 180 kg hardware set.
Profile & section
Confirm the profile section against the drawing reference
Sash size & weight
Confirm sash size and weight before selecting the complete set
Component set
Handle, pull handle, parallel friction stays, aluminium rods and keepers are shown in the drawing
Quantity & destination
Required quantity and delivery country
REQUEST MATCHING
Match 180 kg to your window system
Send a 180 kg reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
