Top-hung window systemTOP-HUNG
MODEL
84 kg top-hung window system for top-hung windows
An 84 kg top-hung window hardware system for aluminium windows, selected by profile, sash dimensions and the required opening configuration.
AT A GLANCE
84 kg at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
System
Aluminium top-hung windowLoad class
84 kgApplication

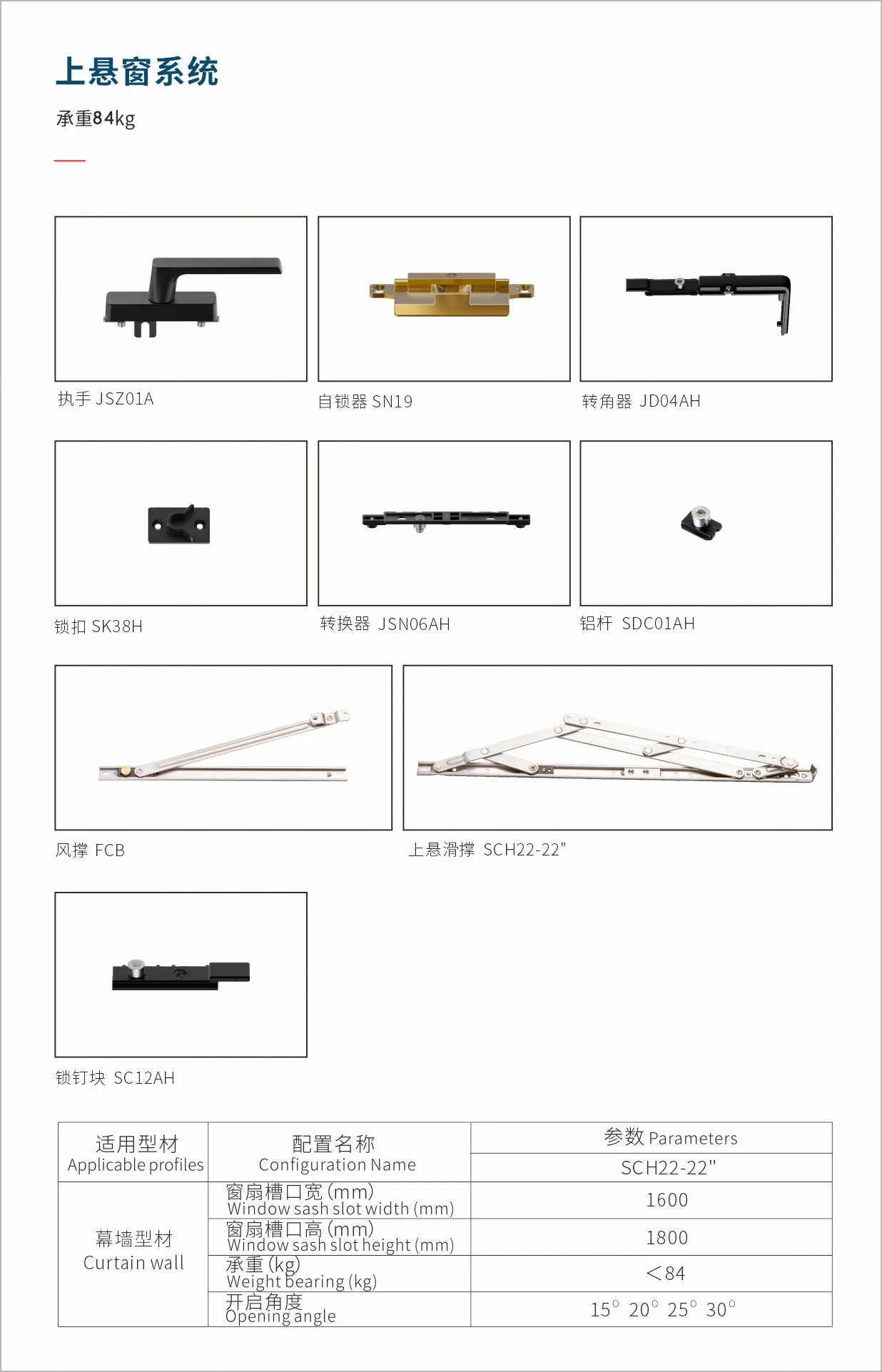

Top-hung window hardwareTECHNICAL DRAWING
Complete technical drawing
The factory drawing is matched to the confirmed top-hung configuration after the profile, sash size and opening arrangement are provided.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for 84 kg.
Configuration
84 kg top-hung window system
System type
Top-hung window hardware system
Load class
84 kg reference
Application
Top-hung aluminium window sash
Drawing reference
Factory drawing matched to the confirmed profile and sash configuration
CONFIGURATION
What to confirm
Use these references to select a compatible 84 kg hardware set.
Profile & groove
Profile section or groove drawing
Sash size & load
Sash dimensions and required load class
Opening direction
Confirm the required top-hung opening arrangement
Quantity & destination
Required quantity and delivery country
REQUEST MATCHING
Match 84 kg to your window system
Send a 84 kg reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
