Model
U-NPX100TILT & TURN
MODEL
U-NPX100 tilt and turn hardware system for uPVC windows and doors
U-NPX100 is a uPVC tilt and turn window hardware system with a catalogue load reference of 90 kg.
AT A GLANCE
U-NPX100 at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Window type
Tilt and turnLoad class

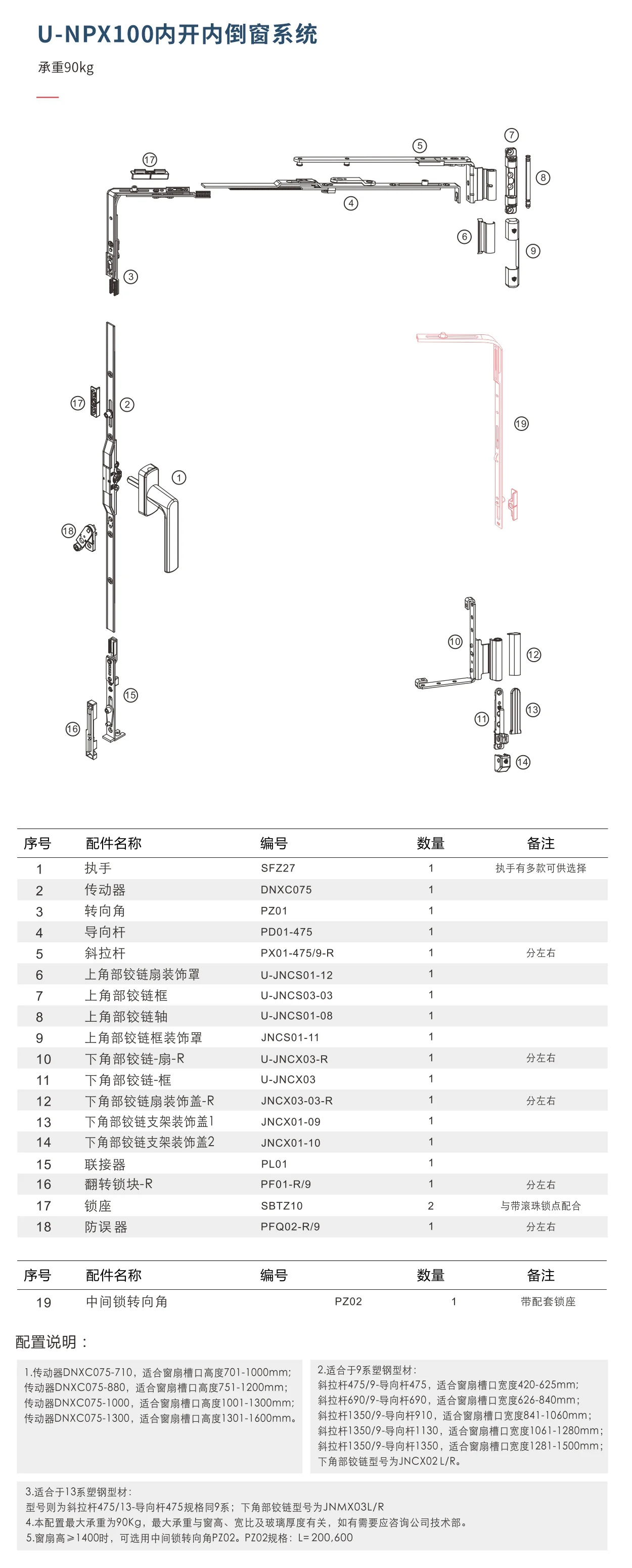

90 kgTECHNICAL DRAWING
Complete technical drawing
The catalogue product image identifies the model. Complete installation dimensions or project drawings can be supplied after the uPVC profile, opening type and existing hardware are confirmed.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for U-NPX100.
Model
U-NPX100
Product type
tilt and turn hardware system）
Application
Tilt and turn
Selection reference
Profile, opening type, existing hardware and quantity
CONFIGURATION
What to confirm
Use these references to select a compatible U-NPX100 hardware set.
Profile & groove
Provide the uPVC profile section and groove dimensions
Opening type
Confirm the window or door opening type shown in the catalogue
Existing hardware
Share the handle, hinge, lock or transmission parts already installed
Quantity & destination
State the required quantity and destination country
REQUEST MATCHING
Match U-NPX100 to your window system
Send a U-NPX100 reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
