Model
HLY02RAILING POSTS
MODEL
HLY02 railing post for glass railing systems
A railing post for glass balustrade and railing assemblies. Select it with the base fixing, glass arrangement and project load requirements.
AT A GLANCE
HLY02 at a glance
Product type
Railing postApplication

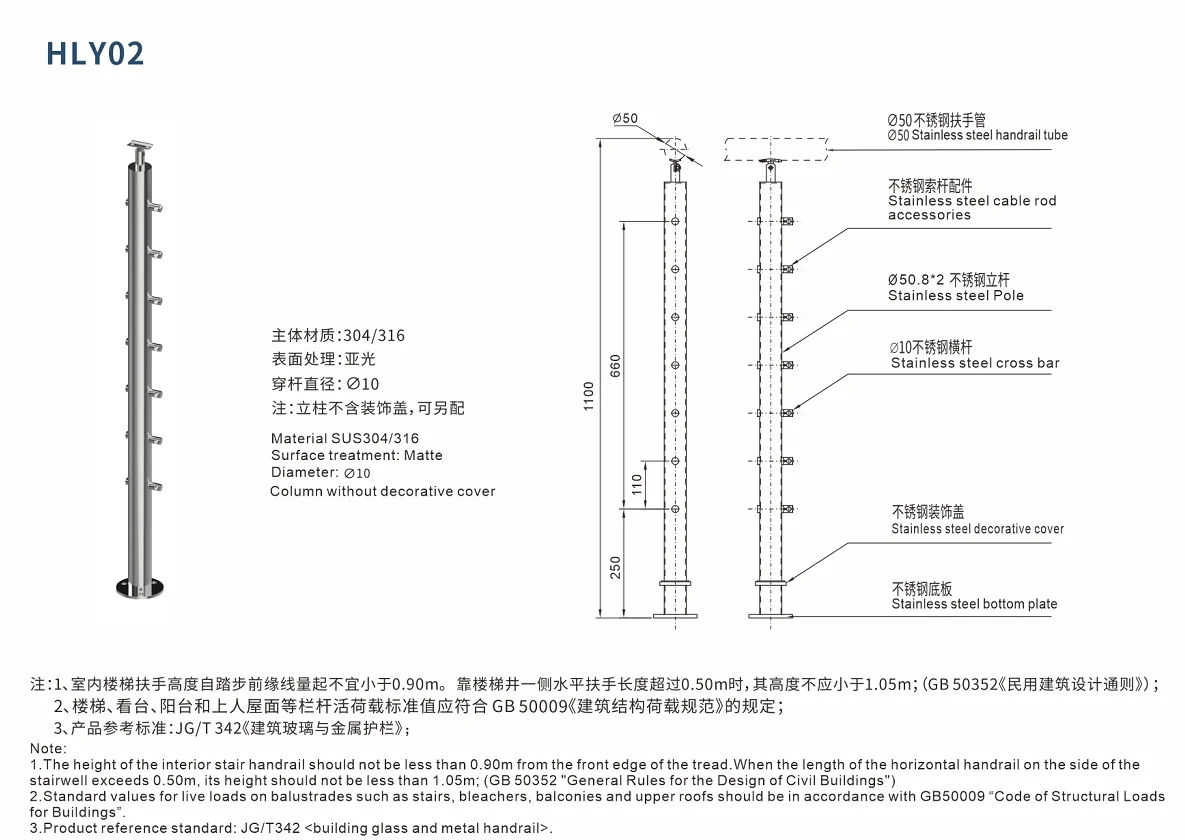

Glass railing and balustrade systemsTECHNICAL DRAWING
Complete technical drawing
The catalogue product image identifies the fitting model. Complete installation dimensions and project drawings can be reviewed after the glass, fixing node and design load are confirmed.
SPECIFICATIONS
Specifications
HLY02 、、。
Model
HLY02
Product type
Railing post
Application
Glass railing and balustrade systems
Selection reference
Base fixing, glass arrangement and project load
CONFIGURATION
What to confirm
Use these references to select a compatible HLY02 railing fitting.
Glass
Provide glass thickness, edge condition, holes or cut-outs where applicable
Fixing node
Share the base, post, fin or point-fixing node drawing
Load condition
State the design load, railing height and project location
Finish & quantity
Confirm finish, required quantity and destination country
REQUEST MATCHING
Match HLY02 to your railing project
HLY02 、，。
- Glass thickness and fixing layout
- Base, post or glass-fin node
- Design load, quantity and destination
