HDZ04APOINT FIXING-CLAWS
MODEL
HDZ04A point fixing claw for glass railing systems
A point fixing claw for connecting glass panels at defined fixing points. Confirm hole pattern, glass thickness and node arrangement.
AT A GLANCE
HDZ04A at a glance
Product type
Point fixing clawApplication
Glass railing and balustrade systemsTECHNICAL DRAWING

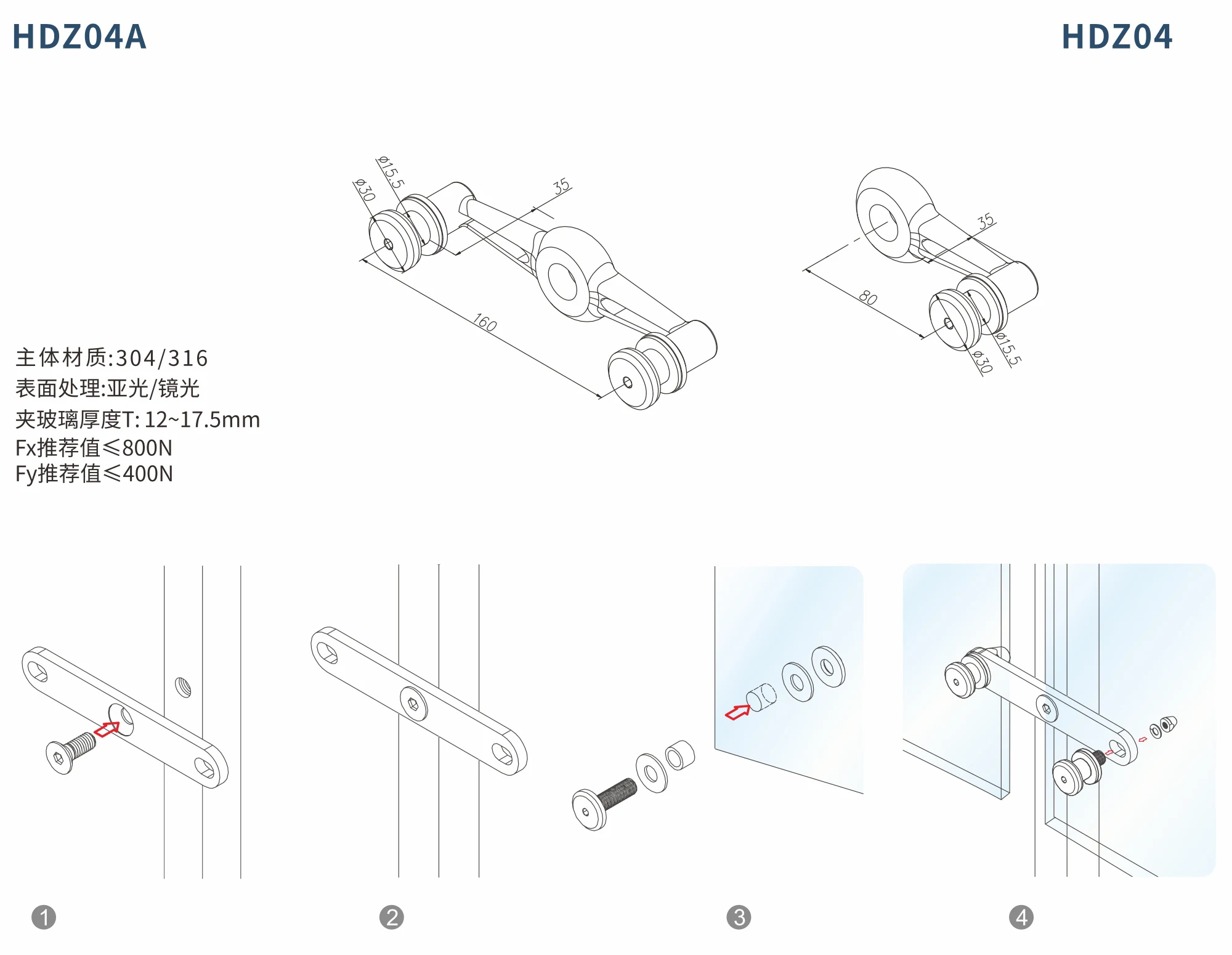

Complete technical drawing
The catalogue product image identifies the fitting model. Complete installation dimensions and project drawings can be reviewed after the glass, fixing node and design load are confirmed.
SPECIFICATIONS
Specifications
HDZ04A 、、。
Model
HDZ04A
Product type
Point fixing claw
Application
Glass railing and balustrade systems
Selection reference
Glass holes, thickness and fixing node
CONFIGURATION
What to confirm
Use these references to select a compatible HDZ04A railing fitting.
Glass
Provide glass thickness, edge condition, holes or cut-outs where applicable
Fixing node
Share the base, post, fin or point-fixing node drawing
Load condition
State the design load, railing height and project location
Finish & quantity
Confirm finish, required quantity and destination country
REQUEST MATCHING
Match HDZ04A to your railing project
HDZ04A 、，。
- Glass thickness and fixing layout
- Base, post or glass-fin node
- Design load, quantity and destination
