Model
HGL05GLASS FIXING-FITTINGS
MODEL
HGL05 glass fixing fitting for glass railing systems
A glass fixing fitting for completing the support and connection of railing glass. Confirm the base, glass and matching hardware arrangement.
AT A GLANCE
HGL05 at a glance
Product type
Glass fixing fittingApplication

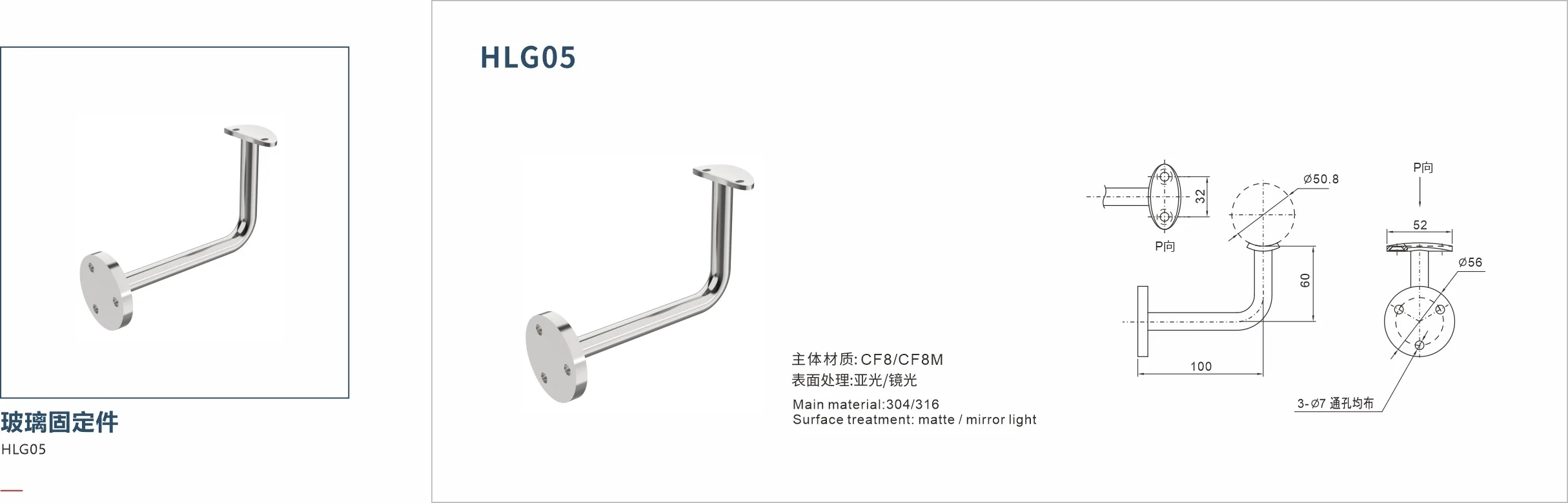

Glass railing and balustrade systemsTECHNICAL DRAWING
Complete technical drawing
The catalogue product image identifies the fitting model. Complete installation dimensions and project drawings can be reviewed after the glass, fixing node and design load are confirmed.
SPECIFICATIONS
Specifications
HGL05 、、。
Model
HGL05
Product type
Glass fixing fitting
Application
Glass railing and balustrade systems
Selection reference
Base, glass and matching hardware
CONFIGURATION
What to confirm
Use these references to select a compatible HGL05 railing fitting.
Glass
Provide glass thickness, edge condition, holes or cut-outs where applicable
Fixing node
Share the base, post, fin or point-fixing node drawing
Load condition
State the design load, railing height and project location
Finish & quantity
Confirm finish, required quantity and destination country
REQUEST MATCHING
Match HGL05 to your railing project
HGL05 、，。
- Glass thickness and fixing layout
- Base, post or glass-fin node
- Design load, quantity and destination
