Model
HBJ26GLASS CLAMPS
MODEL
HBJ26 glass clamp for glass railing systems
A glass clamp for securing a glass panel to the selected railing or balustrade structure. Confirm glass thickness and support position.
AT A GLANCE
HBJ26 at a glance
Product type
Glass clampApplication

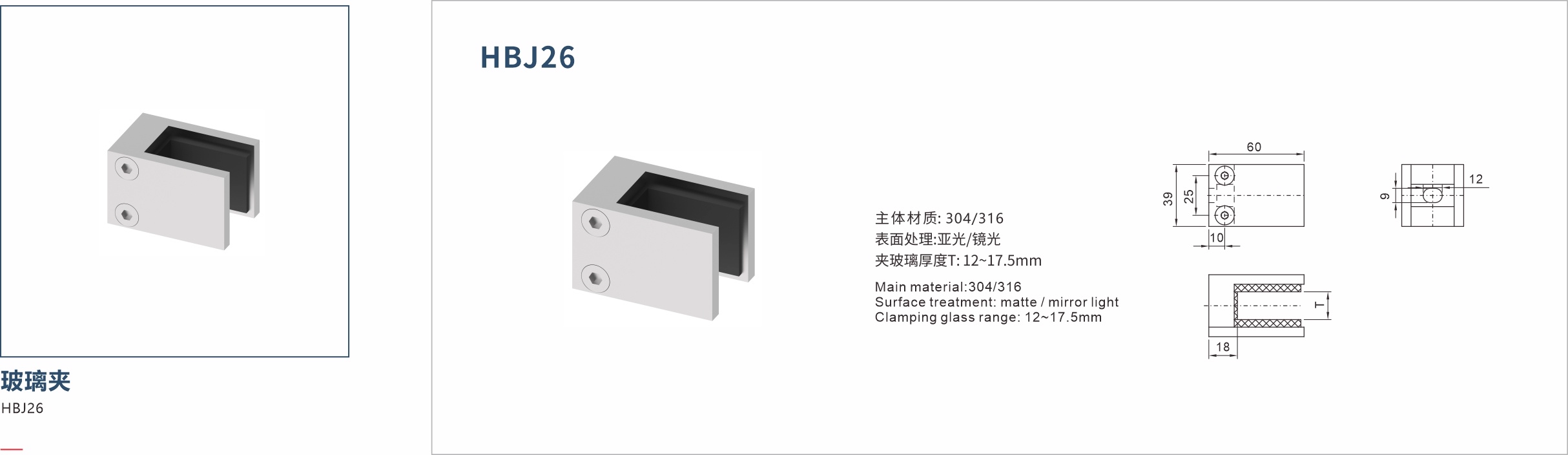

Glass railing and balustrade systemsTECHNICAL DRAWING
Complete technical drawing
The catalogue product image identifies the fitting model. Complete installation dimensions and project drawings can be reviewed after the glass, fixing node and design load are confirmed.
SPECIFICATIONS
Specifications
HBJ26 、、。
Model
HBJ26
Product type
Glass clamp
Application
Glass railing and balustrade systems
Selection reference
Glass thickness, edge condition and support position
CONFIGURATION
What to confirm
Use these references to select a compatible HBJ26 railing fitting.
Glass
Provide glass thickness, edge condition, holes or cut-outs where applicable
Fixing node
Share the base, post, fin or point-fixing node drawing
Load condition
State the design load, railing height and project location
Finish & quantity
Confirm finish, required quantity and destination country
REQUEST MATCHING
Match HBJ26 to your railing project
HBJ26 、，。
- Glass thickness and fixing layout
- Base, post or glass-fin node
- Design load, quantity and destination
