HLZ01 fin fixing claw for glass railing systems
A fin fixing claw for glass fin and railing connections. Confirm the fin arrangement, hole positions and fixing direction.
AT A GLANCE
HLZ01 at a glance
Product type
Fin fixing clawApplication

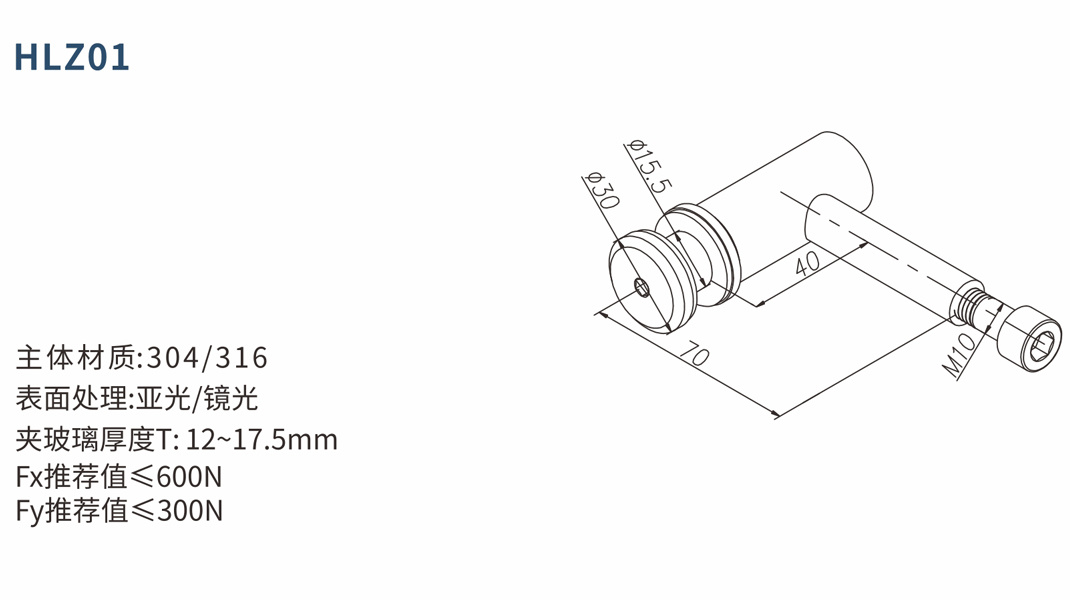

Glass railing and balustrade systemsTECHNICAL DRAWING
Complete technical drawing
The catalogue product image identifies the fitting model. Complete installation dimensions and project drawings can be reviewed after the glass, fixing node and design load are confirmed.
SPECIFICATIONS
Specifications
HLZ01 、、。
Model
HLZ01
Product type
Fin fixing claw
Application
Glass railing and balustrade systems
Selection reference
Glass fin, holes and fixing direction
CONFIGURATION
What to confirm
Use these references to select a compatible HLZ01 railing fitting.
Glass
Provide glass thickness, edge condition, holes or cut-outs where applicable
Fixing node
Share the base, post, fin or point-fixing node drawing
Load condition
State the design load, railing height and project location
Finish & quantity
Confirm finish, required quantity and destination country
REQUEST MATCHING
Match HLZ01 to your railing project
HLZ01 、，。
- Glass thickness and fixing layout
- Base, post or glass-fin node
- Design load, quantity and destination
