SMLZ02BTIE ROD-SUPPORTS
MODEL
SMLZ02B curtain wall fitting for curtain wall glass
SMLZ02B is a tie-rod support rod for curtain wall support structures. Confirm node geometry and load conditions before selection.
AT A GLANCE
SMLZ02B at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Product type
Tie-rod support rodApplication
Curtain wall glass connectionsTECHNICAL DRAWING

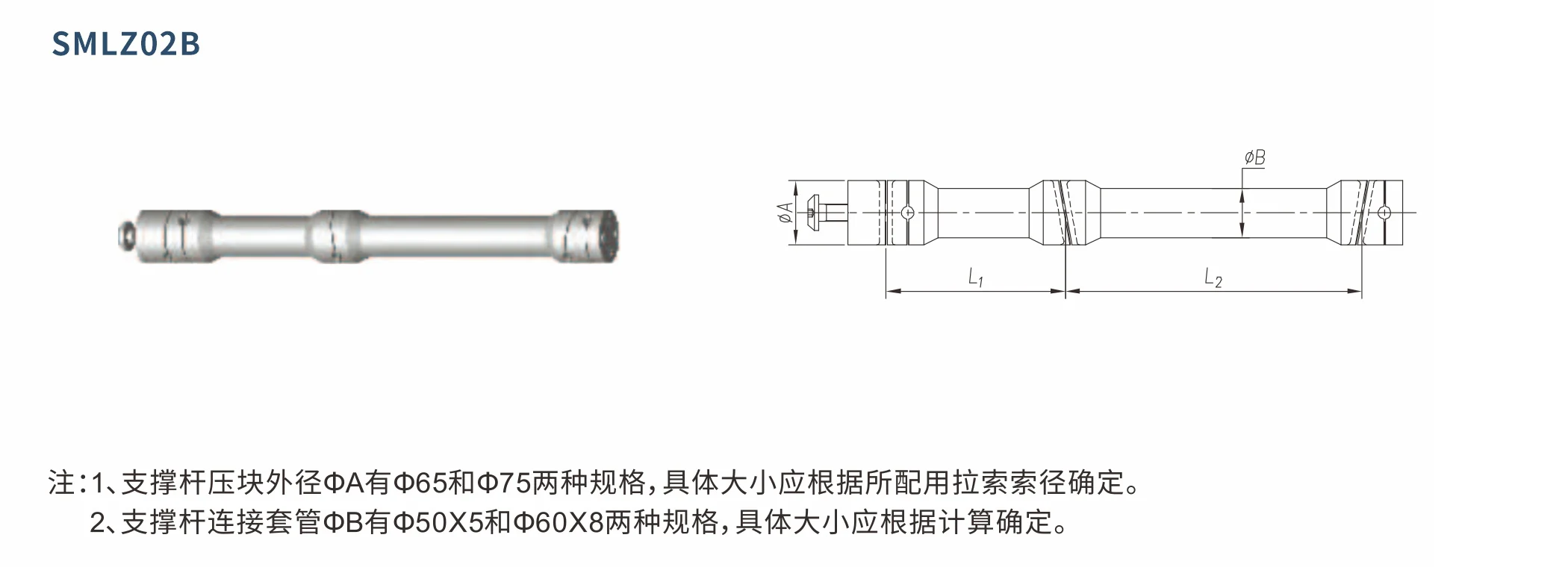

Complete technical drawing
The catalogue product image identifies the fitting model. Complete installation dimensions and project drawings can be reviewed after the glass, fixing node and load conditions are confirmed.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for SMLZ02B.
Model
SMLZ02B
Product type
curtain wall fitting）
Application
Point-fixed or supported curtain wall glass
Selection reference
Glass, holes, fixing node and project load conditions
CONFIGURATION
What to confirm
Use these references to select a compatible SMLZ02B hardware set.
Glass & holes
Provide glass thickness, hole diameter, spacing and edge distance
Fixing method
Confirm the tie-rod support rod connection method
Node & load
Share the curtain wall node drawing and design load conditions
Material & quantity
State finish, required quantity and destination country
REQUEST MATCHING
Match SMLZ02B to your window system
Send a SMLZ02B reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
