Rib spider fittingSPIDER FITTINGS
MODEL
Rib spider fitting curtain wall fitting for curtain wall glass
A rib spider fitting for a rib-supported point-fixed curtain wall connection.
AT A GLANCE
Rib spider fitting at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Product type
Rib spider fittingApplication
Curtain wall glass connectionsTECHNICAL DRAWING

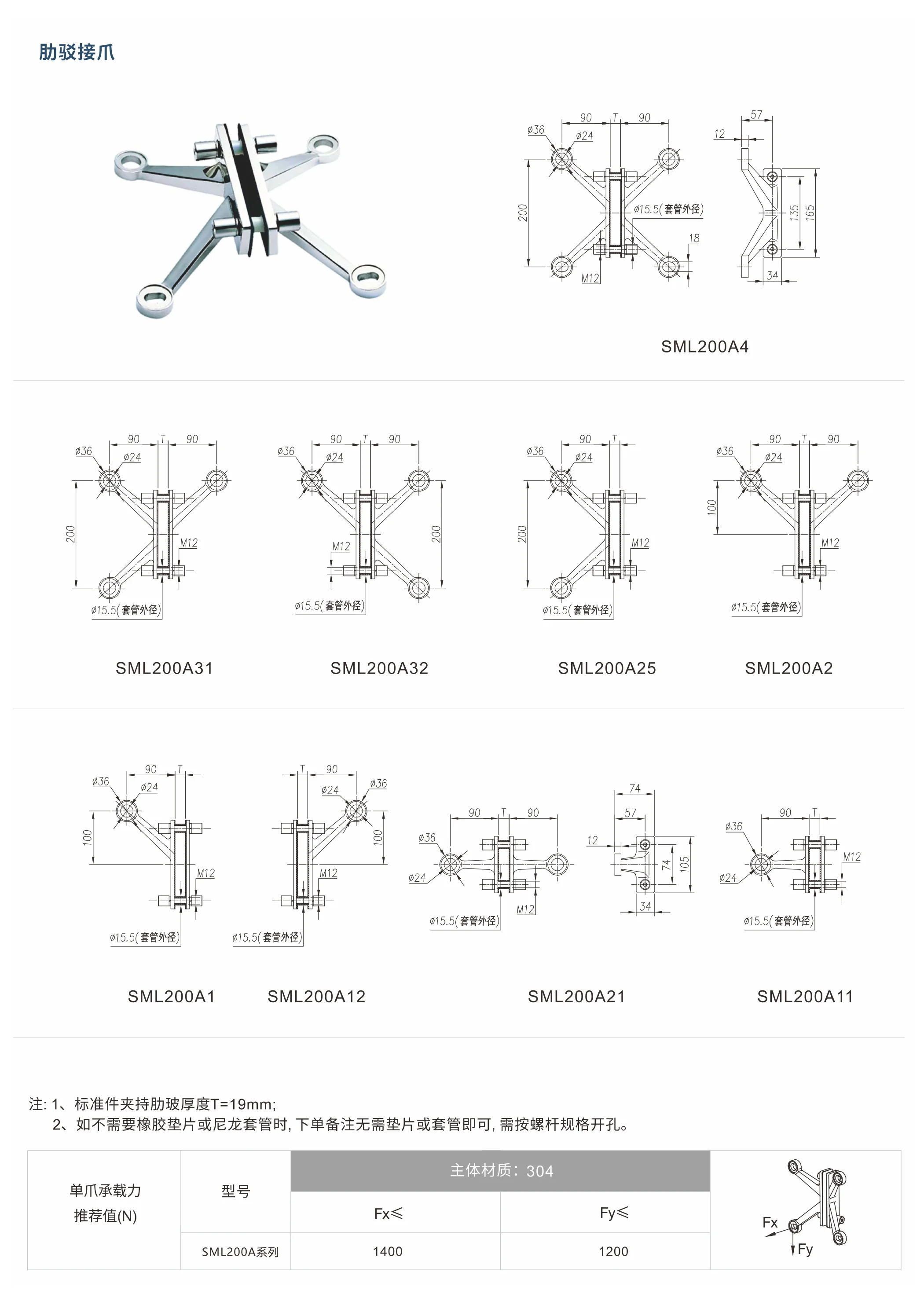

Complete technical drawing
The catalogue product image identifies the fitting model. Complete installation dimensions and project drawings can be reviewed after the glass, fixing node and load conditions are confirmed.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for Rib spider fitting.
Model
Rib spider fitting
Product type
curtain wall fitting）
Application
Point-fixed or supported curtain wall glass
Selection reference
Glass, holes, fixing node and project load conditions
CONFIGURATION
What to confirm
Use these references to select a compatible Rib spider fitting hardware set.
Glass & holes
Provide glass thickness, hole diameter, spacing and edge distance
Fixing method
Confirm the rib spider fitting connection method
Node & load
Share the curtain wall node drawing and design load conditions
Material & quantity
State finish, required quantity and destination country
REQUEST MATCHING
Match Rib spider fitting to your window system
Send a Rib spider fitting reference, profile drawing or site photo to start the matching review.
