SMBDJ12 / SMBDJ22GLASS HANGING-CLAMPS
MODEL
SMBDJ12 / SMBDJ22 curtain wall fitting for curtain wall glass
SMBDJ12 / SMBDJ22 are glass hanging clamp options for curtain wall glass support connections.
AT A GLANCE
SMBDJ12 / SMBDJ22 at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Product type
Glass hanging clampApplication
Curtain wall glass connectionsTECHNICAL DRAWING

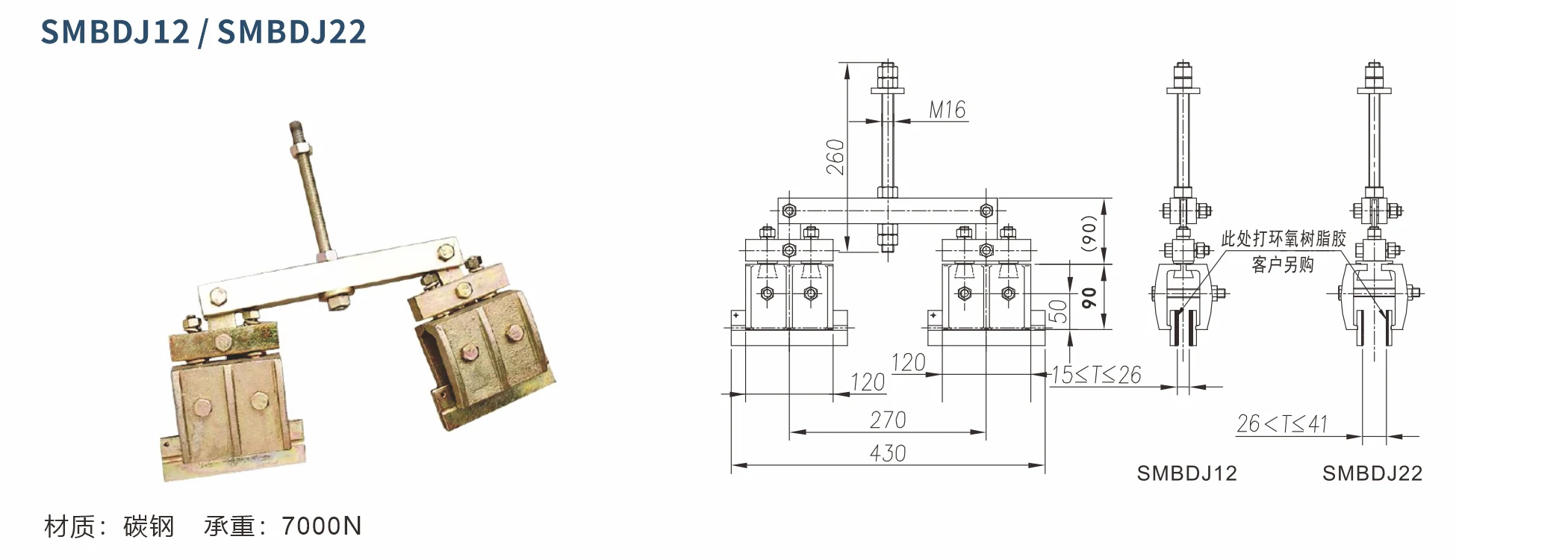

Complete technical drawing
The catalogue product image identifies the fitting model. Complete installation dimensions and project drawings can be reviewed after the glass, fixing node and load conditions are confirmed.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for SMBDJ12 / SMBDJ22.
Model
SMBDJ12 / SMBDJ22
Product type
curtain wall fitting）
Application
Point-fixed or supported curtain wall glass
Selection reference
Glass, holes, fixing node and project load conditions
CONFIGURATION
What to confirm
Use these references to select a compatible SMBDJ12 / SMBDJ22 hardware set.
Glass & holes
Provide glass thickness, hole diameter, spacing and edge distance
Fixing method
Confirm the glass hanging clamp connection method
Node & load
Share the curtain wall node drawing and design load conditions
Material & quantity
State finish, required quantity and destination country
REQUEST MATCHING
Match SMBDJ12 / SMBDJ22 to your window system
Send a SMBDJ12 / SMBDJ22 reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
