Model
T15FLOATING ROUTELS
MODEL
T15 curtain wall fitting for curtain wall glass
T15 is a floating-head routel for point-fixed curtain wall glass connections. Select it after checking glass holes and the connection node.
AT A GLANCE
T15 at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Product type
Floating-head routelApplication

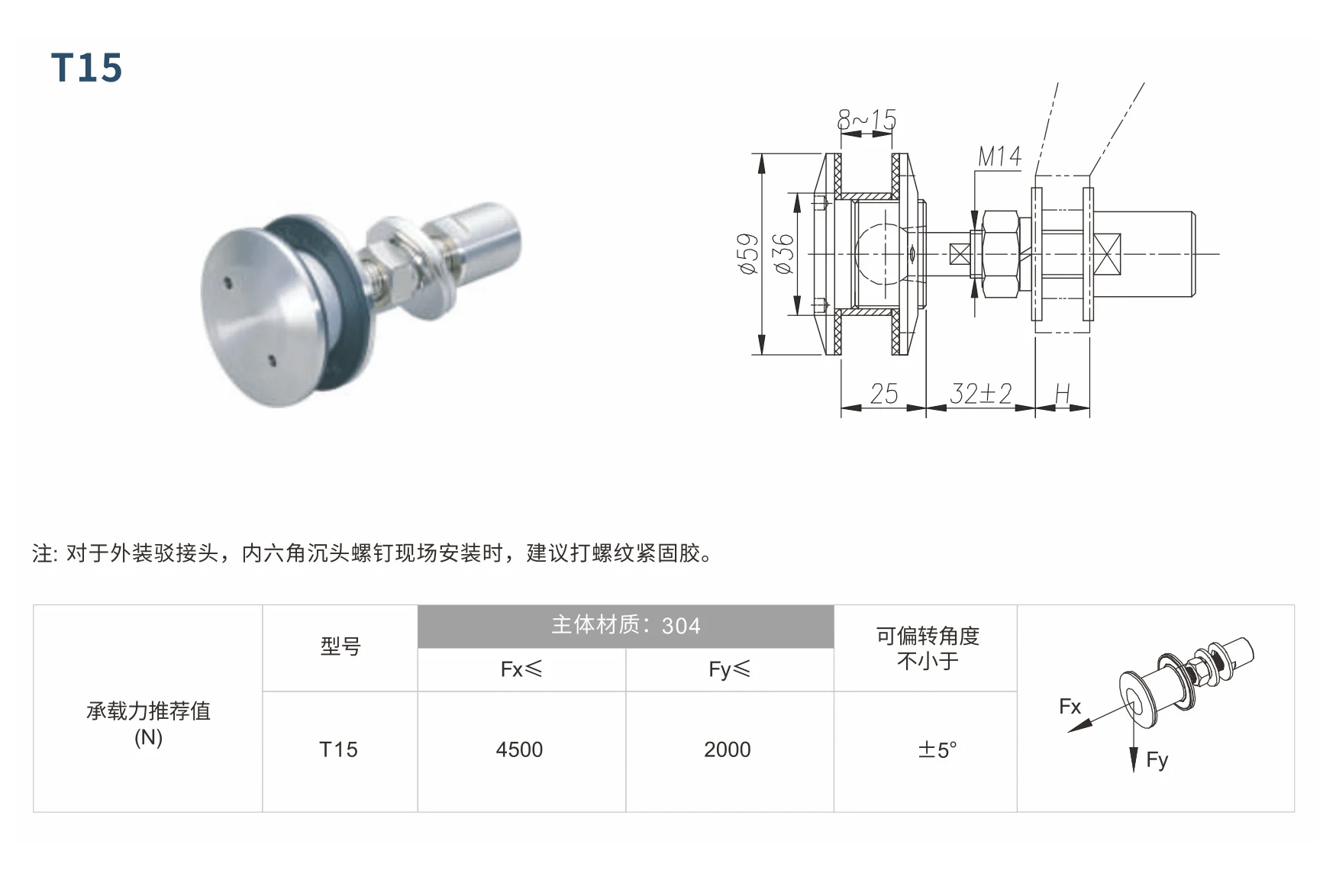

Curtain wall glass connectionsTECHNICAL DRAWING
Complete technical drawing
The catalogue product image identifies the fitting model. Complete installation dimensions and project drawings can be reviewed after the glass, fixing node and load conditions are confirmed.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for T15.
Model
T15
Product type
curtain wall fitting）
Application
Point-fixed or supported curtain wall glass
Selection reference
Glass, holes, fixing node and project load conditions
CONFIGURATION
What to confirm
Use these references to select a compatible T15 hardware set.
Glass & holes
Provide glass thickness, hole diameter, spacing and edge distance
Fixing method
Confirm the floating-head routel connection method
Node & load
Share the curtain wall node drawing and design load conditions
Material & quantity
State finish, required quantity and destination country
REQUEST MATCHING
Match T15 to your window system
Send a T15 reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
