Countersunk waterproof routel curtain wall fitting for curtain wall glass
A countersunk waterproof routel for point-fixed glass connections where the countersunk and waterproofing requirements are defined by the project node.
AT A GLANCE
Countersunk waterproof routel at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Product type
Countersunk waterproof routelApplication
Curtain wall glass connectionsTECHNICAL DRAWING
Complete technical drawing

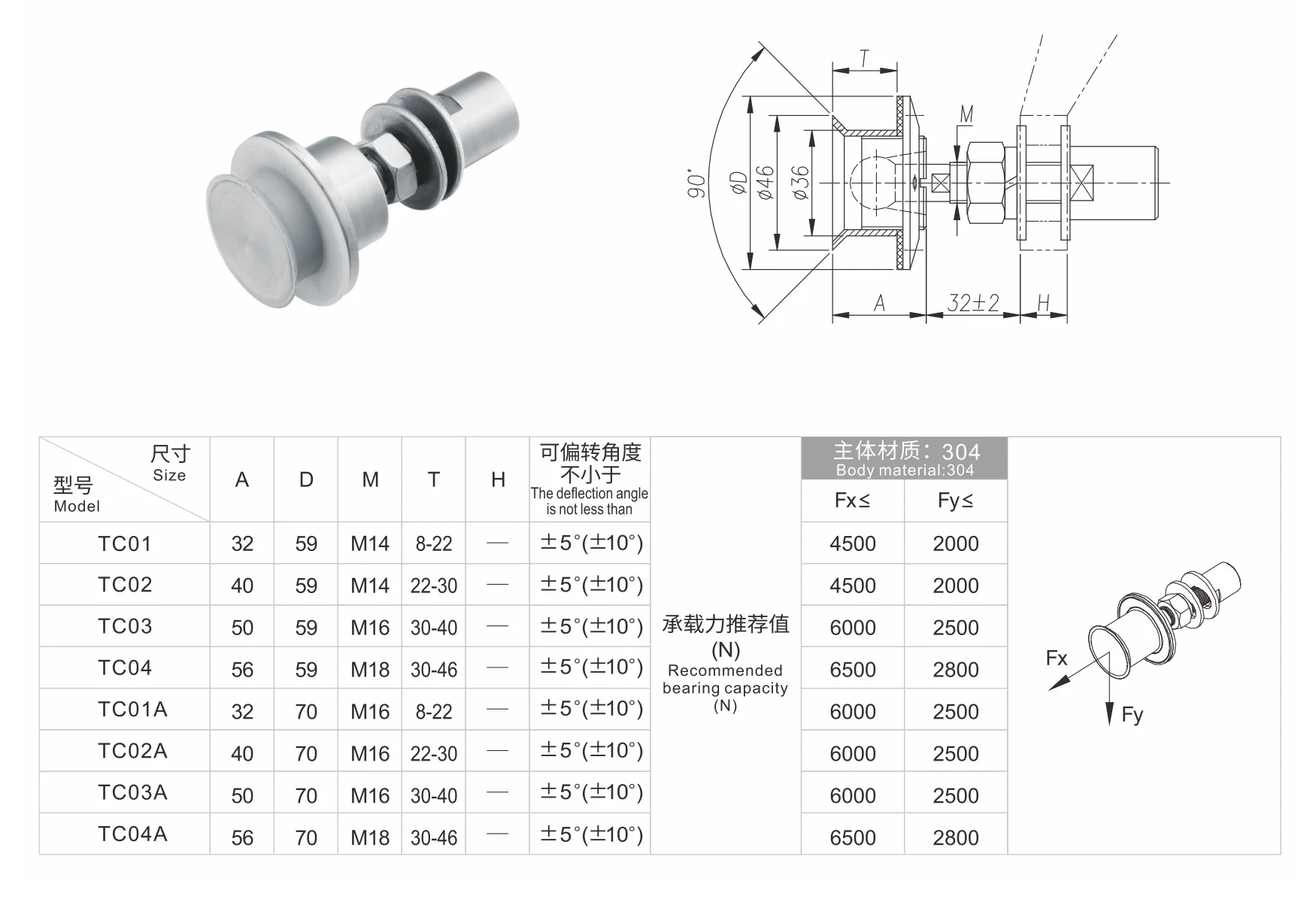

The catalogue product image identifies the fitting model. Complete installation dimensions and project drawings can be reviewed after the glass, fixing node and load conditions are confirmed.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for Countersunk waterproof routel.
Model
Countersunk waterproof routel
Product type
curtain wall fitting）
Application
Point-fixed or supported curtain wall glass
Selection reference
Glass, holes, fixing node and project load conditions
CONFIGURATION
What to confirm
Use these references to select a compatible Countersunk waterproof routel hardware set.
Glass & holes
Provide glass thickness, hole diameter, spacing and edge distance
Fixing method
Confirm the countersunk waterproof routel connection method
Node & load
Share the curtain wall node drawing and design load conditions
Material & quantity
State finish, required quantity and destination country
REQUEST MATCHING
Match Countersunk waterproof routel to your window system
Send a Countersunk waterproof routel reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
