SMJ120D Series curtain wall fitting for curtain wall glass
SMJ120D Series is a rectangular glass clamp for curtain wall glass support applications.
AT A GLANCE
SMJ120D Series at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Product type
Rectangular clampApplication
Curtain wall glass connectionsTECHNICAL DRAWING

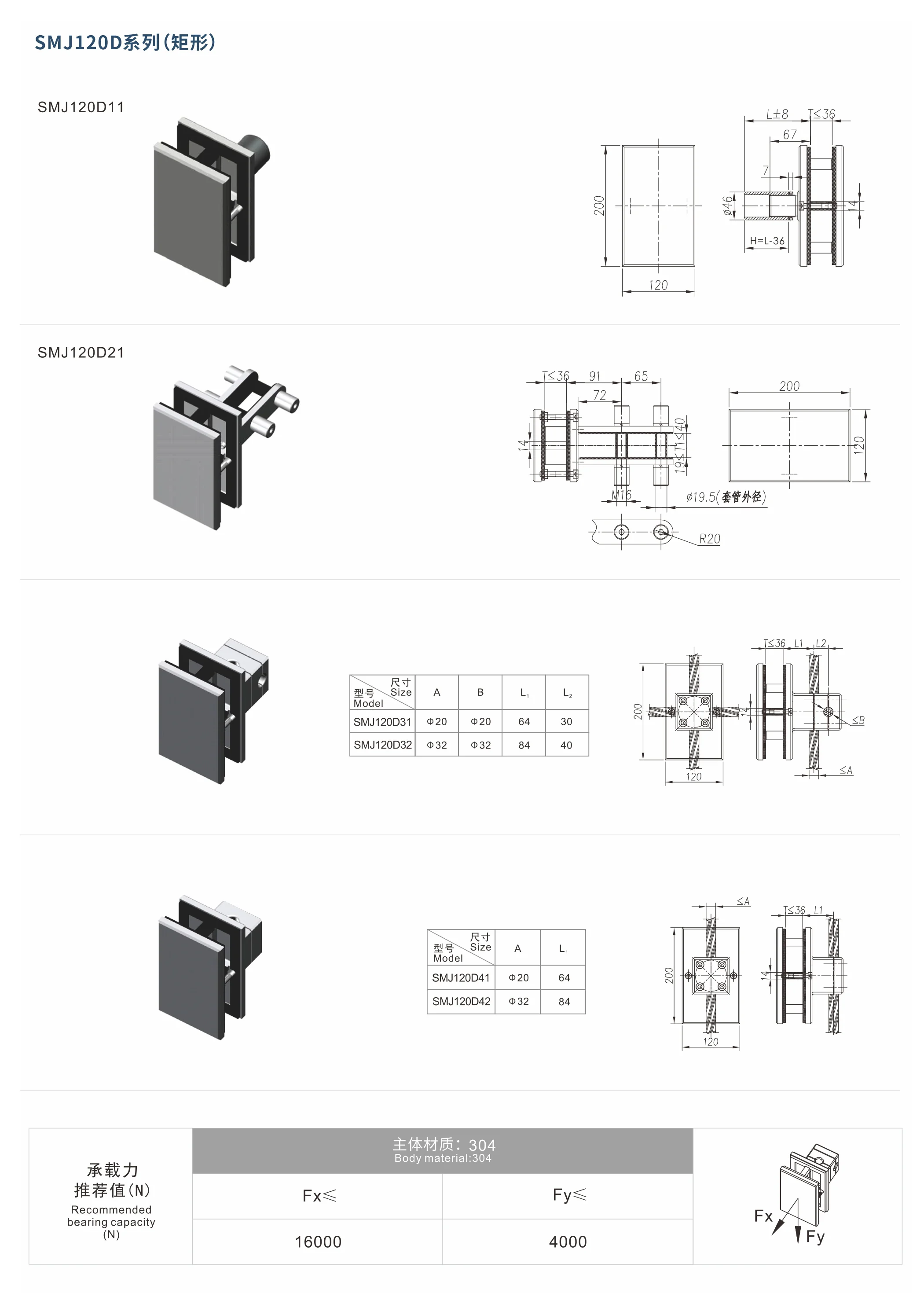

Complete technical drawing
The catalogue product image identifies the fitting model. Complete installation dimensions and project drawings can be reviewed after the glass, fixing node and load conditions are confirmed.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for SMJ120D Series.
Model
SMJ120D Series
Product type
curtain wall fitting）
Application
Point-fixed or supported curtain wall glass
Selection reference
Glass, holes, fixing node and project load conditions
CONFIGURATION
What to confirm
Use these references to select a compatible SMJ120D Series hardware set.
Glass & holes
Provide glass thickness, hole diameter, spacing and edge distance
Fixing method
Confirm the rectangular clamp connection method
Node & load
Share the curtain wall node drawing and design load conditions
Material & quantity
State finish, required quantity and destination country
REQUEST MATCHING
Match SMJ120D Series to your window system
Send a SMJ120D Series reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
