Model
SMJ120A SeriesCLAMPS
MODEL
SMJ120A Series curtain wall fitting for curtain wall glass
SMJ120A Series is a flower-shaped glass clamp for curtain wall glass support applications.
AT A GLANCE
SMJ120A Series at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Product type
Flower-shaped clampApplication

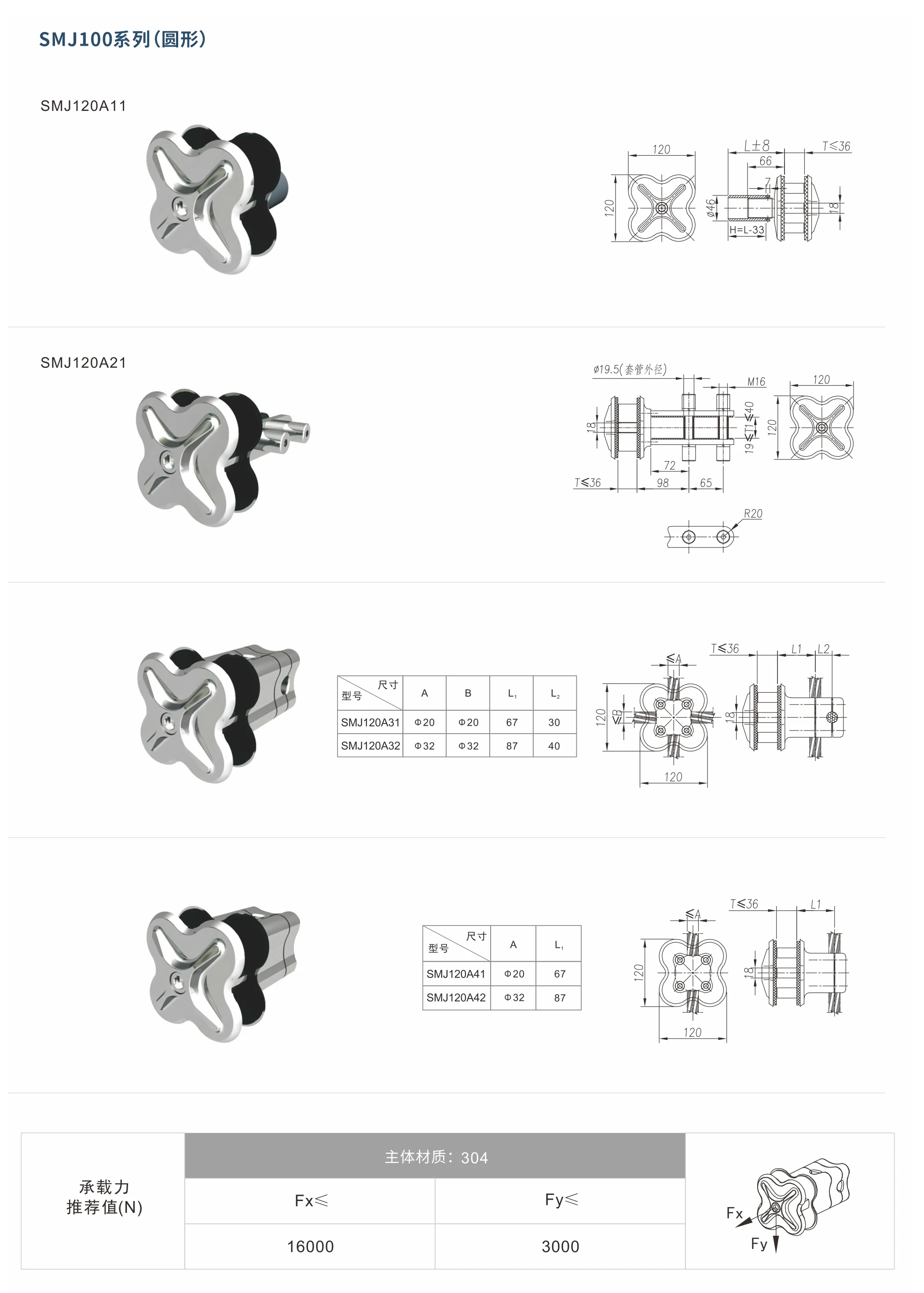

Curtain wall glass connectionsTECHNICAL DRAWING
Complete technical drawing
The catalogue product image identifies the fitting model. Complete installation dimensions and project drawings can be reviewed after the glass, fixing node and load conditions are confirmed.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for SMJ120A Series.
Model
SMJ120A Series
Product type
curtain wall fitting）
Application
Point-fixed or supported curtain wall glass
Selection reference
Glass, holes, fixing node and project load conditions
CONFIGURATION
What to confirm
Use these references to select a compatible SMJ120A Series hardware set.
Glass & holes
Provide glass thickness, hole diameter, spacing and edge distance
Fixing method
Confirm the flower-shaped clamp connection method
Node & load
Share the curtain wall node drawing and design load conditions
Material & quantity
State finish, required quantity and destination country
REQUEST MATCHING
Match SMJ120A Series to your window system
Send a SMJ120A Series reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
