Model
JNM02BHINGES
MODEL
JNM02B window hardware component for uPVC windows and doors
JNM02B is a hinge listed for uPVC door and window hardware. Confirm the frame, sash and load requirements for the selected system.
AT A GLANCE
JNM02B at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Component
HingeApplication

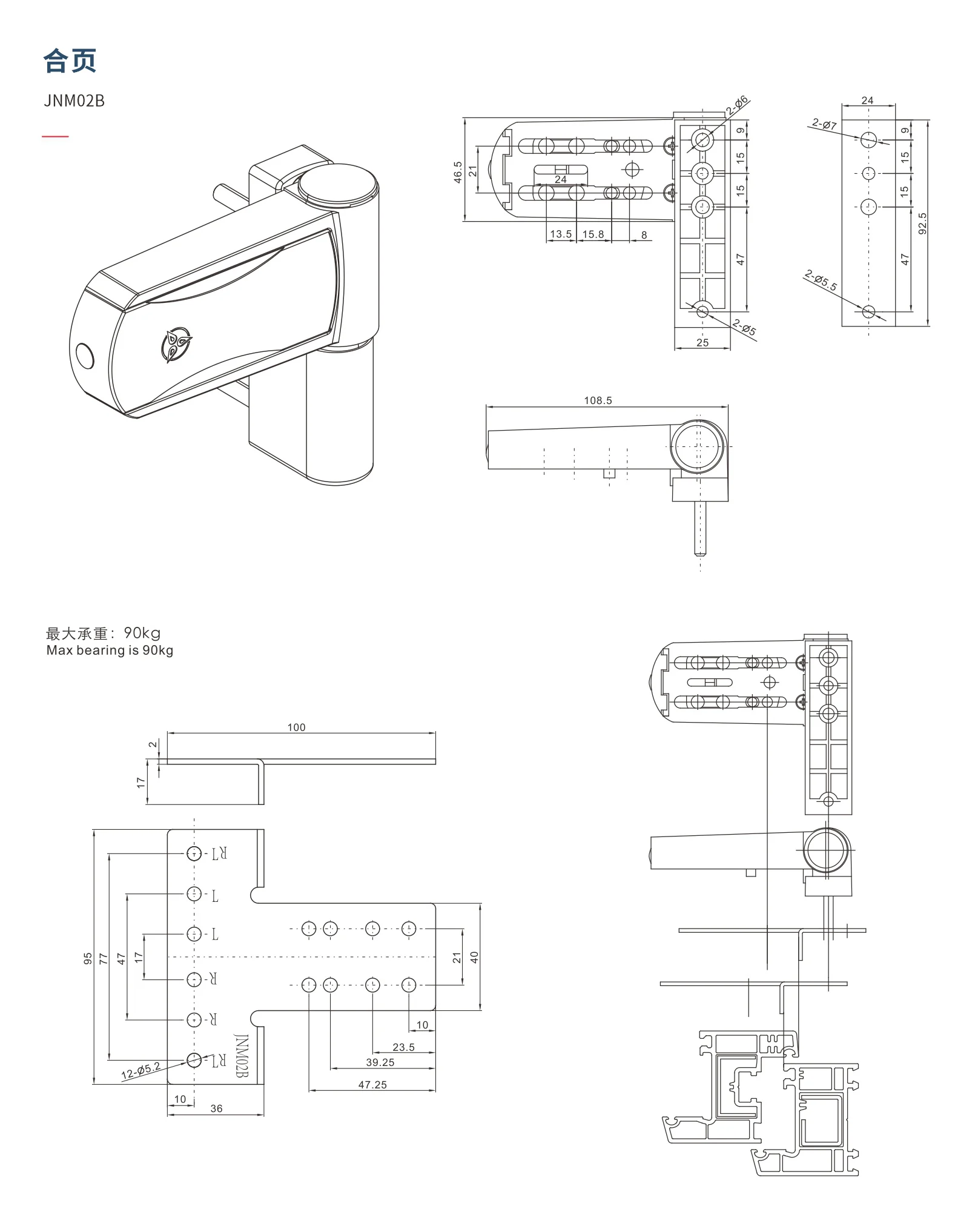

uPVC window and door hardwareTECHNICAL DRAWING
Complete technical drawing
The catalogue product image identifies the model. Complete installation dimensions or project drawings can be supplied after the uPVC profile, opening type and existing hardware are confirmed.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for JNM02B.
Model
JNM02B
Product type
window hardware component）
Application
Hinge
Selection reference
Profile, opening type, existing hardware and quantity
CONFIGURATION
What to confirm
Use these references to select a compatible JNM02B hardware set.
Profile & groove
Provide the uPVC profile section and groove dimensions
Opening type
Confirm the window or door opening type shown in the catalogue
Existing hardware
Share the handle, hinge, lock or transmission parts already installed
Quantity & destination
State the required quantity and destination country
REQUEST MATCHING
Match JNM02B to your window system
Send a JNM02B reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
