MODEL
SMZ22 door hardware component for uPVC windows and doors
SMZ22 is a door handle listed for uPVC door hardware. Confirm the profile, spindle and lock-box pairing for the selected door system.
AT A GLANCE
SMZ22 at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Component
Door handleApplication

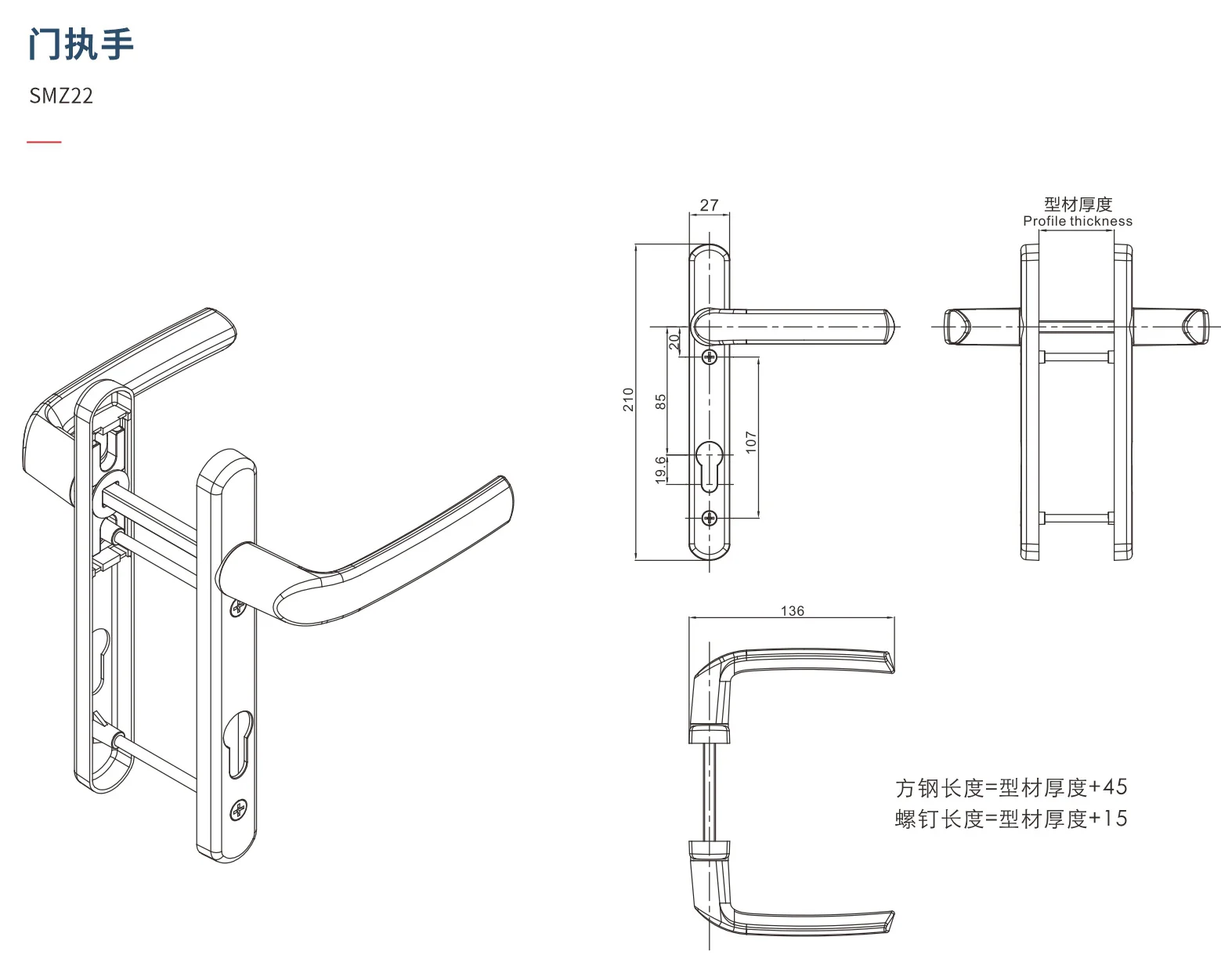

uPVC window and door hardwareTECHNICAL DRAWING
Complete technical drawing
The catalogue product image identifies the model. Complete installation dimensions or project drawings can be supplied after the uPVC profile, opening type and existing hardware are confirmed.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for SMZ22.
Model
SMZ22
Product type
door hardware component）
Application
Door handle
Selection reference
Profile, opening type, existing hardware and quantity
CONFIGURATION
What to confirm
Use these references to select a compatible SMZ22 hardware set.
Profile & groove
Provide the uPVC profile section and groove dimensions
Opening type
Confirm the window or door opening type shown in the catalogue
Existing hardware
Share the handle, hinge, lock or transmission parts already installed
Quantity & destination
State the required quantity and destination country
REQUEST MATCHING
Match SMZ22 to your window system
Send a SMZ22 reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
