Model
HPD22FRICTION STAYS
MODEL
HPD22 window hardware component for uPVC windows and doors
HPD22 is a friction stay listed for uPVC window hardware. Confirm stay length, profile and sash weight for the selected window.
AT A GLANCE
HPD22 at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Component
Friction stayApplication
uPVC window and door hardwareTECHNICAL DRAWING

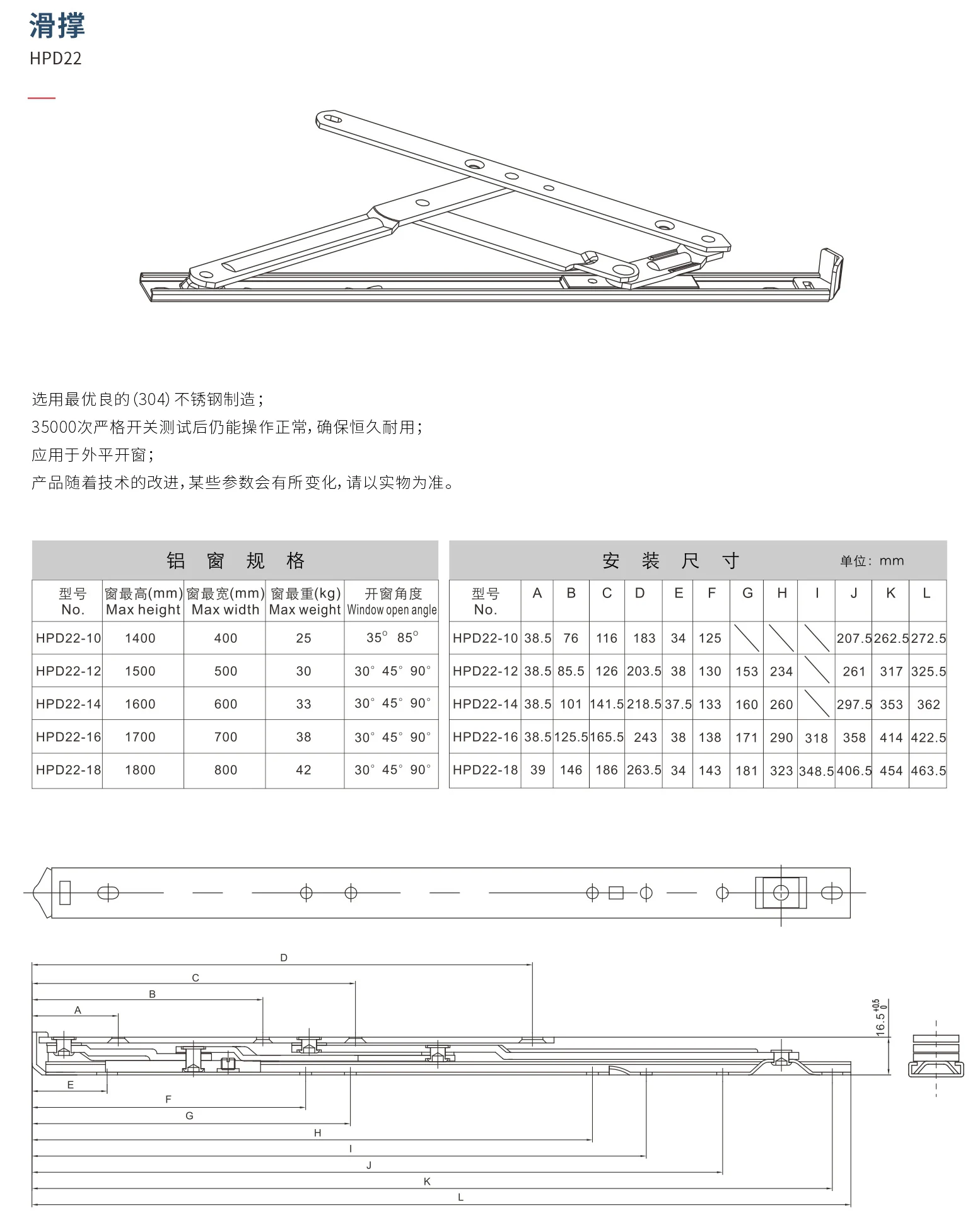

Complete technical drawing
The catalogue product image identifies the model. Complete installation dimensions or project drawings can be supplied after the uPVC profile, opening type and existing hardware are confirmed.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for HPD22.
Model
HPD22
Product type
window hardware component）
Application
Friction stay
Selection reference
Profile, opening type, existing hardware and quantity
CONFIGURATION
What to confirm
Use these references to select a compatible HPD22 hardware set.
Profile & groove
Provide the uPVC profile section and groove dimensions
Opening type
Confirm the window or door opening type shown in the catalogue
Existing hardware
Share the handle, hinge, lock or transmission parts already installed
Quantity & destination
State the required quantity and destination country
REQUEST MATCHING
Match HPD22 to your window system
Send a HPD22 reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
