Model
JNCS03CORNER HINGES
MODEL
JNCS03 window hardware component for uPVC windows and doors
JNCS03 is a window corner hinge listed for uPVC hardware. Confirm the window system, corner position and existing hinge layout.
AT A GLANCE
JNCS03 at a glance
Review the model, operating reference, dimensions and load information before confirming a final configuration.
Component
Window corner hingeApplication

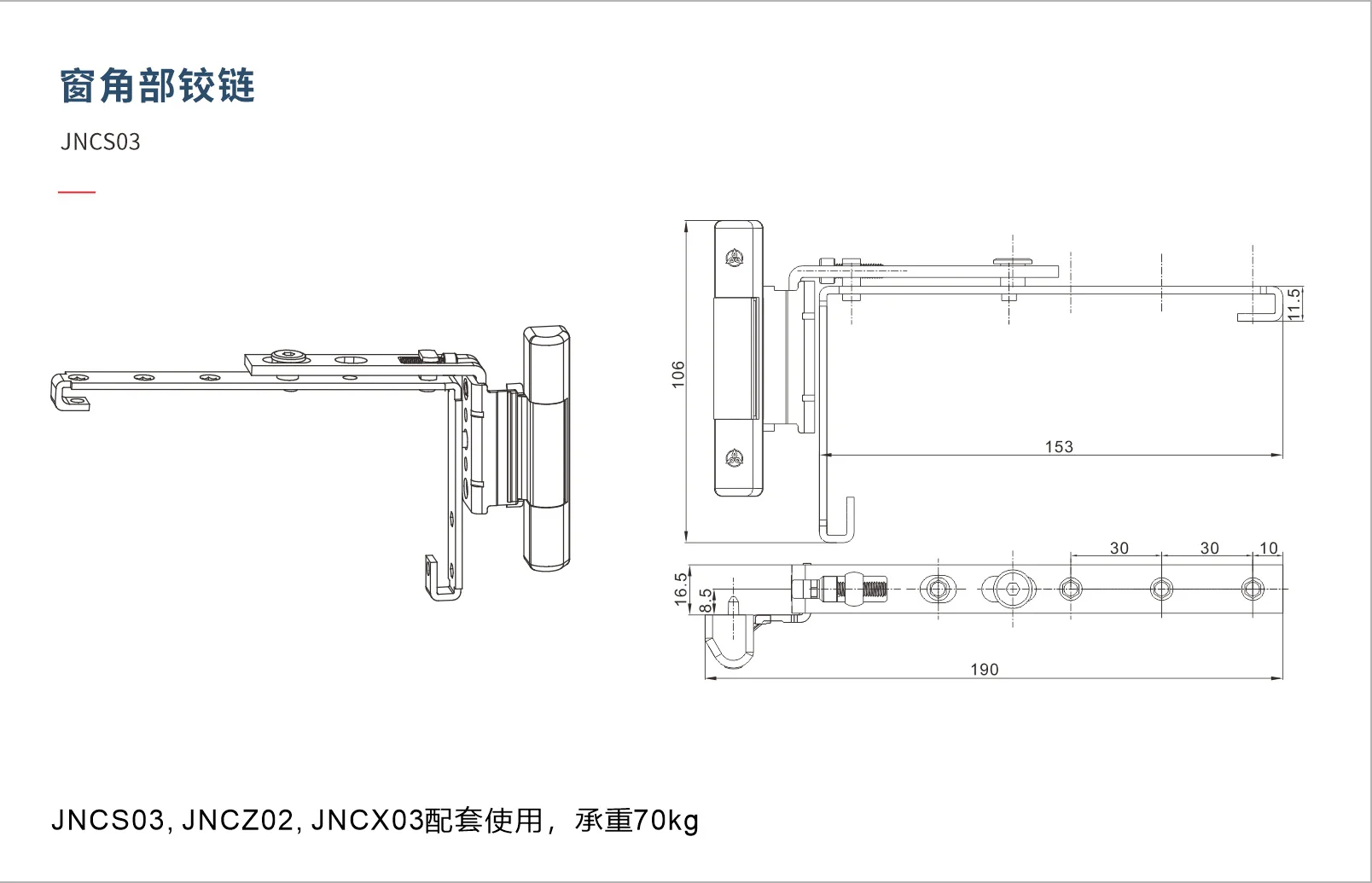

uPVC window and door hardwareTECHNICAL DRAWING
Complete technical drawing
The catalogue product image identifies the model. Complete installation dimensions or project drawings can be supplied after the uPVC profile, opening type and existing hardware are confirmed.
SPECIFICATIONS
Specifications
Model, application, size, load and adjustment references for JNCS03.
Model
JNCS03
Product type
window hardware component）
Application
Window corner hinge
Selection reference
Profile, opening type, existing hardware and quantity
CONFIGURATION
What to confirm
Use these references to select a compatible JNCS03 hardware set.
Profile & groove
Provide the uPVC profile section and groove dimensions
Opening type
Confirm the window or door opening type shown in the catalogue
Existing hardware
Share the handle, hinge, lock or transmission parts already installed
Quantity & destination
State the required quantity and destination country
REQUEST MATCHING
Match JNCS03 to your window system
Send a JNCS03 reference, profile drawing or site photo to start the matching review.
- Model or existing hardware
- Profile and opening type
- Sash weight and quantity
