Model
SXMK-L300FLOOR PIVOTS
MODEL
SXMK-L300 floor pivot for glass doors
A floor pivot for the bottom rotation and support of a door leaf. Select it with the complete door control arrangement.
AT A GLANCE
SXMK-L300 at a glance
Product type
Floor pivotApplication

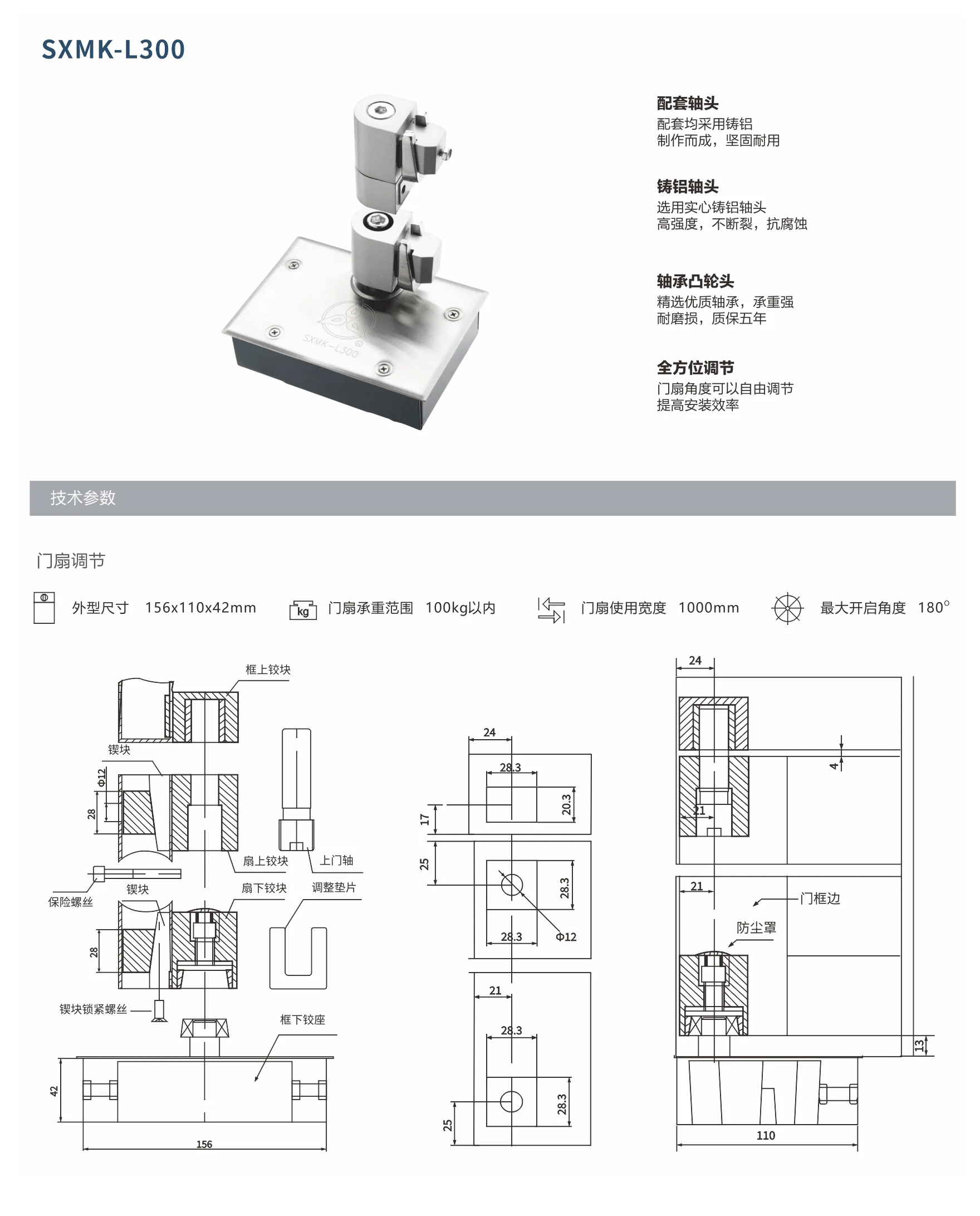

Glass door and door control hardwareTECHNICAL DRAWING
Complete technical drawing
The catalogue product image identifies the model. Complete installation dimensions and project drawings can be reviewed after the door leaf, glass preparation and installation method are confirmed.
SPECIFICATIONS
Specifications
SXMK-L300 、、。
Model
SXMK-L300
Product type
Floor pivot
Application
Glass door and door control hardware
Selection reference
Door leaf size, weight, pivot position and matching door hardware
CONFIGURATION
What to confirm
Use these references to select a compatible SXMK-L300 door-control set.
Door type
State whether the project uses a glass door, framed door or metal door
Leaf size & weight
Provide door leaf width, height and estimated weight
Glass & preparation
Share glass thickness, cut-outs, holes and edge distances where applicable
Installation & quantity
Confirm floor, surface, top or bottom installation and required quantity
REQUEST MATCHING
Match SXMK-L300 to your door project
SXMK-L300 、，。
- Door type and opening direction
- Leaf size, weight and glass thickness
- Installation method and quantity
