Model
SXMK-730CHDOOR CLIPS
MODEL
SXMK-730CH glass door clip for glass doors
A glass door clip for connecting the glass leaf with the selected door control hardware. Confirm glass thickness and clip position.
AT A GLANCE
SXMK-730CH at a glance
Product type
Glass door clipApplication

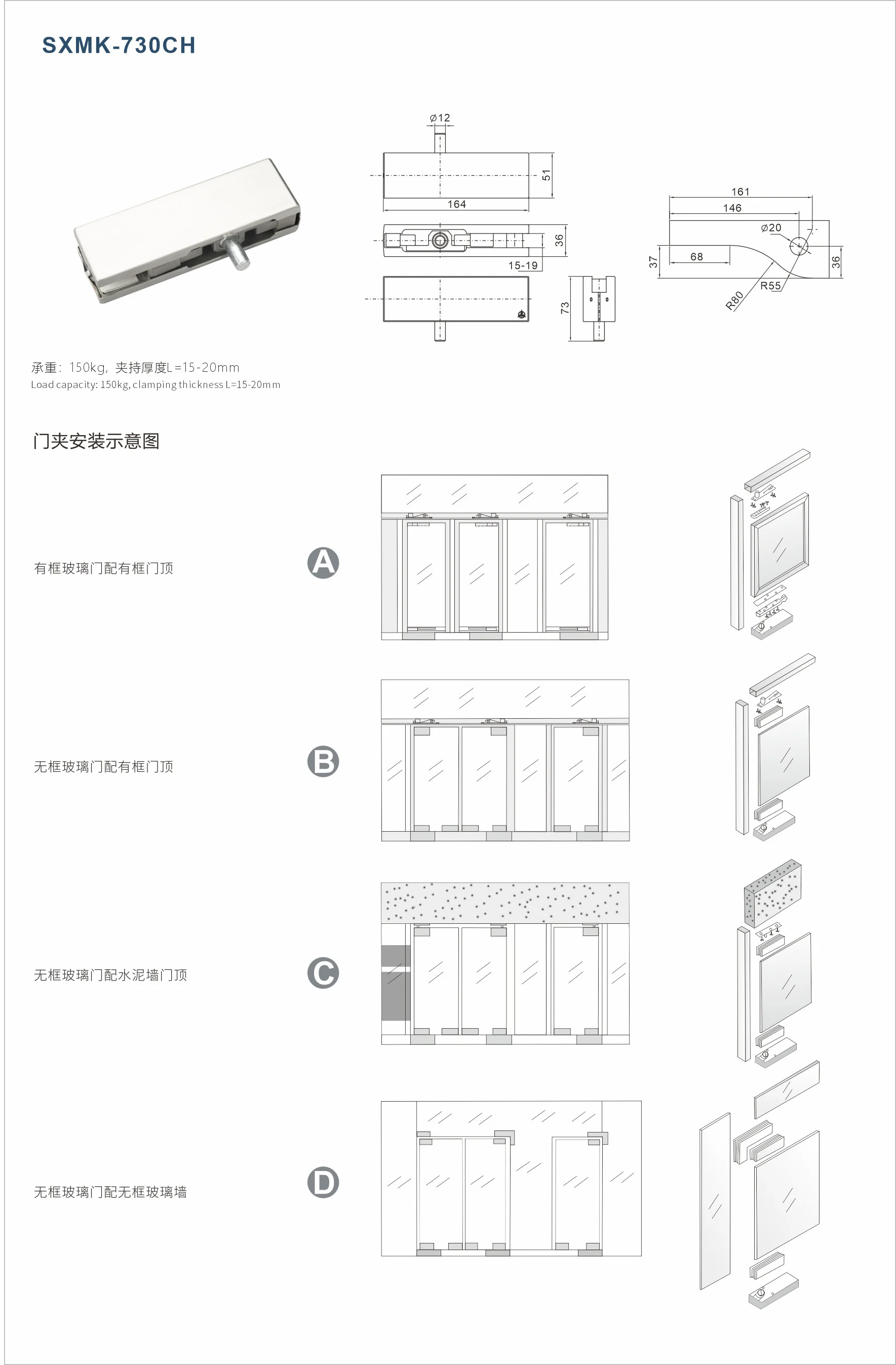

Glass door and door control hardwareTECHNICAL DRAWING
Complete technical drawing
The catalogue product image identifies the model. Complete installation dimensions and project drawings can be reviewed after the door leaf, glass preparation and installation method are confirmed.
SPECIFICATIONS
Specifications
SXMK-730CH 、、。
Model
SXMK-730CH
Product type
Glass door clip
Application
Glass door and door control hardware
Selection reference
Glass thickness, cut-outs and clip position
CONFIGURATION
What to confirm
Use these references to select a compatible SXMK-730CH door-control set.
Door type
State whether the project uses a glass door, framed door or metal door
Leaf size & weight
Provide door leaf width, height and estimated weight
Glass & preparation
Share glass thickness, cut-outs, holes and edge distances where applicable
Installation & quantity
Confirm floor, surface, top or bottom installation and required quantity
REQUEST MATCHING
Match SXMK-730CH to your door project
SXMK-730CH 、，。
- Door type and opening direction
- Leaf size, weight and glass thickness
- Installation method and quantity
