MODEL
SXMK-3009 door bolt for glass doors
A door bolt for securing a glass-door or door-control arrangement. Confirm the bolt position, glass preparation and the mating part.
AT A GLANCE
SXMK-3009 at a glance
Product type
Door boltApplication

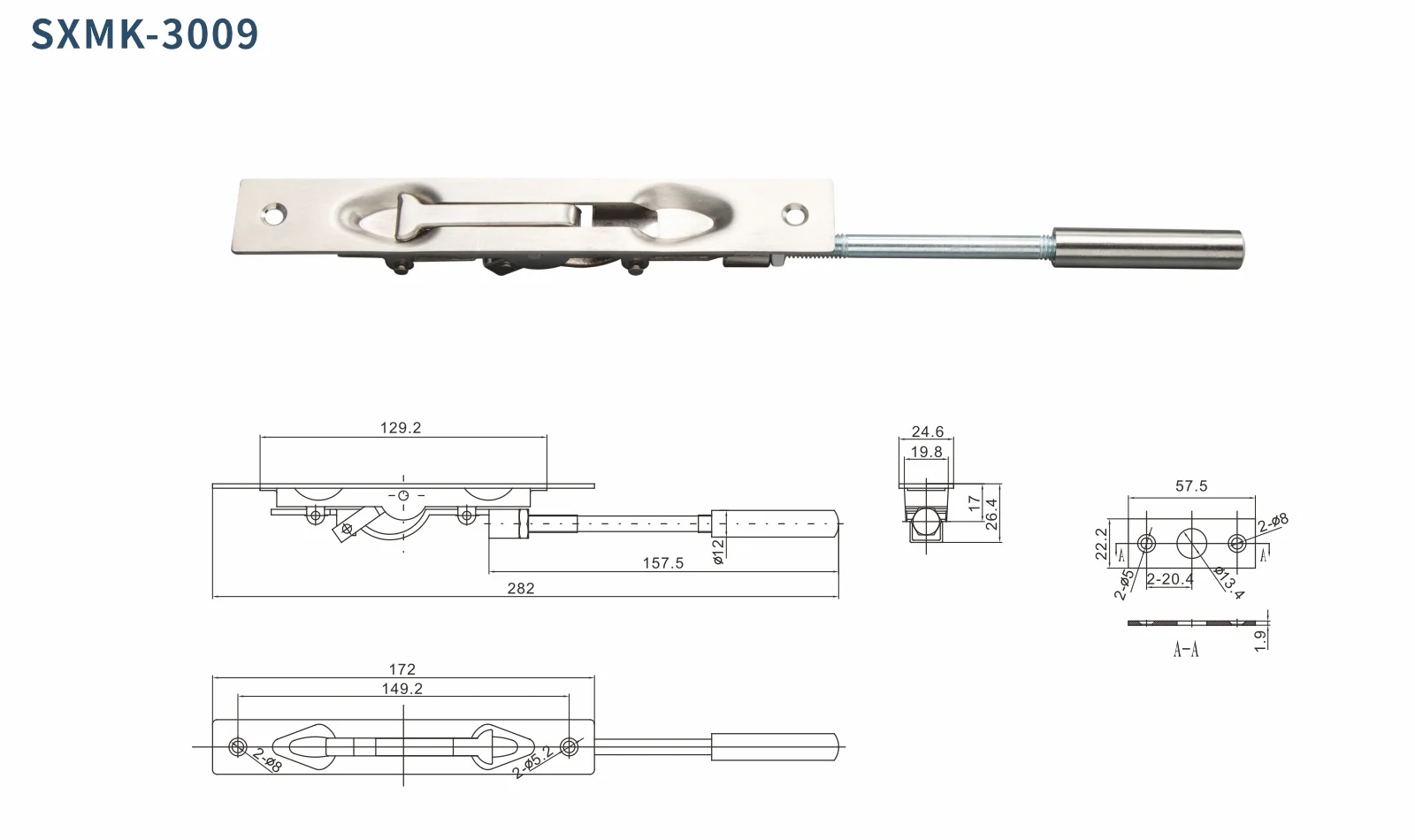

Glass door and door control hardwareTECHNICAL DRAWING
Complete technical drawing
The catalogue product image identifies the model. Complete installation dimensions and project drawings can be reviewed after the door leaf, glass preparation and installation method are confirmed.
SPECIFICATIONS
Specifications
SXMK-3009 、、。
Model
SXMK-3009
Product type
Door bolt
Application
Glass door and door control hardware
Selection reference
Glass or door preparation, bolt position and mating part
CONFIGURATION
What to confirm
Use these references to select a compatible SXMK-3009 door-control set.
Door type
State whether the project uses a glass door, framed door or metal door
Leaf size & weight
Provide door leaf width, height and estimated weight
Glass & preparation
Share glass thickness, cut-outs, holes and edge distances where applicable
Installation & quantity
Confirm floor, surface, top or bottom installation and required quantity
REQUEST MATCHING
Match SXMK-3009 to your door project
SXMK-3009 、，。
- Door type and opening direction
- Leaf size, weight and glass thickness
- Installation method and quantity
